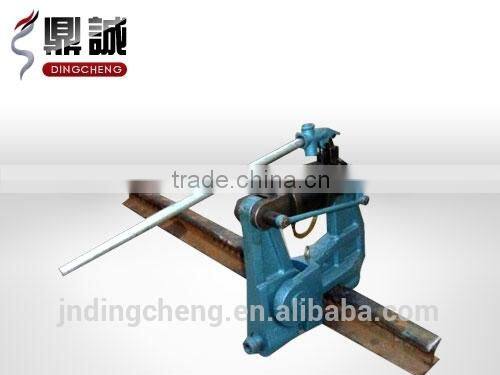

Hydraulic rail hole-extrusion machine (punch machine) is designed by the principle of leverage, hydraulic transmission, and shear. It uses the static pressure to squeeze the hole on the rail and punches one hole in a minute. The machine has reasonable structure, easy to carry, easy operation, good sealing performance of the oil, hydraulic stability, and reduce labor intensity and improve work efficiency, maintenance quality and extend rail service life. It is an essential tool to standardize operations in the railway project.
Name | Hydraulic rail hole drilling machine | ||
Model | KKY-500 | KKY-800(KKY-300) | KKY-1050 |
Rail type | 15-24kg/m | 30kg/m | 30-50kg/m |
Maximum punch diameter | 19-22mm | 22-24mm | 31mm |
Maximum punch thickness | 11mm | 12mm | 15.5mm |
Maximum punch force | 50T | 80T | 105T |
Punch speed | 1 hole/min | 1 hole/min | 1 hole/min |
Weight | 58kg | 65kg | 126kg |
Piston rod tensile length | ≤36mm | ≤ 38mm | ≤ 40mm |

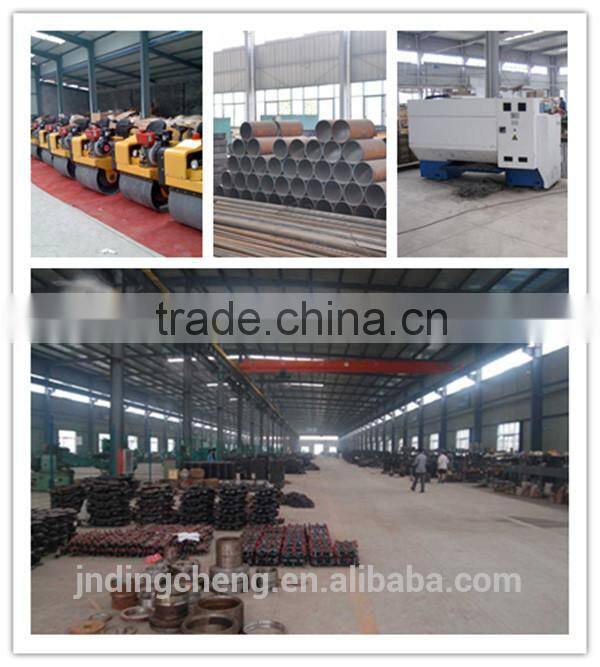

Jining Dingcheng Industrial & Mining Equipment Co., Ltd is specialized in the sales and production of small construction machinery, metal processing and mining equipment. The machines are widely used in coal, petroleum, metallurgy, electric power, chemicals, construction and other industries. Our machines are favored and trusted by lots of clients both in China and worldwide. We export machines to Europe, Africa, Southeast Asia, etc. and get good feedback by our good quality, service and price.
Sincerely welcome the customers worldwide to visit and negotiate business!
