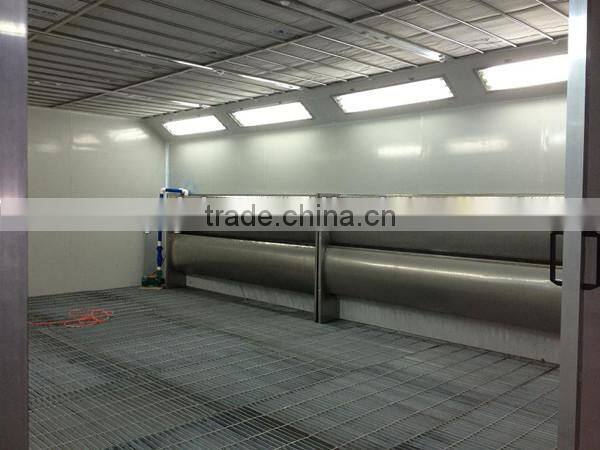

Help CenterCE Approved Custom-made Furniture Spray Paint/Paint Booth With Water Curtain
Related Products
-
Customized Water Curtain Furniture Paint CabinUS$ 12,000 - 15,000MOQ: 1 Set -
QX3000 Custom-made Furniture Dry Spraying BoothUS$ 8,800 - 9,800MOQ: 1 Set
-
Custom-made Furniture Drying Room Booth ManufacturerUS$ 8,800 - 9,800MOQ: 1 Set
-
CE Approval Furniture Water Curtain Based Paint Spray BoothUS$ 8,800 - 9,800MOQ: 1 Set
-
CE Approval Water Screen Customized Furniture Paint BoothUS$ 18,800 - 21,800MOQ: 1 Set
Specifications
1,Furniture paint chamber with CE approval2,High quality,competitive price
3,Good material,high technology
4,Customized
Advantage
fessional furniture paint chamber with own brand
2.CE certificate-high quality,stability,security and easy for installation
3.direct manufacturer,competitive price
4.great sales system
5.custom design funiture drying booth
6.booths received good comments from customers,so far we had sold to Germany,Norway,Nigeria,Egypt,
Saudi Arabia,The United Arab Emirates,Ethiopia,Qatar,Libya,Namibia,Cameroon,Togo,Angola,Morocco,
Tanzania,Seychelles,Sudan,Philippine,Malaysia,Singapore,Australia,Russian Federation etc...
Welcome to contact us at once!0086 135 278 971 98
Parameter
| Paint booth exterior dimension | 10700×5300×3800(mm)(L×W×H) | Paint booth interior dimension | 9600×5200×2500(mm)(L×W×H) |
| Preparation booth interior dimension | 6760×3800×3800(mm)(L×W×H) | Preparation booth interior dimension | 6660×3700×2500(mm)(L×W×H) |
| Drying booth 1 exterior dimenion | 7700×3940×3800(mm)(L×W×H) | Drying booth 1 inteiror dimension | 7600×3840×2500(mm)(L×W×H) |
| Drying booth 2 exterior dimension | 6760×4140×3800(mm)(L×W×H) | Drying booth 2 interior dimension | 6660×4040×2500(mm)(L×W×H) |
| Entrance door | Casement door:2000×2000mm(W×H), 4 sets |
| Wallboard | 50mm EPS(epispastics polystyrene )insulation material with S=0.426 two side steel panel |
| Lighting System | 8 groups*3pcs=24pcs 36w Special FSL lamp |
| Air Circulation | Intake air from upside,downside exhaust wind. |
| Air Intake System | 5 sets environmental air fans,each parameter: YOW5.6m.1.5kw.12500m3/h |
| Air Exhaust System | 3 sets axial air fans,each parameter:YOW4 m. 3kw.18000m3/n |
| Filtration System |
Air inlet with 300primary filter. Room equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles.The Air filtration efficiency is more than or equal to 98,its Exhaust emission reaches the national standard. With three layers of activated carbon filters. |
| Roof | 50mm EPS(epispastics polystyrene )insulation material with S=0.426 two side steel panel |
| Electric Control System | Painting , Temperature Controller, Breakdown Indicator, Power Switch, Emergency Stop Switch, and Time Setting |
| Water curtain environmental system |
Curtain Material:stainless steel Curtain dimension of curtian 2800×1400(mm)(L x H)two layers Water pump quantity:2 set |
| Voltage Frequency | 380V 50HZ |
| Air Flow Speed | Equal or more than 0.25m/s |
| Light Intensity | Equal or more than 1000luxes |
| Total Power | 16kw |
| Remark | Furniture paint booths are all customized,please kindly send your requirements in your inquire. |
| Contact |
Feel free to contact us for more details! TEL:0086 135 278 971 98 ;Skype:claire88855;QQ:2372022669 |
Certificate
Durable Accessories
Classical Structure
Professional Factory
Installation Team
We are professional leading factory in Guangzhou,China.
Specializing in manufacture kinds of paint spray room system.
And also offering full garage equipments,car care equipment.
•Car spray&baking chamber system
•Bus spray&baking chamber system
•Furnitue paint chamber system
•Industrial painting&baking chamber system
•High temperature baking oven system
•Customized spray&bake booth.Offer car spray baking booth accossories
