Newly launched aluminum can soft drink canning machine
- 20 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Cans |
Packaging Material: | Metal, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | Customized | Power: | 4KW | Place of Origin: | Jiangsu, China |
Brand Name: | Yufeng Beverage | Model Number: | BGF | Dimension(L*W*H): | 1800*1000*1500mm |
Weight: | 500kg | Certification: | CE SGS ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Newly launched aluminum can soft drink canning machine
General description
It is suitable for filling and capping carbonated beverage such as beer, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.
Working procedure
Can is pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to capper. Capper will take cap, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can is transferred to conveying system.
Main features
1) Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
2) Cycling tank design with precision polishing inside;
3) High precision and large flow rate filling valves to meet productive requirement;
4) Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
5) Friendly and convenient operating panel with high expansibility.
6) The filling valve is adopts high precision mechanism valve, fast speed filling, high precision liquid level.
7) The filling vat adopts 316L material designed sealing vat, to achieve constant pressure filling.
8) The flow rate of the filling valve>125ml/s.
9) Main transmission adopts toothed belt and gearbox open-type transmission assemblies, high efficiency, low noise.
10) The main drive adopts step-less speed change for frequency conversion, the whole machine adopts PLC control; the capping machine and filling machine adopt coupling joint, to ensure synchronization of two machines.
11) With filling with can, no filling without can.
12) The filling manner is constant pressure filling, with fast filling speed and stable action.
13) Adopting introduce into full set of Switzerland (Ferrum) capping technology.
14) Capping trolley adopts high hardness alloy steel quench(HRC>62), capping curve adopts projection grinder precision machining, to ensure the quality of capping.
15) With capping with can, no capping without can control system, to ensure the normal running of the machine.
16) With CIP automatic rinsing function.
With centralized lubrication system.
MORE PHOTOS FOR REFFERENCE:

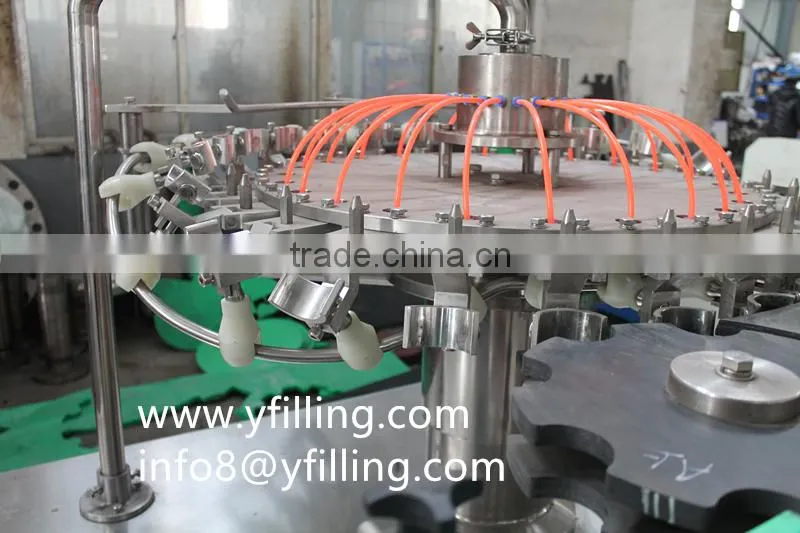

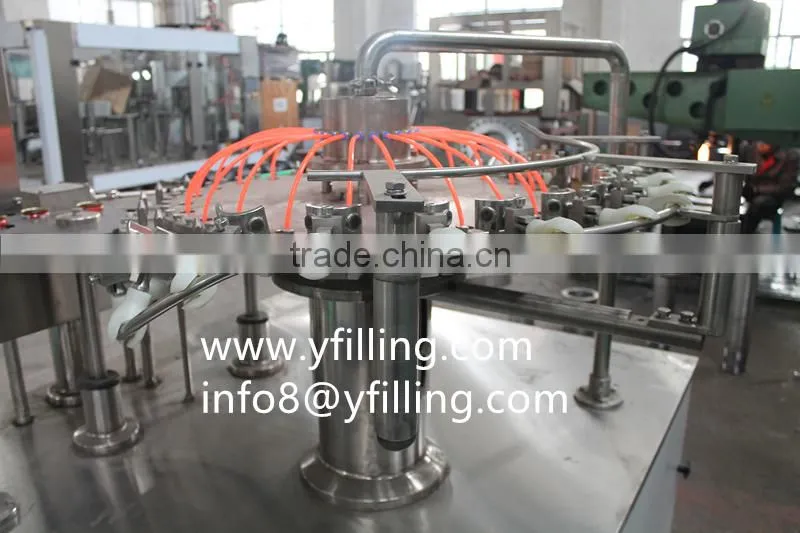

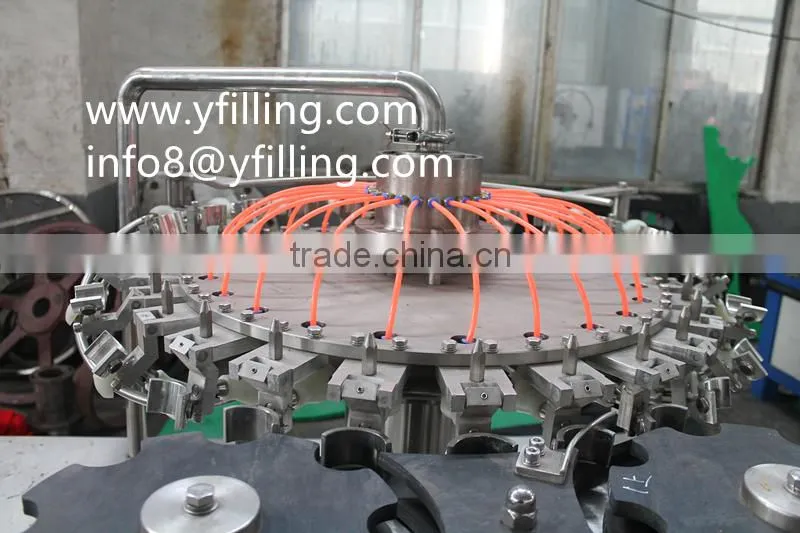

Newly launched aluminum can soft drink canning machine washing part

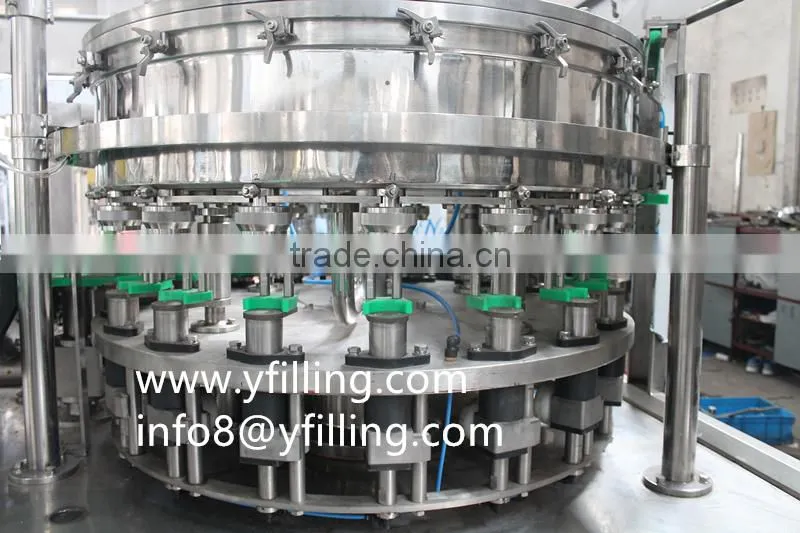

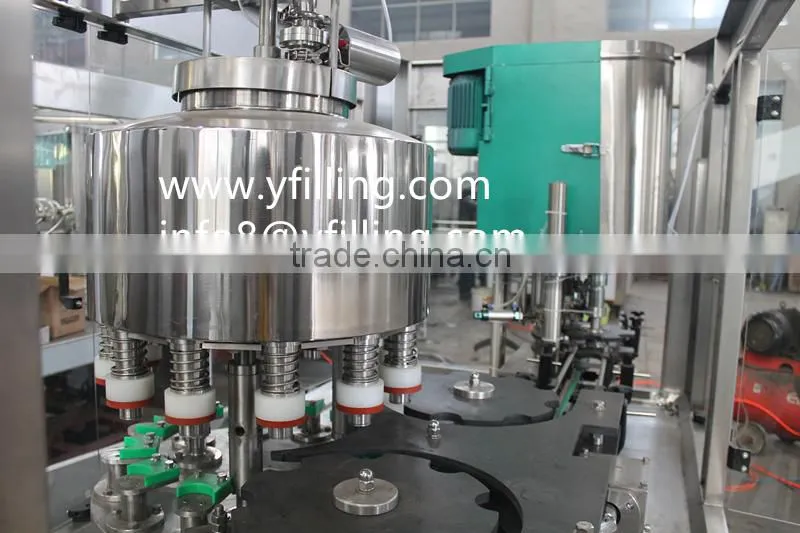

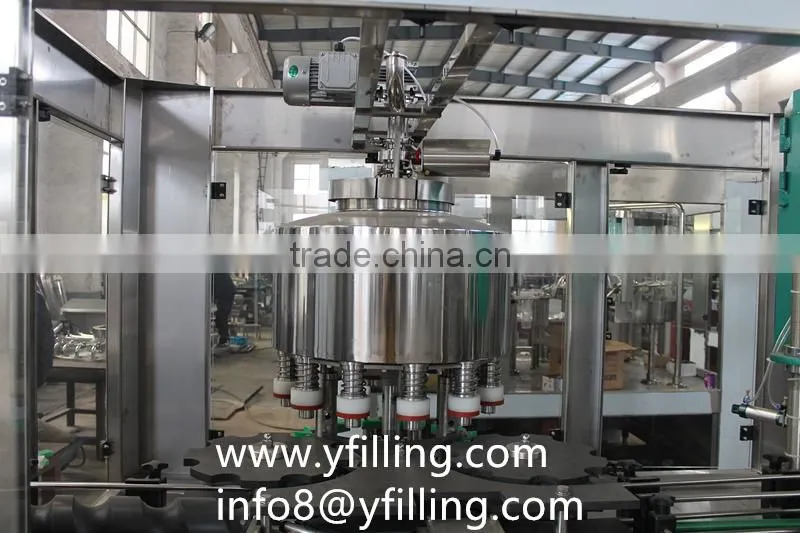

Newly launched aluminum can soft drink canning machine filling part

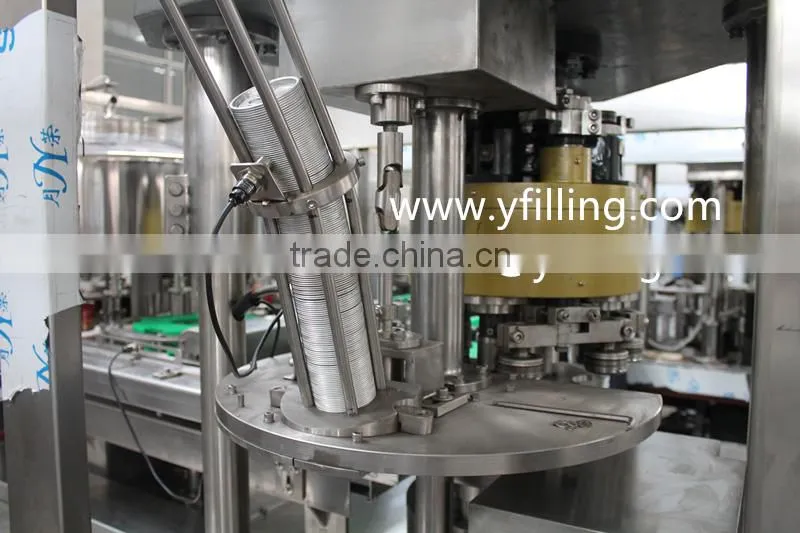

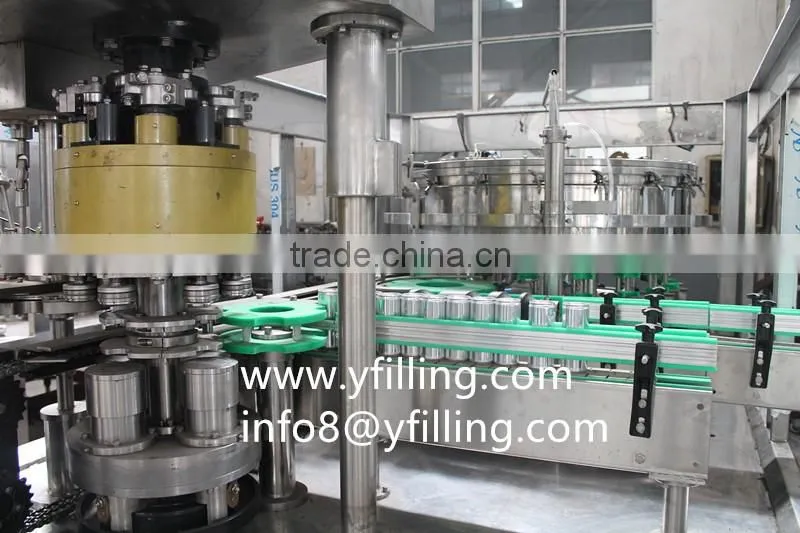

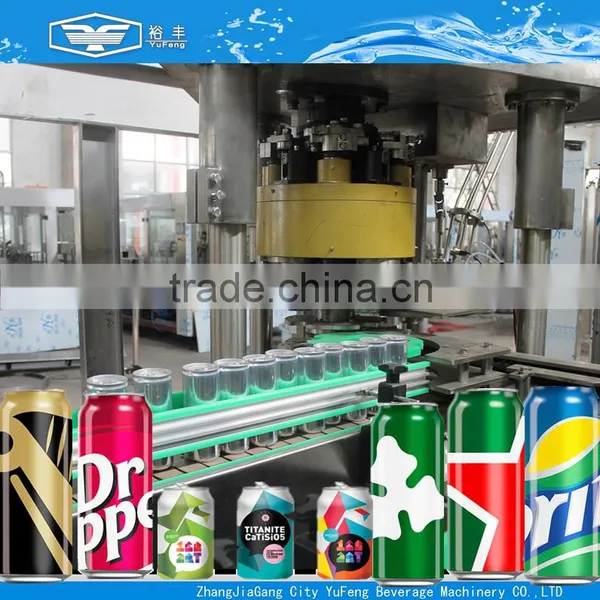

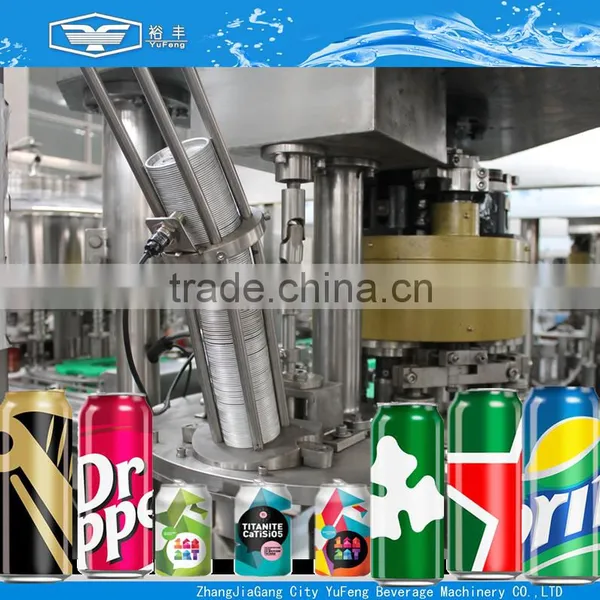

Newly launched aluminum can soft drink canning machine sealing part

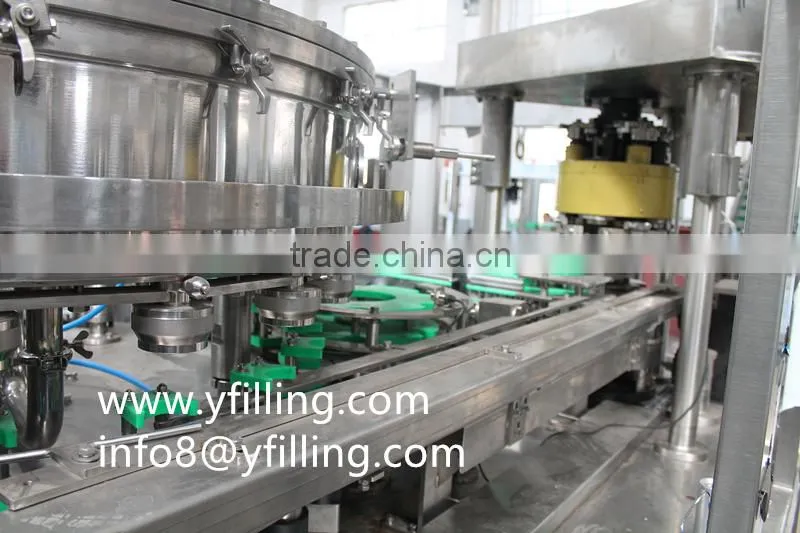

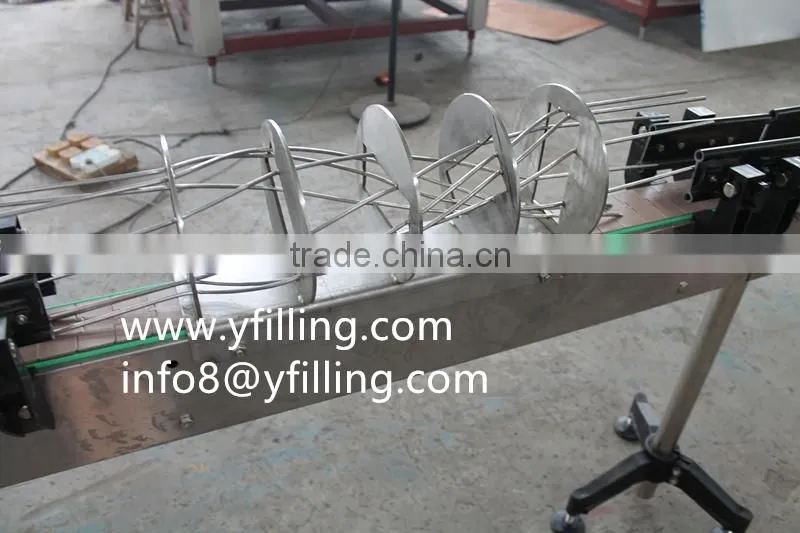

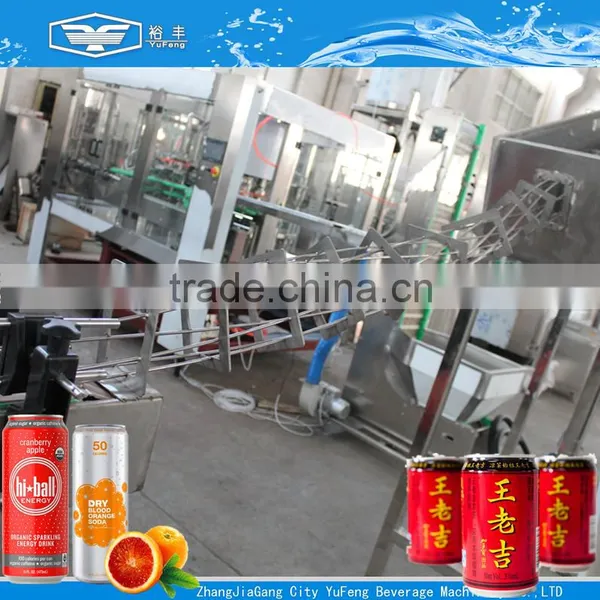

Newly launched aluminum can soft drink canning machine turning over part

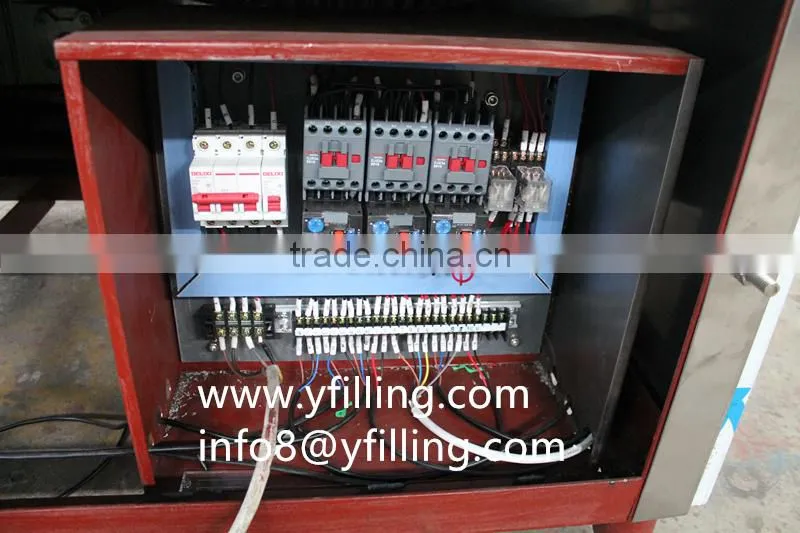

Newly launched aluminum can soft drink canning machine Electrical Part
Contact Ms Muse for more details:
------------------------------------------------------------------
Cellphone:86-18962226721(whatsapp)
Fax: +86-512-58533961 Skype:musejiang
Web:
SAFE BUSINESS | with us, your business in safe & your money in safe |
BEST SERVICE | first impression is of the most important, maybe we don't have the best quality in the world, also maybe we don't have the cheapest price in the world, but we are sure that we have the best services for you |
ATTITUDE | our English may not be the best one in China, and maybe we are not the most smart businessmen in China, but we are sure that we will serve you with honest and heart. |
After you see all these details' photos ,why do you still hesitate not to contact us ?
We have strong after-sales service team for Bottle beer filling line
:1)engineers abroad to install the complete filling line .
:2).We have one year's machine guarantee time, can extend to 18 months
:3)We can help you design the bottles ,also labels, and calculate PE film size.(Becaue we have our own label and PE film making factory )
:4)We have good English translators to communicate with you .
:5)We have client cases in different countries , we can provide their production working video for you .
Our products include: liquid filling machine ( water ,fruit juice/tea ,carbonated drink ,oil ,alcohol, plant protein drink and ect.) Barreled filling line (3-5gallon) Water treatment ,Labeling &packing machine,semi-automatic /full automatic bottle blowing machine .injection molding machine.
Main Products :
1). 2000-32000 bottles per hour water filling line
2). 2000-32000 bottles per hour carbonated filling line
3). 2000-28000 bottles per hour beer filling line
4). 2000-32000 bottles per hour juice filling line
5). 2000-28000 bottles per hour wine filling line
6). 120-1200 bottles per hour for 5 gallon / 3 gallon filling line
7). Bottle Injection and blowing machine .
