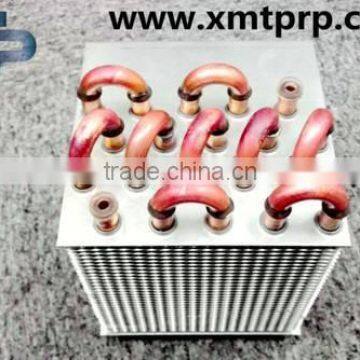

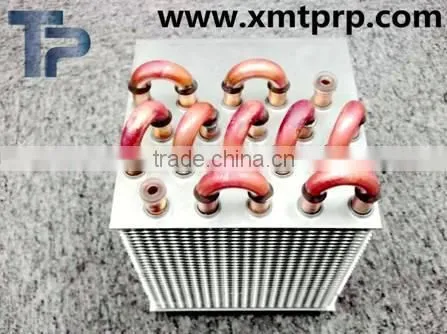

TP copper tube fin type condenser for refrigerator and freezer

 1. Material :copper , aluminum ,galvanized plate
2. Aluminum foil: hydrophilic or bare
3. Fin type: louver fin or flat fin or corrugated fin
4. Copper pipe: diameter 7mm or 9.52mm or 10mm

above ,inner screw thread or smooth tube
5.Pitch of fins can be adjusted between 1.8—5.8mm.
6.Voltage: 220V/1/50HZ and 380V/3/50HZ or other type.

7. Pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
8. Suitable for R134A,R22,R404A,R407C refrigerant and so on

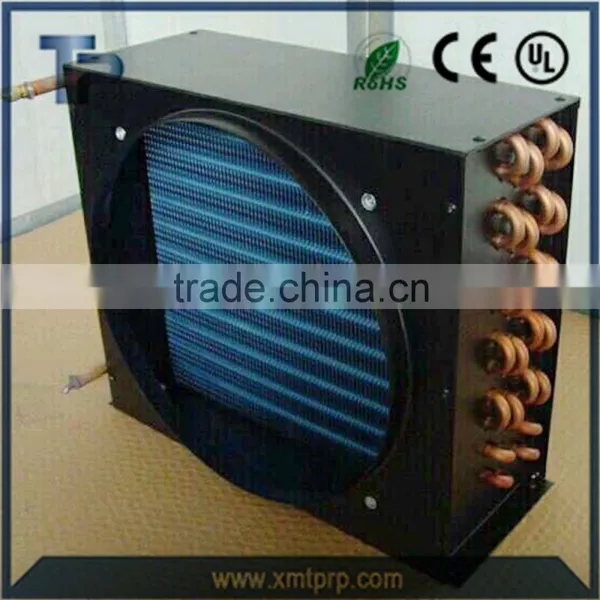

9. Different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.Did gas examination under 3.0Mpa air pressure to ensure the tightness.
