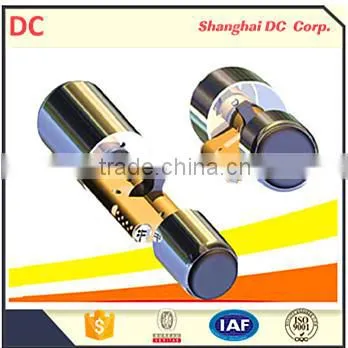

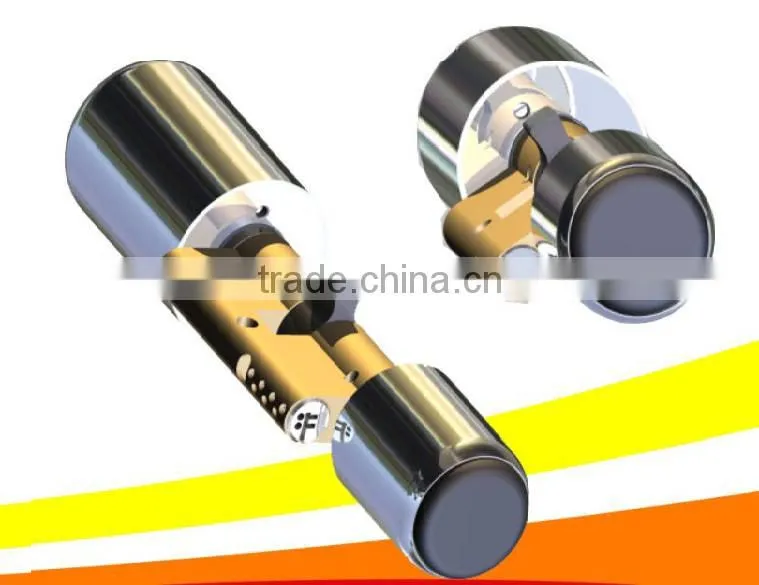

SMART CARD LOCK, INLAY, RFID CARD LOCK KEY CARD LOCK

US$ 10 - 100 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

SCG-307

Shanghai D.C. Corp.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name DC

Model Number SCG-307

Product Description

RFID LOCK

Features:

EN 1303 Euro-Profile Cylinder
Transponder: 13.56M KHz RFID, base on ISO 15693 standard; ( others puon request)
Easy installation, Retrofit to European door

Smart Sleep Mode
Max Users: 14 ones ( others puon request)
Battery life: standby 3 years or 30,000 operations
Acoustic Low Power Warning
Mechanical key for Emergency using
Self registering key-card, no need to operate on computer software
Transponder reading distance: up to 30mm
Application area: commercial office door
Packing list involved: Digital cylinder(QTY: 1 set), RFID card (2 pieces), Emergency key (2 sets), Accompanied tool (1 set), User guide book (1 set)

SPECIFICATIONS:

Working power 3.6V lithium battery, 1/2 AA size
Battery lifetime <20μA
Working Current <40mA
Inductive range 0-5cm
Recognition time <0.5 second
Data Storage Above 10 years
Transponder Base on ISO / IEC 15693 standards
Indication signal Buzz sound
Memory capacity Standard 14 ones, or depends on customer's needs
Temperature range -20^oC ~ 60^oC
Relative Humidity 20% ~ 97% R.H.
Knob Size Inside: 36.5mm (D) X 55mm (L) Outside: 30mm (D) X 38mm(L)
Assembly DIN 28252, EN 1303, Application door thickness should between 38-60mm, 45mm door thickness is the best
Protection class IP42
Materical 304# Stainless Steel, ABS, Copper, etc.
Finish Stainless Steel
Emergency key Mechanical key for Emergency using, the key could be mode style like one key for multi-doors upon customer's required
