20ft 40ft ISO Tank Container for LPG

US$ 31000.00 - 33000.00 MOQ: 1 Set

Key Specifications

Type:

Tank Container

Length (feet):

Other, 40'

Certification:

Other, ISO9001, ISO ,CCC ,ASME etc

CLW Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Type Tank Container

Length (feet) Other, 40'

Certification Other, ISO9001, ISO ,CCC ,ASME etc

Capacity 45000L

External Dimensions(l x W x H)(mm) 12190*2438*2591

Internal Dimensions(l x W x H)(mm) 12032.2352.2698mm

Place of Origin Hubei, China

Brand Name CLW

Model Number clw-ISO 40ft

Product Description

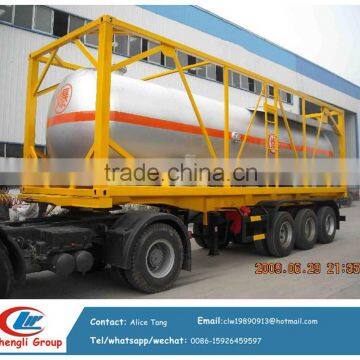

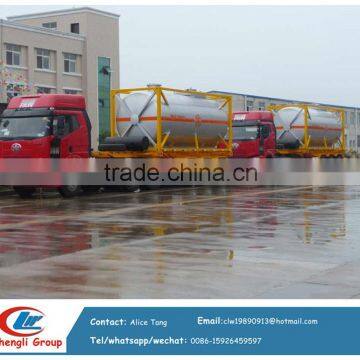

40ft LPG tank container

A. Tank Containers Specification

Specification		40'' Tank Containers
u Outer Dimensions	Length(mm)	12190
	Width(mm)	2438
	Height(mm)	2591
u Transport/Storage materials		LPG(Propane)
u Capacity(m³)		45
u Main tank materials		Q345R
u Prism materials		Q345R
u Tare Weight (kgs)		14100
u Max Fluid Weight(kgs)		18900
u Total Mass(kgs)		33000

B.Tank paramater

u Tank materials	Q345R
u Shell Body	14mm nominal thickness
u Head	16mm
u Tank shap	Round
u Shell Finish	Carbon steel tank: with 1 antirust, 1 base coat and 1 finishing coat. The color can be customized
u Design Temp (℃)	-40 ~55℃
u Design Pressure (Mpa)	1.8 MPa
u Water press test	2.34MPa
u Fluid Density (t/ m³)	420Kg/ m³
u Air-leak test	1.8MPa
u corrosion allowance	1mm

C.Tank Fittings:

u Manhole Cover	φ450mm, which at the front ends (can be customized)
u Safety vlave	1×DN80,Built–in and full lift
u Emergency cutoff valve	2 piece, 1×DN25 ball valve for vapor inlet, 1×DN50 ball valve for liquid inlet
u Liquid lever meter	UQZ-25P
u Thermometer	WSS-412
u Pressure Gauge	YN-1002
u Handing device	DN25,DN50
