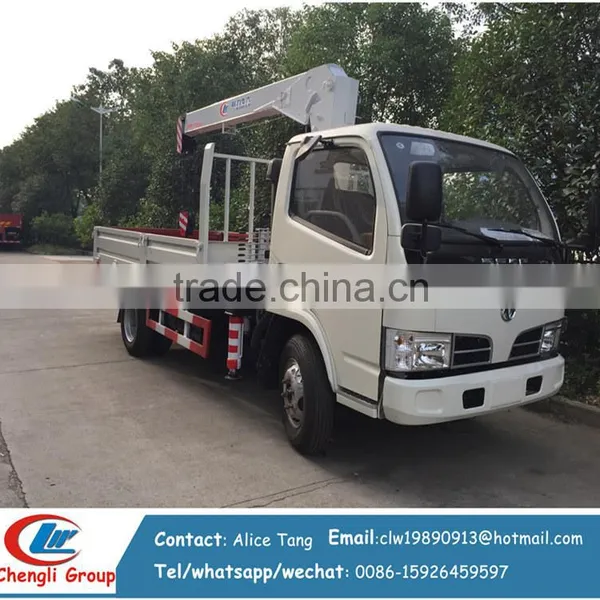

3 Tons Truck Mounted Crane Used is Uzu Crane Truck

US$ 30,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Construction

Rated Loading Capacity:

3200 Kg

CLW Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Construction

Rated Loading Capacity 3200 Kg

Rated Lifting Moment 3T.M

Max. Lifting Load 3200kg

Max. Lifting Height 9.5 m

Span 7.5m

Place of Origin Hubei, China

Brand Name CLW

Model Number CLWCRANE 017

Certification ISO CCC

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

3 tons truck mounted crane used is uzu crane truck

paramater of crane truck

Item	unit			Parameter
Vehicle model				ISUZ U 3 Tons Truck with crane (LHD)
Horse Power	ps			98
Overall dimension	Mm			599521652850
Internal dimension	mm			31502000550
GVW	Kg			5690
Rated loading capacity				3000
Mass in working order				2690
Wheel base				3360
F/R track base				1385/1425
Approach/departure angle				24/14
Exhaust/Hp	ml/ps			2771/98
Max speed	Km/h			90
Tire specification	7.00-15			Engine type					4JB1CN
Traction system	4*2			transmission					5-speed
Number of axles	2			Electric system					24v
Operation control system	Electrically hydraulic control			Allowable passengers in cab					2
Equipment	1.Crane can be selected 2.Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube;24°tie-in.
Crane(XCMG Brand)	Number of sections					2
	Max working radius					7.5m
	Max lifting height					9.5m
	Max lifting weight					3200Kg
Working radius (m)	2.1	3.0			4.0		5.5			7.0
Loading weight(Kg)	3200	1800			1420		950			530
Turing scope	360°		Self-load of crane					850Kg
Hydraulic pressure	20mpa		Tank volume					30L
Engine	diesel engine,4JB1CN ,98hp
Production cycle	30 workdays
