NEMA17 Stepper Motor bipolar 4 leads 34mm 12V 0.4A 26Ncm
Welcome to visit our website to find more products!
Nema17/42HS Stepper motor Features:
Stepper motor is widely used in office automation, printing machine, packing machine, medical equipment, textile machinery, factory automation, robot, automotive etc.
Nema17/42HS Stepper motor Specification:
| Item | Specifications | |||
| Step Angle | 1.8 degree | |||
| Temperature Rise | 80 ℃Max | |||
| Ambient Temperature | -20 ℃ Max+50 ℃ | |||
| Insulation Resistance | 100M Ω Min., 500VDC | |||
| Dielectric Strength | 500VAC for one minute | |||
| Shaft Radial Play | 0.02Max (450g-load) | |||
| Shaft Axial Play | 0.08Max (450g-load) | |||
| Max Radial Force | 75N(20mm from th flange) | |||
| Max Axial Force | 10N | |||
| Model No | No of Phase | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (kg.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wire Number | Motor Weight (kg) |
| 42HS29-0804 | 2 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 25 | 29 | 4 | 0.16 |
| 42HS34-0404 | 2 | 12 | 0.4 | 30 | 35 | 3.2 | 34 | 34 | 4 | 0.22 |
| 42HS48-0404 | 2 | 12 | 0.4 | 30 | 45 | 4.5 | 68 | 48 | 4 | 0.28 |
| 42HS52-1504 | 2 | 4.5 | 1.5 | 3 | 7 | 6.8 | 95 | 52 | 4 | 0.45 |
| 42HS60-1504 | 2 | 3.8 | 1.5 | 3 | 6 | 7 | 95 | 60 | 4 | 0.55 |

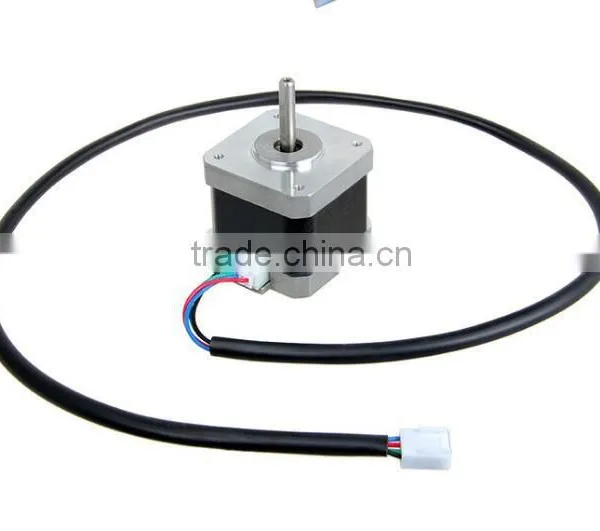

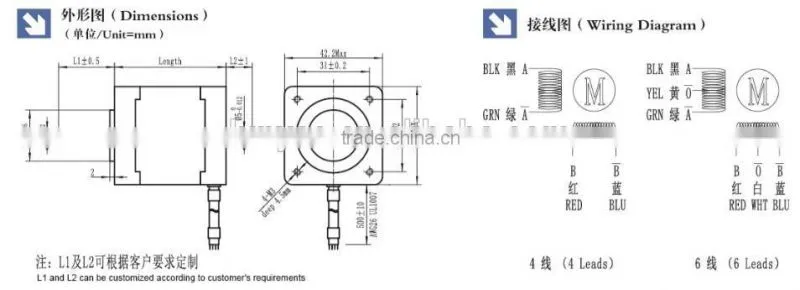

Nema17/42HS Stepper motor Pictures:
Nema17/42HS Stepper motor Usage:
Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
Lunyee Company Information:
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.
Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!
Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
