1Hp Servo System For Water Jet Loom, Air Jet Loom And Rapier Looms
ETU/ELO For Benefit of Weaving
1,imrove Cloth Quality;
2,Enhance The Weaving Production;
3,Simplify Operation&Maintenance Procedures;
4,To Maximize Investment Return.
SL311 ETU/ELO² Datasheet
- It is suitable for batch winder system of loom.
- HumanizedHMI is convenient for parameter setting and fast in real-time parameter monitoring.
- Real-time tension control makes batching tension more stable and accurate, quick protection for abnormal tension is available.
- It can initiatively stop loom and display fault type when there is something wrong, ensuring safe use and quick diagnosis.
- It can incorporate with ETU & ELO system or be used solely.
| Parts | Main Parameters |

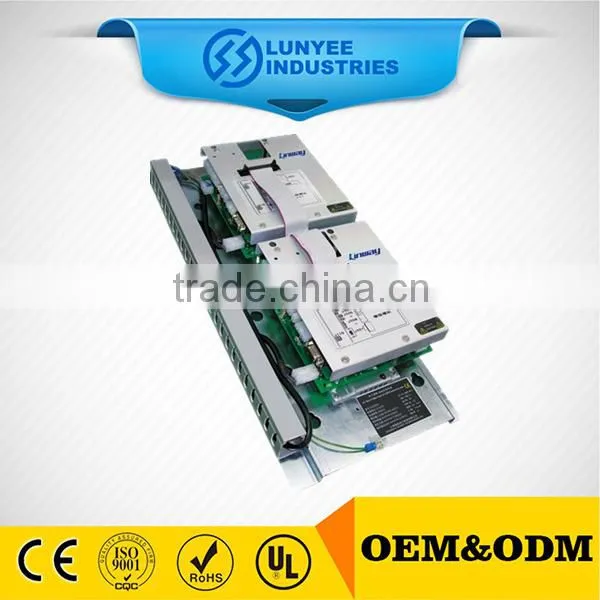

| Servo Driver For External ETU | Power Supply:AC220V 50/60HZ;Rated Output Power:0.75KW |
| Servo Driver For External ETU | Rated Torque:AC220V;Rated Current:2.05A;Rated Torque:2.4Nm;Maximum Torque:7.2Nm;Rated Speed:3000rpm |

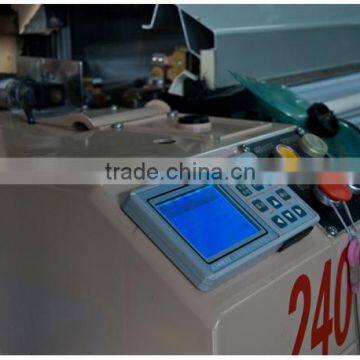

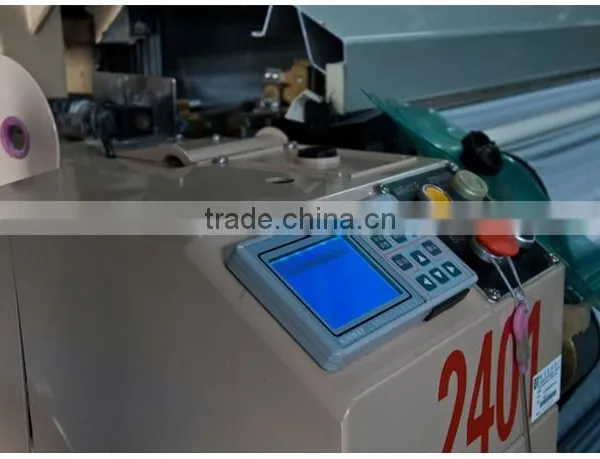

| HMI | 3.8-inch LED in Chinese&English;485 communication interface;display weaving tension and alarm message in real time |

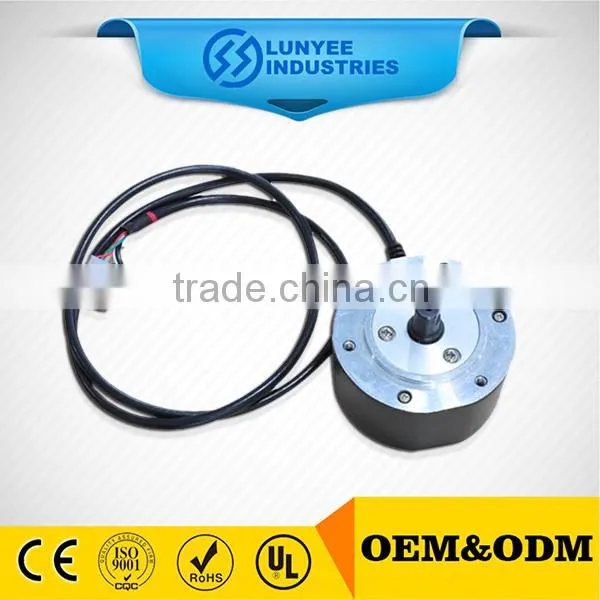

| Spindle Encoder | Power Supply:DC5V,720ppr |

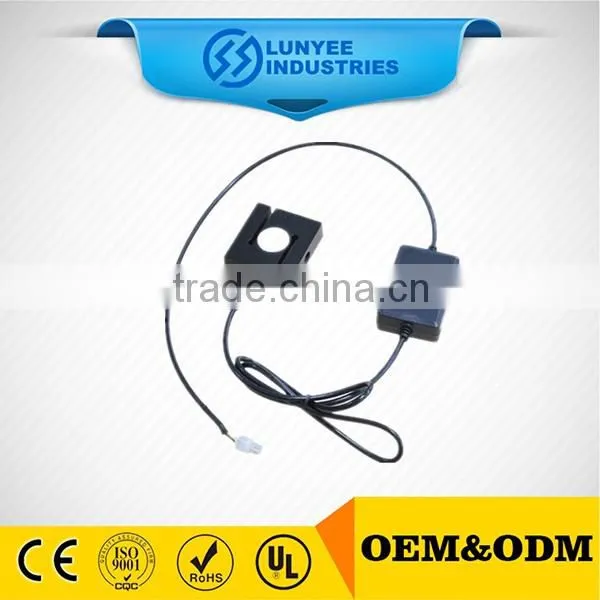

| Tension Sensor | Input power:DC24V;Output:0.0~5.0V;Range:100kg;300kg;500kg;1000kg;Can be Customized |

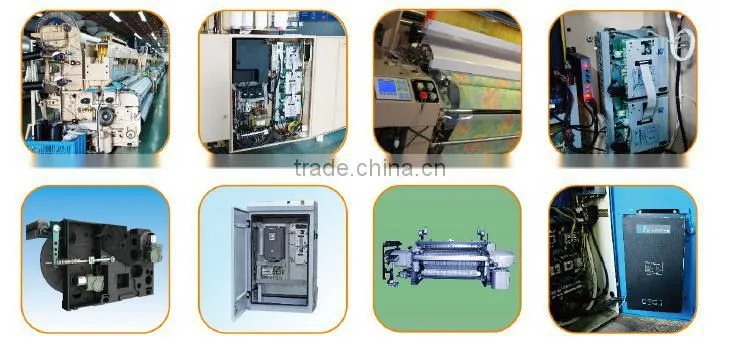

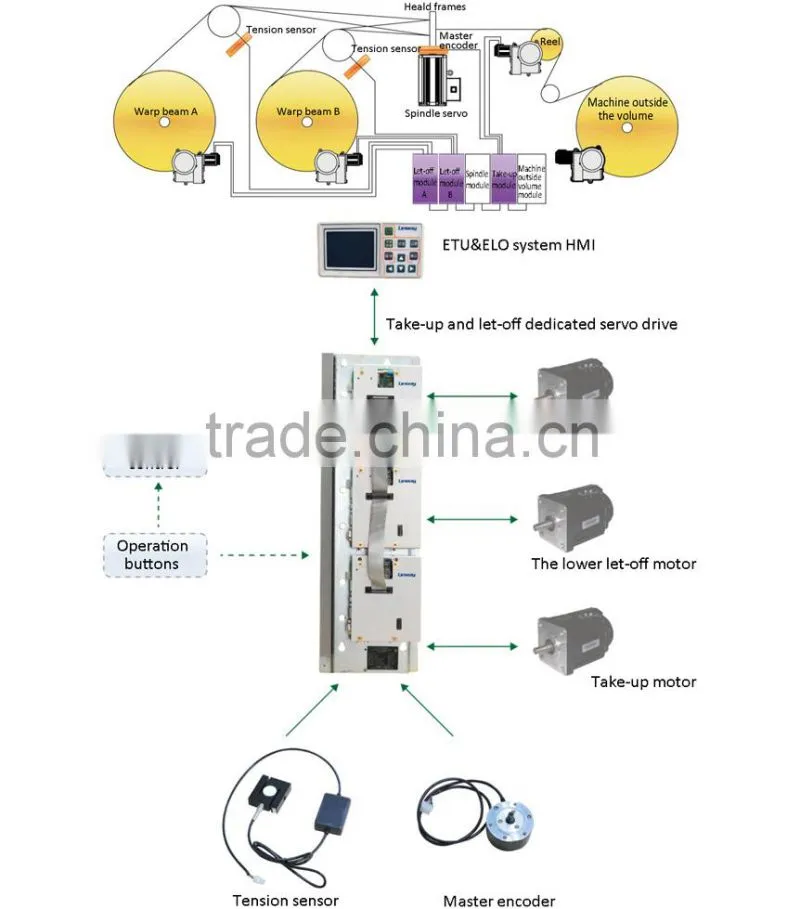

SL311 external ETU system of loom can replace a conventional loom batch winder by servo system, and achieves real-time tension control to make batching tension more stable and accurate. It is available for incorporation with ETU and ELO systems or exclusive use, and is extensively applicable in water-jet loom, air-jet loom and rapier loom, so it is an upgrading product for shuttleless loom.
1,Dedicated Servo System Integrates Into Tension Control,Parameter Setting,Compensation,Fault Diagnosis.
2,Servo Driver Control Position Directly,Greatly Improving The Accuracy of The Feeding Weft.
3,ETU&ELO Can be Widely Adapted All Kinds Of Loom's Controller,Including The Old Loom Retrofit.
4,Application To A Variety Of Water-jet Loom,Air-jet Loom And Rapier Loom.
You may be also interested in other of our products! For more details please visit us at
http://lunyee.en.china.cn
pls feel free to inform us your request power,voltage,speed, torque,qty and other informations to get our price and leading time!
