Quite Similar To Panasonic Invt DA200 Ethercat Servo Set

Quite Similar To Panasonic Invt DA200 Ethercat Servo Set thumbnail-1
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set thumbnail-2
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set thumbnail-3
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set thumbnail-4
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set thumbnail-5
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set thumbnail-6
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set photo-1
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set photo-2
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set photo-3
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set photo-4
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set photo-5
Quite Similar To Panasonic Invt DA200 Ethercat Servo Set photo-6
US$ 287.5 - 1,123.7 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
invt lunyee
Model Number:
DA200 series
Type:
Other, Servo Motor, servo motores
Contact Supplier Request Quote Chat Now
Chengdu Lunyee Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo shenzhen hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name invt lunyee
Model Number DA200 series
Type Other, Servo Motor, servo motores
Frequency 50Hz
Output Power 0.2~5.5kW
Protect Feature Totally Enclosed
Phase Three-phase
Certification CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO9001
AC Voltage Other, 220V/400V
Place of Origin Shanghai, China
Efficiency IE 2

Quite Similar To Panasonic Invt DA200 Ethercat Servo Set



Product Description



DA200 Series is newest product by our team,All performance boost highly; functionality for a variety of strong demand;easy to use;

high reliability and environmental adaptability; in the field of servo control it is in the domestic first-class level,

and in some technology and application level with the challenges of global giants strength.



Quite Similar To Panasonic Invt DA200 Ethercat Servo Set



Specification

Voltage level Power   Servo drive Servo motor
220V   200W              SV-ML06-0R2-2-                      SV-DA200-0R2-2-
400W SV-ML06-0R4-2-  SV-DA200-0R4-2-
750W SV-ML06-0R7-2-  SV-DA200-0R7-2-
1.0kW SV-ML08-1R0F-2- SV-DA200-0R7-2-
850W SV-MH13-0R8B-2-  SV-DA200-1R0-2-
1.0KW SV-MM13-1R0E-2-  SV-DA200-1R0-2-
1.0KW SV-MM13-1R0F-2-  SV-DA200-1R0-2-
1.3kW SV-MH13-1R3B-2-  SV-DA200-2R0-2-
1.5kW SV-MM13-1R5E-2-  SV-DA200-1R5-2-
1.5KW SV-MM13-1R5F-2-  SV-DA200-1R5-2-
2.0KW SV-MM13-2R0E-2-  SV-DA200-2R0-2-
2.0KW SV-MM13-2R0F-2-  SV-DA200-2R0-2-
3.0KW SV-MM13-3R0B-2-  SV-DA200-3R0-2-
4.4KW SV-MM13-4R4B-2-  SV-DA200-4R4-2-
400V 850W SV-MH13-0R8B-4-  SV-DA200-1R0-4-
1.0KW SV-MM13-1R0E-4- SV-DA200-1R0-4-
1.3kW SV-MH13-1R3B-4-  SV-DA200-2R0-4-
1.5kW SV-MM13-1R5E-4-  SV-DA200-1R5-4-
2.0kW SV-MM13-2R0E-4-  SV-DA200-2R0-4-
3.0kW SV-MM18-3R0B-4-  SV-DA200-3R0-4-
4.4KW SV-MM18-4R4B-4-  SV-DA200-4R4-4-
5.5kW SV-MM18-5R5B-4-  SV-DA200-5R5-4-



Powerful PC software



Quite Similar To Panasonic Invt DA200 Ethercat Servo Set



Quite Similar To Panasonic Invt DA200 Ethercat Servo Set

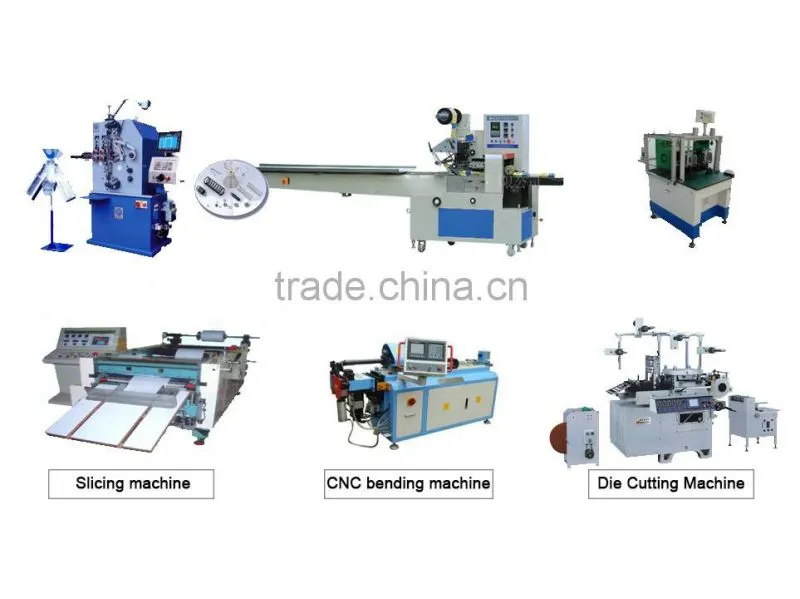

Applications



1) Electronics Manufacturing Equipment: winding machine, stripping machine, battery manufacturing equipment, LED manufacturing equipment, dispenser, plug-ins, etc.;

2) CNC Equipment: EDM, wire cutting, CNC lathe, milling machine, deep hole drilling, bending machine, spring machine, etc.;

3) Packaging Machinery: bag making machine, sealing machine, blister packing machine, pillow packing machine, labeling machine, etc.;

4) Printing Machinery: screen printing, adhesive label printing machine, paper cutting machine, cutting machine, hot stamping machine, folding machine, etc.;

5) Textile Machinery: computerized flat knitting machines, embroidery machines, air-jet looms, water jet looms, rapier looms, warp knitting machines;

6) Plastics Machinery: unloading robots, automatic blow molding machines;

7) Other: glass equipment, hoop bending machines, test equipment.

Quite Similar To Panasonic Invt DA200 Ethercat Servo Set

Packaging & Shipping

 Quite Similar To Panasonic Invt DA200 Ethercat Servo Set



 Quite Similar To Panasonic Invt DA200 Ethercat Servo Set

R&D QC



Quite Similar To Panasonic Invt DA200 Ethercat Servo SetQuite Similar To Panasonic Invt DA200 Ethercat Servo SetQuite Similar To Panasonic Invt DA200 Ethercat Servo Set





Company Information







We, Chengdu Lunyee Industries Development Co., Ltd.,are a leading manufacturer for factory automation(FA) products!

1,transmission products: AC and DC(brush/brushless) gear motor
2,highprecision planetary gearbox(spur/helical gear),servo motor and stepping motor

3,linear bushing,linear guide,ball screw,locking nut and coupling and so on!



Quite Similar To Panasonic Invt DA200 Ethercat Servo Set



You may be also interested in other of our products! For more details please visit us at

https://img13.fr-trading.com





pls feel free to inform us your request power,voltage,speed, torque,qty and other informations to get our price and leading time!

 Quite Similar To Panasonic Invt DA200 Ethercat Servo Set
