Feature
1. Small size multi-function mini computer, using Intel's fourth generation Haswell architecture Pentium and core 2 quad core processor, based on 22 nanometer manufacturing process, low calorific value
2. Small power consumption, integration of the fourth generation of core graphics support hardware accelerated, 4K decoding, graphics can enhance the leap

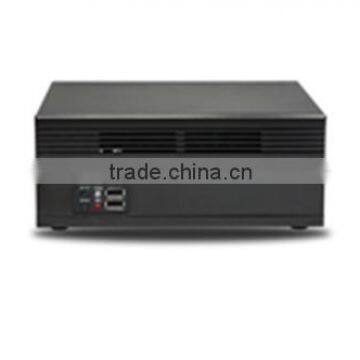

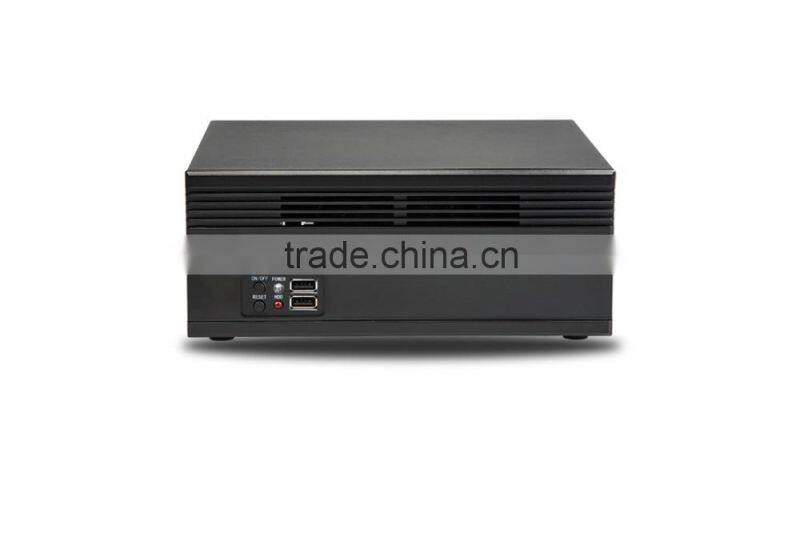

3. 1mm galvanized steel sheet, black aluminum panel, the front panel air intake fence design, abandon the traditional top cover into the wind window hole, the appearance is clean, more beautiful.

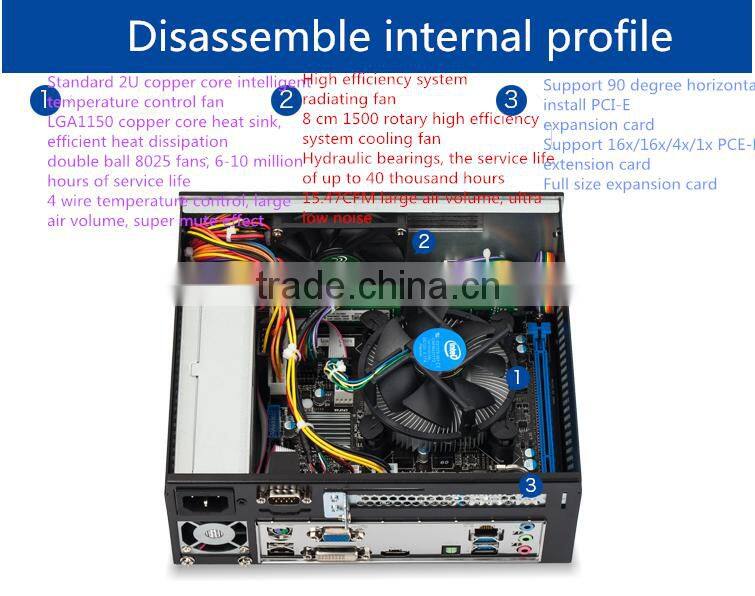

4. Air intake window, which is built in 8015 system auxiliary fan, greatly reducing the intake of air dust, enhance the heat dissipation performance, the system is more stable operation
| Specifition | ||
| Configuration Parameter | CPU | LGA 1150 For Intel Core i3/i5/i7 /Pentium /Celeron Processors ( less than or equal to 84W) |
System Memory |
Intel H81 / B85 Express | |
| Storage | 2G/4G DDR3 fast speed syster memory ( Optional upgrade to 8G/16G ) | |
| Display | Integrate Intel HD Graphics card | |
| Audio | Integrate Realtek ALC 6x / 8x series audio chip, support High Defintion Audio | |
| Network | Integrate 1 RTL 8111 gigable network chip | |

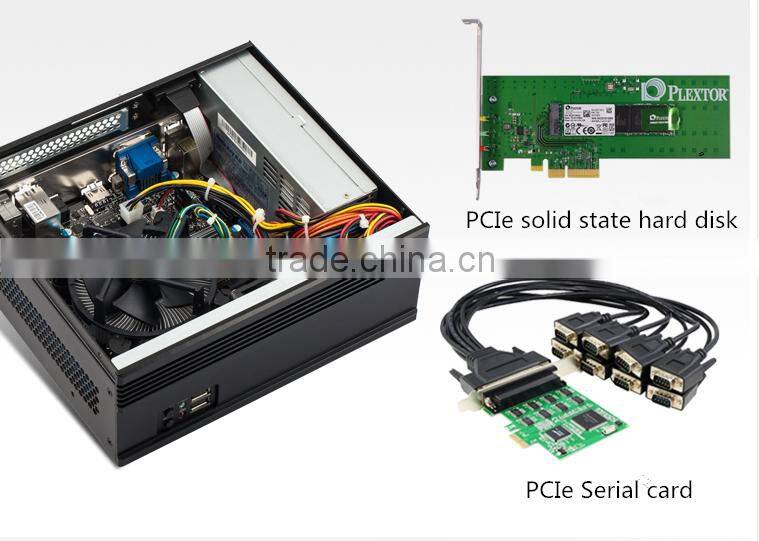

| Wireless Network | null ( PCI-E expansion built-in unlimited network card optional ) | |
| Power Supply | Input180-264V 50Hz/60Hz; 150W/250W/300W small 1U industrial power supply optional | |
| Basic Parameter | Resolution | 800 x 600 and above, support 1920 x 1080 full HD resolution |
| Dimensions | 21 x 8.9 x22.5cm ( Excluding rack, Excluding rack ) | |
| Color | Black | |
| Weight | Net weight: 3.5kg Gross weight: 4kg | |
| Material |
1mm high strength galvanized steel sheet, surface black matte painting process Hidden type air inlet black anodized aluminum panel Steel aluminum hybrid structure, dust and rust, good impact resistance, seismic resistance, strong and durable |
|
| Operating Temperature | 0°C ~ 50°C; 5% ~ 90% ( non-condensing ) |
|
| Storage Temperature | -20°C ~ 60°C; 5% ~ 90% ( non-condensing ) |
|
| Operating Systerm | Simplified Chinese, traditional Chinese, English Windows XP, Windows 2003, Windows 7, Linux system and other operating platform | |
| Warranty Policy | According to the national policy of three packs, the whole machine to enjoy 3 years of free warranty | |

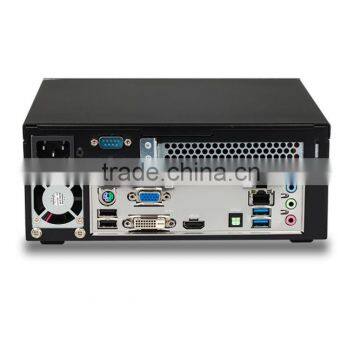

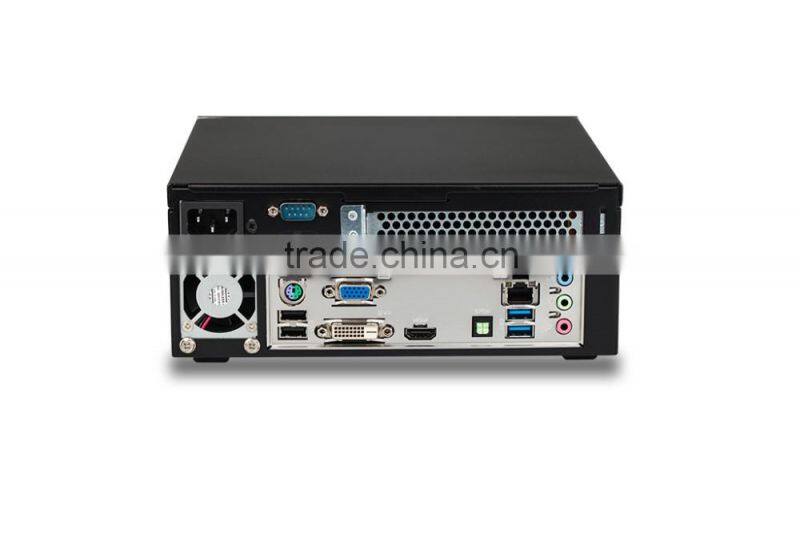

| I/O Interface | 4 x USB2.0 ( 2 USBs is in the front, 2 USBs is in the behind ) | |
| 2 x USB3.0 ( 2 USBs is in the behind ) | ||
| 1 x RJ 45 network card interface ( According to the selection board could choose to support dual network mini-ITX motherboard ) | ||
| 1 x VGA ( According to the selection board could choose to support DVI, VGA motherboard with Multiple display interface ) | ||
| 9 x HDM | ||
| 1 X Audio input interface and output interface ( According to the selection board could choose to support more I/O interface ) | ||
Package
S210 Pentium series
CPU: 4th generation Pentium dual G3250, 2.8G
Heat dissipator: Intel original double ball pure aluminum temperature control fan

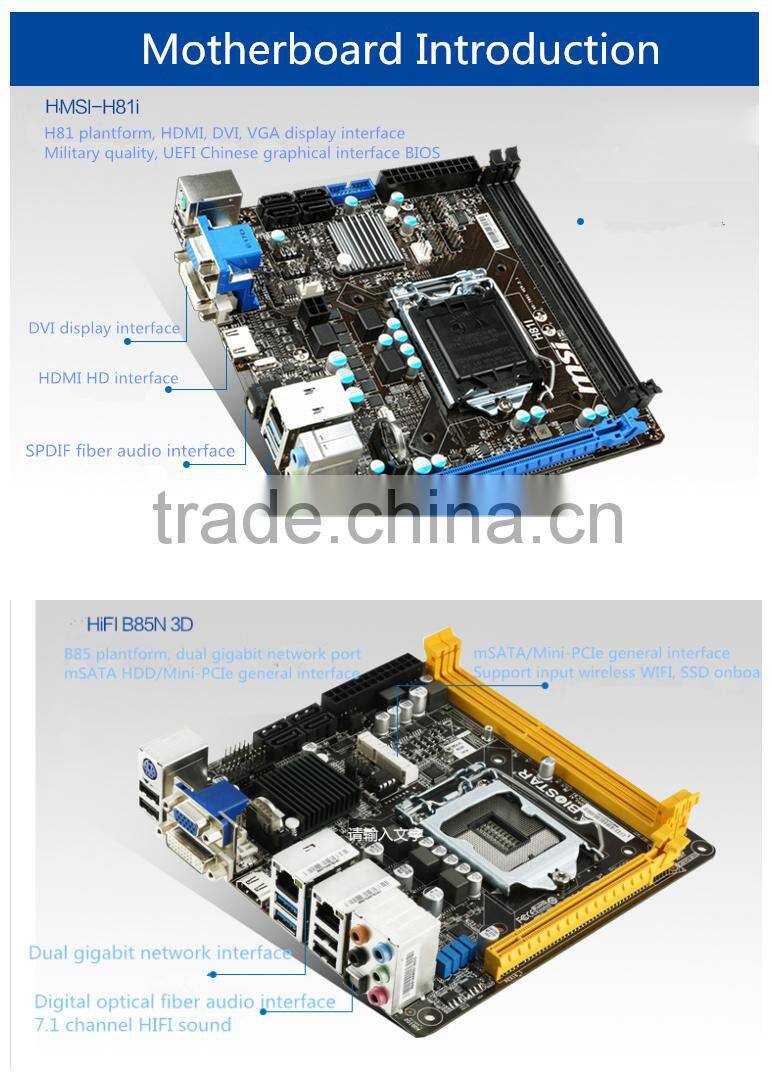

Motherboard: MSI H81i
Graphic card: Intel HD Graphics 4400
RAM: Kingston 4G DDR3 1600
HDD: Hitachi 2.5 inch 500G 7200pin
Chassis: 2U not standard embedded ITX industrial chassis
Power supply: Rong Yuda 200 Watts, small 1U silent industrial power

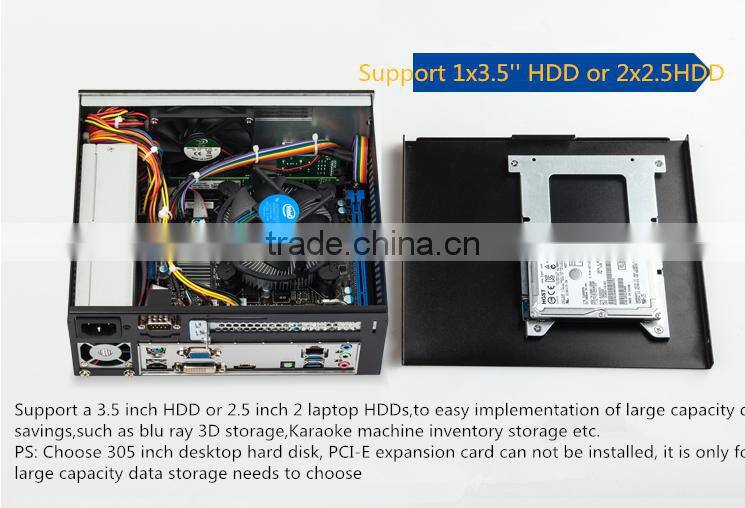

Suitable for less demanding on the performance of intelligent business system terminal, industrial control terminal, optional SSD hard drives or 3.5 inch hard disk
S210 i3 standard version
CPU: 4th generation Intel i3-4160, 3.6G
Heat dissipator: Intel original double ball copper core temperature control fan
Motherboard: MSI H81i
Graphic card: Intel HD Graphics 4400
RAM: Kingston 4G DDR3 1600
HDD: Hitachi 2.5 inch 500G 7200pin
Chassis: 2U not standard embedded ITX industrial chassis
Power supply: Yi Heng 150 Watts, small 1U silent industrial power
Desktop core I3 platform, performance spike in mobile, low-power version of the Intel Core I3 / i5, suitable for small workstation and terminal of intelligent business system, depending on the screen capture, image and audio data acquisition and Industry Office
S210 i3 Function version
CPU: 4th generation Intel i3-4160, 3.6G
Heat dissipator: Intel original double ball copper core temperature control fan
Motherboard: HiFi B85N 3D
Graphic card: Intel HD Graphics 4600
RAM: Kingston 4G DDR3 1600
HDD: Hitachi 2.5 inch 500G 7200pin
Chassis: 2U not standard embedded ITX industrial chassis
Power supply: Yi Heng 150 Watts, small 1U silent industrial power

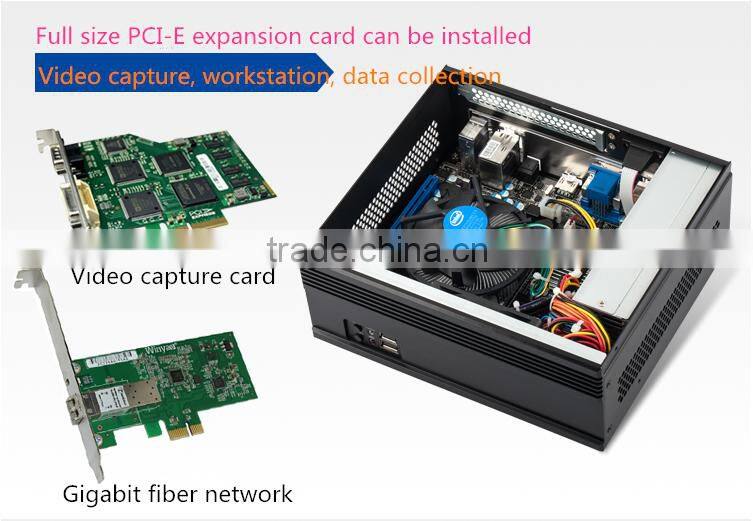

B82 platform dual port. MSATA/Mini-PCIe general purpose interface, suitable for small networks of workstations, intelligent terminal system operation, depending on the screen capture, image and audio data acquisition and Industry Office
S210 i3 Enhanced version
CPU: 4th generation Intel i5-4460, 3.2G
Heat dissipator: Intel original double ball copper core temperature control fan
Motherboard: MSI H81i
Graphic card: Intel HD Graphics 4600
RAM: Kingston 4G DDR3 1600
HDD: Hitachi 2.5 inch 500G 7200pin
Chassis: 2U not standard embedded ITX industrial chassis
Power supply: Yi Heng 250 Watts, small 1U silent industrial power
The core 4 generation i5 processor, collocation line MSI motherboard, overall performance than I3 further improved and more robust performance. Suitable for high computing requirements of small equipment needs

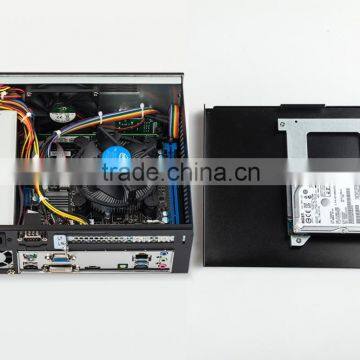

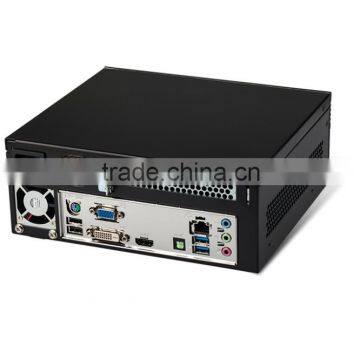

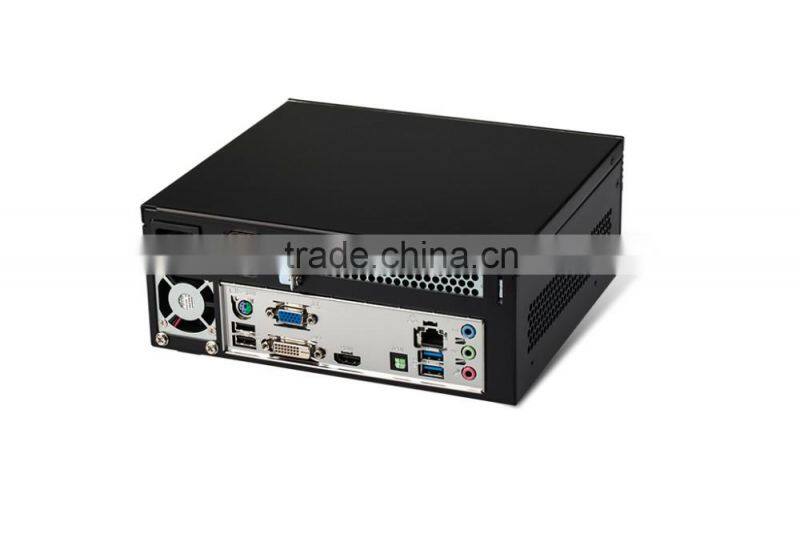

Pictures--S210
Basic Information
Business Type: Manufacturer, Trading Company
Main Products: Embedded Computers, HTPC, BOX PC, all-in-ones, industrial motherboard, industrial CPU, induatrial full-size CPU card, industrial half-size short card, industrial panel PC, industrial chassis and so on
Trade & Market
Main Markets: South Asia
Southern Europe
Northern Europe
Central America
Western Europe
Eastern Asia
Mid East
Oceania
Africa
Southeast Asia
Eastern Europe
South America
North America
Factory Information
Factory Size (ters): square meters
Factory Location: 2F, No.4, South lane , The Fifth Industrial Area, Industrial Road, Longhua New District, Shenzhen 518109, CHINA .
Contract Manufacturing: OEM Service Offered Design Service Offered
