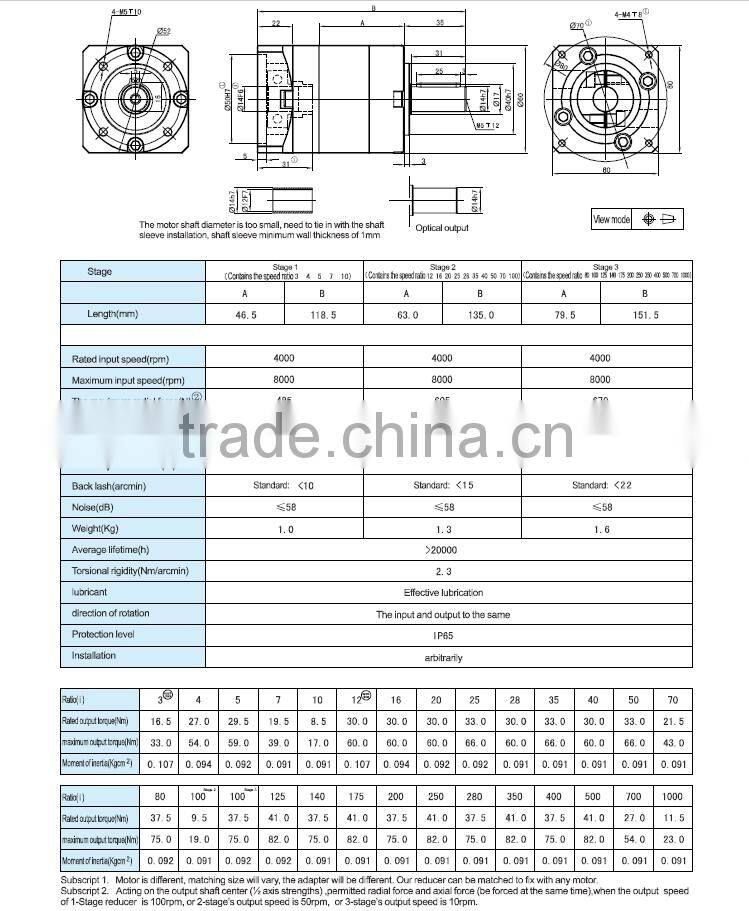

60mm Coaxial Speed Planetary Gearbox
Brief introduction:
*Theory
Gear box is used to transfer rotation and torque from motor to working machine,
*Function
the function is to decrease speed by gears and increase torque.
*Main characteristic
- low backlash
- high output torque-the industry's highest torque density
- balanced motor pinion
- high efficiency(up to 97%)
- ratio 3:1 to 512:1
- low noise
- operable in any mounting positions
- lifetime lubrication
Main Specfication
| Product Type | PL40 | PL60 | PL80 | PL120 | PL160 | Reduction Ratio | Number of Stage | |
| Rated Output Torque | N.M | 4.5 | 12 | 40 | 80 | 400 | 3 | 1 |
| 6 | 16 | 50 | 100 | 450 | 4 | |||
| 6 | 16 | 50 | 110 | 450 | 5 | |||
| 5 | 15 | 45 | 120 | 450 | 8 | |||
| 5 | 15 | 45 | 120 | 305 | 10 | |||
| 16.5 | 44 | 110 | 210 | / | 9 | 2 | ||
| 18 | 44 | 120 | 260 | 800 | 12 | |||
| 18 | 40 | 110 | 230 | 700 | 15 | |||
| 20 | 44 | 120 | 260 | 800 | 16 | |||
| 20 | 44 | 120 | 260 | 800 | 20 | |||
| 18 | 40 | 110 | 230 | 700 | 25 | |||
| 20 | 44 | 120 | 260 | 800 | 32 | |||
| 18 | 40 | 110 | 230 | 700 | 40 | |||
| 7.5 | 18 | 50 | 120 | 450 | 64 | |||
| 20 | 44 | 120 | 260 | / | 60 | 3 | ||
| 20 | 44 | 120 | 260 | / | 80 | |||
| 20 | 44 | 120 | 260 | / | 100 | |||
| 18 | 40 | 110 | 230 | / | 120 | |||
| 20 | 44 | 120 | 260 | / | 160 | |||
| 18 | 40 | 110 | 230 | / | 200 | |||
| 20 | 44 | 120 | 260 | / | 156 | |||
| 18 | 40 | 110 | 230 | / | 320 | |||
| 7.5 | 18 | 50 | 120 | / | 512 |
For more model information,Freely conntact us.
How To Choose Model
1.Please confirm amounting dimension of motor or motor style.
2.Please confirm gearbox Ratio and Rated output torque.
3.Shipment: By sea, by air or others, depend on you
*Filed:
Be widely used for materials handing equipment, engineering machinery,metallurgy industry,mining industry,petrochemical industry, construction machinery,textile industry, medical apparatus and instruments, instrument and meter industry,automobile industry,marine industry,weapons industry, aerospace field,and so on.
*case:
| Automatic door | Carton sealer | DC motor | Food machine | Printing machine | Stepper motor |
| AC motor | Conveying machine | Diesel engine parts | Foam machine | Packing machine | Servo motor |
| CNC | Crane machine | Dyeing machine | Lawn mower | Paper machine | Textile machine |
1. Lunyee standard packing
2. Customized packing
3. Neutral packing
1.Free maintenance within 12 months guarantee
2. Professional research and development team
3. Technical support for installation
4. Strict quality control system
5. Customize production
Chengdu lunyee Industries Development Co. Ltd,
Our mainly manufacture:
1.The Power Transmission Products:
v AC Gear Motor
v DC Gear Motor
v High Precision Planetary Gearbox for Servo Motor and Stepping Motor
2. Linear Motion Products:
v Linear Brushing
v Linear Guide
v Ball Screw
v Locking Nut and Coupling
v ......
Welcome to Our website:
http://lunyee.en.china.cn
Q: How long can I get my production after payment?
A: We would delivery within 7-10 days after payment confirmation.
Q: Do get the relevant certification of products?
A: Yes, so far, we have got the certification of CCC, ISO9001, CE, RoHS, VDE and so on.
Q: What is your after-sales services?
A: 1. We would supply the free maintenance within 12 months guarantee.
2. We would supply the professional solutions during using.
Q: How much is the freight and what is the mode of transportation?
A: The freight is based on the weight of order and the distance of shipment.
The mode of transportation we can supply is EMS, DHL, FedEx, TNT and so on.
For special packing and shipment, Please contact us.
