Home > Electrical & Electronics > Electric Motor > DC Motor > High Quality 1.5V 3V 4.5V 6V 9V 12V Mini DC Gear Motor for Car/autobiles
High Quality 1.5V 3V 4.5V 6V 9V 12V Mini DC Gear Motor for Car/autobiles
US$ 1 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
LUNYEE
Model Number:
L-SGM12-A
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Door Locks Use High Quality 12mm 3V Low Speed Mini DC Gear Motor EngineUS$ 1 - 10MOQ: 10 Pieces -
Instruments and Meters Use High Quality 1.5V 3V 4.5V 6V 9V 12V Mini DC Gear Motor EngineUS$ 1 - 10MOQ: 10 Pieces
-
High Speed dc Gear ReducerUS$ 1 - 10MOQ: 10 Pieces
-
High Speed dc ReducerUS$ 1 - 10MOQ: 10 Pieces
-
High Quality 6mm Planetary Gearbox for Automotive Instrument Drive Geared MotorsUS$ 1 - 10MOQ: 10 Pieces
Place of Origin
Sichuan, China
Brand Name
LUNYEE
Model Number
L-SGM12-A
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Security and safe industry robotics automation electric valve
Certification
CCC, CE, ROHS
Type
Gear Motor
Torque
0.1-8kg.cm
Construction
Shunt Wound
Commutation
Brush
Protect Feature
Drip-proof
Speed(RPM)
1-1600rpm
Continuous Current(A)
≤0.1A
Output Power
0.1-3.5W
Voltage(V)
1.5v 3v 4.5v 6v 9v 12v
Efficiency
IE 2
LUNYEE MINI DC GEAR MOTOR
1.5V 3V 4.5V 6V 9V 12V Mini DC Gear Motor
Applications:
- Labal printers,auto shutter,automatic stabilized voltage supply,
- Grill,oven,cleaning machine,garbage disposers,household appliances,
- Slot machines,money detector, automatic actuator,coffee machine,
- Towel disposal,lighting,coin refund devices,peristalticpump.
- Electrc valve, robotics and automation, security and safe industry.
Specification:
MODEL |
VOLTAGE
VDC
|
NO LOAD |
AT RATED LOAD |
AT STALL |

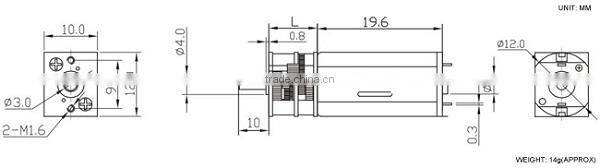

Gearbox
Length
|
|||||
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
TORQUE |
CURRENT |
L |
|||
WORKING |
NOMINAL |
rpm |
A |
rpm |
A |
kg.cm |
kg.cm |
A |
mm |
|
L-SGM12A-03790 |
1.5-6.0 |
3.0 |
790 |
≤0.04
|
695 |
≤0.10
|
0.02 |
0.12 |
≤0.41
|
9 |
L-SGM12A-03395 |
1.5-6.0 |
3.0 |
395 |
≤0.04
|
346 |
≤0.10
|
0.04 |
0.24 |
≤0.41
|
9 |
L-SGM12A-03263 |
1.5-6.0 |
3.0 |
263 |
≤0.04
|
219 |
≤0.10
|
0.06 |
0.36 |
≤0.41
|
9 |
L-SGM12A-03158 |
1.5-6.0 |
3.0 |
158 |
≤0.04
|
131 |
≤0.10
|
0.10 |
0.6 |
≤0.41
|
9 |
L-SGM12A-03125 |
1.5-6.0 |
3.0 |
125 |
≤0.04
|
99 |
≤0.10
|
0.13 |
0.75 |
≤0.41
|
9 |
L-SGM12A-0379 |
1.5-6.0 |
3.0 |
79 |
≤0.04
|
61 |
≤0.10
|
0.19 |
1.2 |
≤0.41
|
9 |
L-SGM12A-0353 |
1.5-6.0 |
3.0 |
53 |
≤0.04
|
40 |
≤0.10
|
0.29 |
2.5 |
≤0.41
|
9 |
L-SGM12A-0338 |
1.5-6.0 |
3.0 |
38 |
≤0.04
|
29 |
≤0.10
|
0.40 |
3 |
≤0.41
|
9 |
L-SGM12A-0332 |
1.5-6.0 |
3.0 |
32 |
≤0.04
|
23 |
≤0.10
|
0.47 |
3 |
≤0.41
|
9 |
L-SGM12A-0327 |
1.5-6.0 |
3.0 |
27 |
≤0.04
|
19 |
≤0.10
|
0.54 |
3.6 |
≤0.41
|
9 |
L-SGM12A-0323 |
1.5-6.0 |
3.0 |
23 |
≤0.04
|
16 |
≤0.10
|
0.60 |
4 |
≤0.41
|
9 |
L-SGM12A-0321 |
1.5-6.0 |
3.0 |
21 |
≤0.04
|
14 |
≤0.10
|
0.66 |
4.7 |
≤0.41
|
9 |
L-SGM12A-0308 |
1.5-6.0 |
3.0 |
8 |
≤0.04
|
5 |
≤0.10
|
1.70 |
12 |
≤0.41
|
12 |
|
Note:
1. This is list is just for reference, we can make the Mini DC gea motor with Different voltage(1.5V, 3V, 4.5V, 5V, 6V, 7.2V, 9V, 12V), speed(from 1rpm-1600rpm), and also different Gear Ratio, so the Gear motor’s final output voltage, speed, torque can be customized.
2. We can match different DC motor with this gearbox.
3. Gearbox shaft dimension is adjustable.
| ||||||||||
1.5V 3V 4.5V 6V 9V 12V Mini DC Gear Motor
Please feel free to inform us your reqeust POWER,VOLTAGE,RATIO,OUTPUT SPEED,TORQUE and QTY to get more information about sample, price, packing, leading time and any other related informations!
