Home > Electrical & Electronics > Electric Motor > DC Motor > 12V 24V 1-1600rpm 37mm Micro DC Gear Motor for IC Card Water / Electricity / Gas / Heating Table

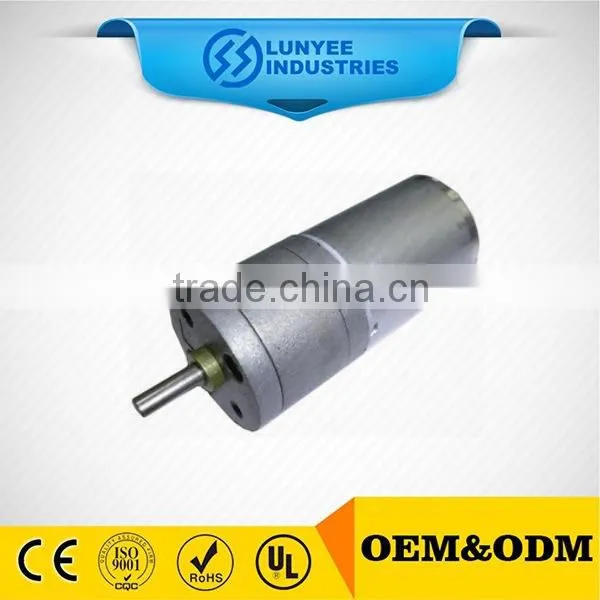

12V 24V 1-1600rpm 37mm Micro DC Gear Motor for IC Card Water / Electricity / Gas / Heating Table
US$ 6.6 - 10
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
LUNYEE
Model Number:
L-SGM37-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V 24V 1-1600rpm 37mm Micro DC Gear Motor for Money DetectorUS$ 6.6 - 10MOQ: 1 Unit -
12V 24V 1-1600rpm 37mm Micro DC Gear Motor for Automatic Mahjong MachineUS$ 6.6 - 10MOQ: 1 Unit
-
12V 24V 1-1600rpm 37mm Micro DC Gear Motor for Automatic CurtainsUS$ 6.6 - 10MOQ: 1 Unit
-
12V 24V 1-1600rpm 37mm Micro DC Gear Motor for Electric HeadUS$ 6.6 - 10MOQ: 1 Unit
-
HIgh Torque Low Speed 12V DC Gear Motor for Air PumpUS$ 6.6 - 10MOQ: 1 Unit
Place of Origin
Sichuan, China
Brand Name
LUNYEE
Model Number
L-SGM37-D
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Electronic lock safe,electric vale and actuator,equipment apparatus
Certification
CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO9001
Type
Other, Gear Motor, Scooter 12V DC gear motor
Torque
0.5-100kg.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Drip-proof
Speed(RPM)
1-1600rpm
Continuous Current(A)
≤1.0A
Output Power
0.5-100W
Voltage(V)
6-24VDC
Efficiency
IE 2
Please Go to to download catalogue and get quotation for this model!

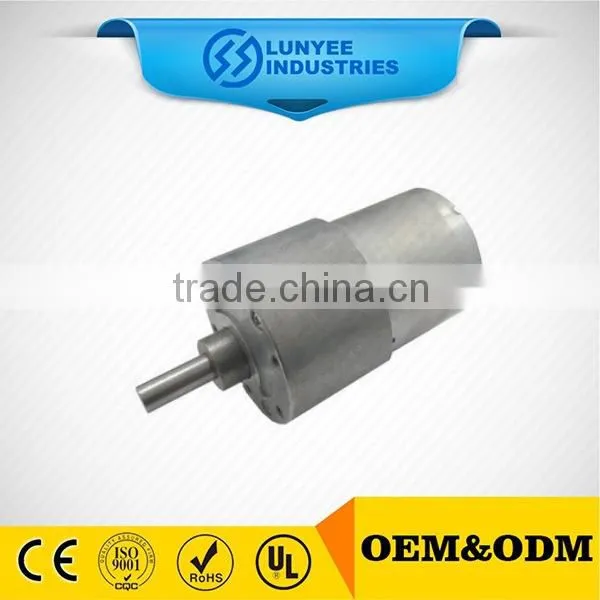

24V micro DC gear motor
Product Description
LUNYEE GEAR MOTOR-DRIVING YOUR BUSINESS!
24V micro DC gear motor
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | AT STALL | Gearbox | |||||
| VDC | Length | |||||||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | L | |||
| WORKING | NOMINAL | rpm | A | rpm | A | kg.cm | kg.cm | A | mm | |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 600 | ≤0.2 | 492 | ≤1.0 | 2.4 | 12 | ≤4.0 | 24.5 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 300 | ≤0.2 | 240 | ≤1.0 | 4.7 | 24 | ≤4.0 | 24.5 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 200 | ≤0.2 | 160 | ≤1.0 | 7 | 36 | ≤4.0 | 24.5 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 120 | ≤0.2 | 91 | ≤1.0 | 11 | 60 | ≤4.0 | 24.5 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 86 | ≤0.2 | 64 | ≤1.0 | 15.5 | 84 | ≤4.0 | 24.5 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 67 | ≤0.2 | 50 | ≤1.0 | 20 | 108 | ≤4.0 | 24.5 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 50 | ≤0.2 | 37 | ≤1.0 | 25 | 144 | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 40 | ≤0.2 | 29 | ≤1.0 | 31 | 150* | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 29 | ≤0.2 | 21 | ≤1.0 | 44 | 150* | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 22 | ≤0.2 | 15 | ≤1.0 | 56 | 150* | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 13 | ≤0.2 | 9 | ≤1.0 | 91 | 150* | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 12 | ≤0.2 | 8.5 | ≤1.0 | 100* | 150* | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 9.5 | ≤0.2 | 6 | ≤1.0 | 100* | 150* | ≤4.0 | 29.1 |
| L-SGM37D-24600 | 12.0-28.0 | 24 | 7 | ≤0.2 | 4.5 | ≤1.0 | 100* | 150* | ≤4.0 | 29.1 |
| Note: | ||||||||||
| 1. This list is just for reference, we cam make the DC motor with Different voltage (6V,12V, 24V), speed(from 1rpm-1600rpm), and also different Gear Ratio, so the Gear motor’s final output voltage, speed, torque can be customized. | ||||||||||
| 2. We can match different DC motor with this gearbox. | ||||||||||

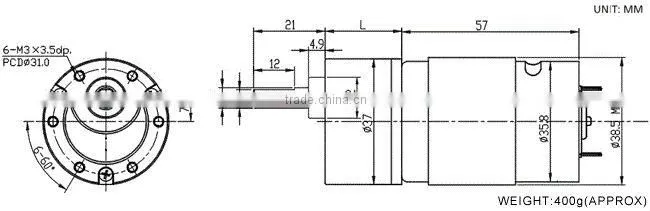

| 3. Gearbox shaft dimension is adjustable. | ||||||||||
24V micro DC gear motor
Our Services
- 2-10pcs Samples of above standard parameters can be sent in 3-5days.
- Parameters and shaft size can be Customized. Non-standard prodcts can be sent in 15-25days.
- Processing according to Clients' samples or drawing is accepted.
24V micro DC gear motor
Application:
Company Information

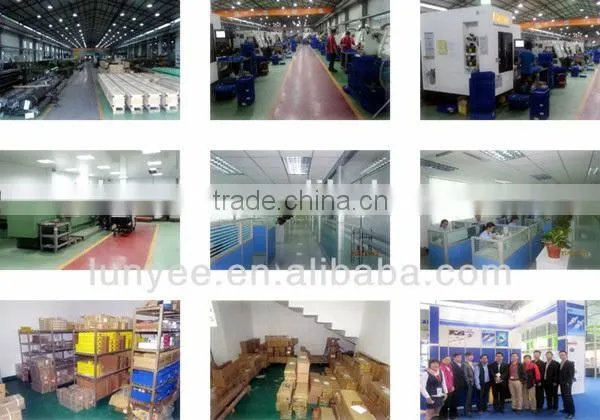

Chengdu Lunyee Industries Development Co.,Ltd. is a leading manufacturer for AC gear motor, DC gear motor, high precision planetary gearbox for servo motor and stepper motor, linear motion products like linear bushing, linear guide, ball screw, locking nut and coupling and so on!
Scooter 12V DC gear motor
FAQ
Please feel free to inform us your reqeust VOLTAGE,OUTPUT SPEED,TORQUE and QTY to get our information about sample, price, packing, leading time and any other related informations!
