Products Status Stock
Brand Name Yzc
Model Number EC200-BT
Place of Origin Guangdong, China

Overview

The EC200-BT is first Intel® Atom™ E3800 SoC processor-based fanless embedded system; providing outstanding computing capability as well as low-power consumption. The black chassis made of iron plus metallic grey aluminum alloy coated with anodic surface treatment provides a stylish and elegant impact. The arc-shaped indentation design assists in reducing noise and provides more efficient cooling of the unit, which in turn extends the life of the product. In addition, the EC200-BT offers superior innovative modular-concept design and the configurations are unlimited due to low-cost OEM I/O modules and multiple riser cards designed to meet custom OEM specification requirements. Its compact size, durability, and dust-proof features let EC200-BT become an ideal solution in a wide range of applications such as industrial automation, POS systems, and digital signage.





Product Description



PROCESSOR SYSTEM
    • Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W

  • 22nm process technology


MEMORY
    • Two 204-pin DDR3L SODIMM sockets

      - up to 8GB system memory

      - dual channel memory interface

  • Supports DDR3L 1333MHz


GRAPHICS FEATURES
    • Intel® HD Graphics

    • Display ports: 1 VGA, 1 DVI (DVI-D signal)

    • Supports 2 independent displays

    • VGA: resolution up to 2560x1600 @ 60Hz

  • DVI: resolution up to 1920x1080 @ 60Hz


STORAGE
    • 2 2.5" SATA drive bays

      - SATA 2.0 port with data transfer rate up to 3Gb/s

      - Standard: 1 SATA drive bay

      - Option: 2 SATA drive bays (Available upon request. Please contact your sales representative for more information.)

  • Supports 1 mSATA module via the mini PCIe socket


Ethernet
    • 2 Intel® WGI210AT PCI Express Gigabit Ethernet controllers

    • Integrated 10/100/1000 transceiver

  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab


AUDIO FEATURES
    • Realtek® ALC888 High Definition Audio

  • 2 watt, 4Ω power amplifi er


Expansion
  • 1 Mini PCIe slot

    - Supports USB and PCIe signals

    - Supports mSATA, Wi-Fi or 3G*

    - Supports half size or full size Mini PCIe card


Power
  • Power input voltage: 9~36V DC-in


ENVIRONMENT
    • Temperature

      - Operating: 0°C~55°C (SSD/mSATA)

      - Operating: 0°C~50°C (HDD)

      - Operating: -10°C~70°C (wide-temp SSD, for EC200-BT6060 only)

      - Storage: -20°C~85°C

    • Operating Vibration

      - IEC68-2-64 (HDD)

  • Operating Shock

    - Half sine wave 15G, 11ms, 3 shock per axis


Construction
  • Aluminum + SGCC


Mounting
  • Wall/VESA mount

    - Mounting brackets and screws*


DIMENSIONS
  • 275mm x 59mm x 203mm (W x H x D)


Weight
  • 3 kg


OS SUPPORT
    • Windows 7, WES 7, Windows 8.1, WES 8

  • Linux (Distribution available upon request)


CERTIFICATIONS
    • CE

    • FCC Class A

    • RoHS

  • UL compliance


WATCHDOG TIMER
  • Watchdog timeout programmable via software from 1 to 255 seconds





I/O Ports

EC200-BT I/O Ports

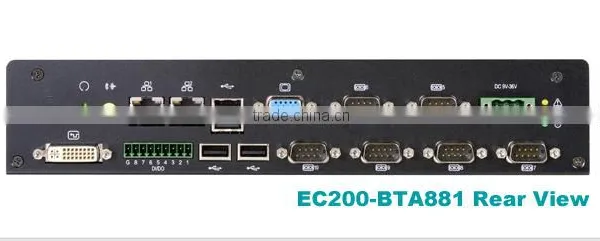

Rear I/O Ports EC200-BTA881 EC200-BTAG60 EC200-BT6060
DC-in power jack: 3-pole terminal block 1 1 1
Speaker-out: 2W 3.5mm audio jack 1 1 1
VGA: DB-15 D-sub 1 1 1
DVI (DVI-D signal) 1 0 0
LAN: RJ45 2 2 2
RS232 COM: DB-9 D-Sub 2 2 2
RS232/422/485 COM: DB-9 D-Sub 4 4 0
USB 2.0 Type A 3 1 1
USB 3.0 Type A 1 1 1
GPIO: 9-pole terminal block 8-bit 16-bit 0
Reset button 1 1 1
Power LED 1 1 1
HDD LED 1 1 1
Alert LED 1 1 1
Front I/O Ports EC200-BTA881 EC200-BTAG60 EC200-BT6060
USB 2.0 Type A 4 4 4
RS232/422/485 COM: DB-9 D-Sub 4 4 4
Power button with indicator 1 1 1
Reset button 1 1 1
HDD LED 1 1 1
Alert LED 1 1 1
Wi-Fi module antenna hole 2 2 2







Ordering Information

Model Name Part Number Description
EC200-BTA881-45 750-EC2000-F00G Fanless, E3845, 2 LAN, 1 DVI, 1 VGA, 10 COM, 8-bit GPIO, 8 USB, RoHS
EC200-BTAG60-45 750-EC2000-G00G Fanless, E3845, 2 LAN, 1 VGA, 10 COM, 16-bit GPIO, 6 USB, RoHS
EC200-BT6060-45 750-EC2000-H00G Fanless, E3845, 2 LAN, 1 VGA, 6 COM, 6 USB, RoHS

Optional Items

Optional Items Part Number Description
Memory 785-RSOD34G-L SODIMM, DDR3L Module, 4GB, RoHS
  785-RSOD32G-L SODIMM, DDR3L Module, 2GB, RoHS
HDD 785-H25500G 2.5” SATA HDD, 500GB, RoHS
  785-H25320G 2.5” SATA HDD, 320GB, RoHS
  785-S251TBG 2.5" SATA SSD, 1TB MLC, RoHS
  785-S25512G 2.5" SATA SSD, 512GB MLC, RoHS
  785-S25256G 2.5" SATA SSD, 256GB MLC, RoHS
  785-S25128G 2.5" SATA SSD, 128GB MLC, RoHS
  785-S25064G 2.5" SATA SSD, 64GB MLC, RoHS
  785-S251TBG-W 2.5" SATA SSD, 1TB MLC, Wide Temp, RoHS
  785-S25512G-W 2.5" SATA SSD, 512GB MLC, Wide Temp, RoHS
  785-S25256G-W 2.5" SATA SSD, 256GB MLC, Wide Temp, RoHS
  785-S25128G-W 2.5" SATA SSD, 128GB MLC, Wide Temp, RoHS
  785-S25064G-W 2.5" SATA SSD, 64GB MLC, Wide Temp, RoHS
  785-S25032G-W 2.5" SATA SSD, 32GB MLC, Wide Temp, RoHS
  785-S25016G-W 2.5" SATA SSD, 16GB MLC, Wide Temp, RoHS
  785-S25008G-W 2.5" SATA SSD, 8GB MLC, Wide Temp, RoHS
mSATA 785-MS128GMF mSATA Card, 128GB MLC, RoHS
  785-MS64GMF mSATA Card, 64GB MLC, RoHS
  785-MS32GMF mSATA Card, 32GB MLC, RoHS
  785-MS16GMF mSATA Card, 16GB MLC, RoHS
  785-MS08GMF mSATA Card, 8GB MLC, RoHS
  785-MS04GMF mSATA Card, 4GB MLC, RoHS
Wi-Fi 761-110091-000G Wi-Fi kit, RoHS
Power Cord 785-PWRD Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
Power Adapter 671-106012-000G 60W, 19V/3.15A, Level 6, RoHS
  671-106013-000G 60W, 12V/5A (-30 to 70°C), Level 6, RoHS
  671-110003-100G 120W, 19V/6.31A, Level 6, RoHS
Wall Mount 785-EC3WMK Wall Mount Kit
VESA Mount 785-EC2VAK VESA Mount Kit













YOU MAY LIKE





Low-power consumption fanless embedded with Intel Atom E3800 SoC         Low-power consumption fanless embedded with Intel Atom E3800 SoC

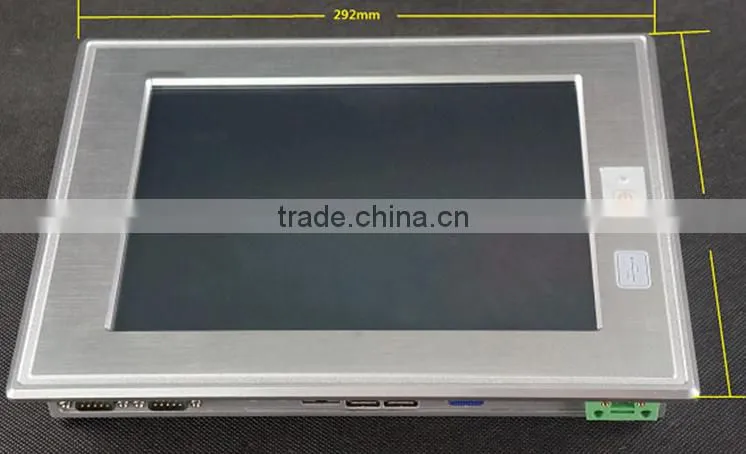

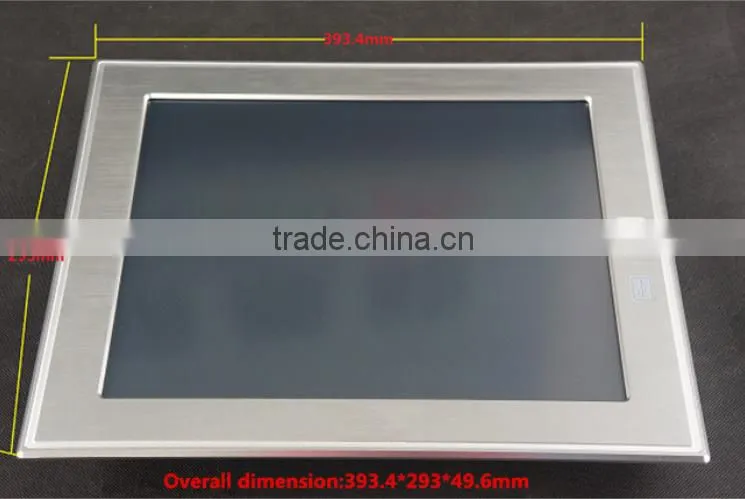

                  10.4 inch panel pc                                                                           15 inch panel pc



Low-power consumption fanless embedded with Intel Atom E3800 SoC

                      1037U mini  box pc

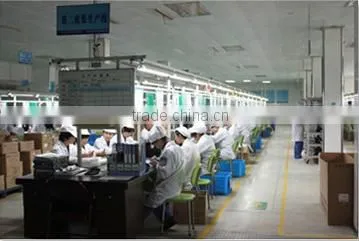

OUR PRODUCTION AND WERVICE
