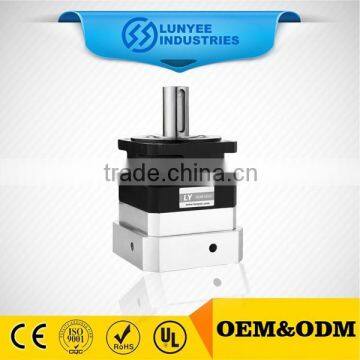

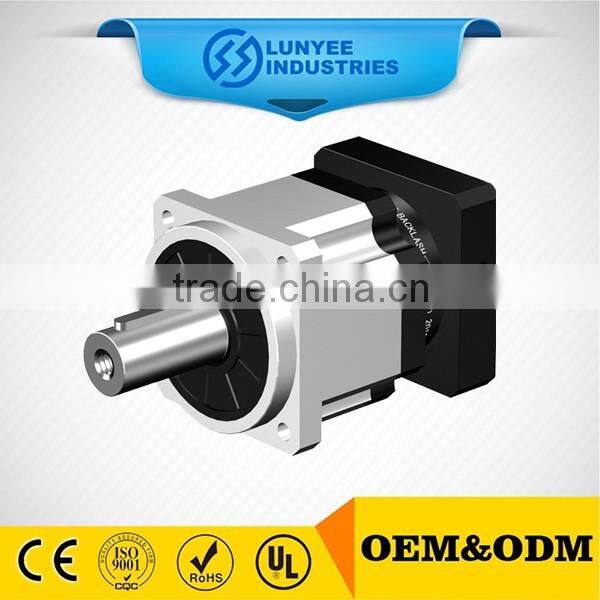

CNC Machine Tool New Precise Gearbox
As the high precision gearbox, it could be used for higer requirement with low backlash
CNC Machine Tool New Precise Gearbox

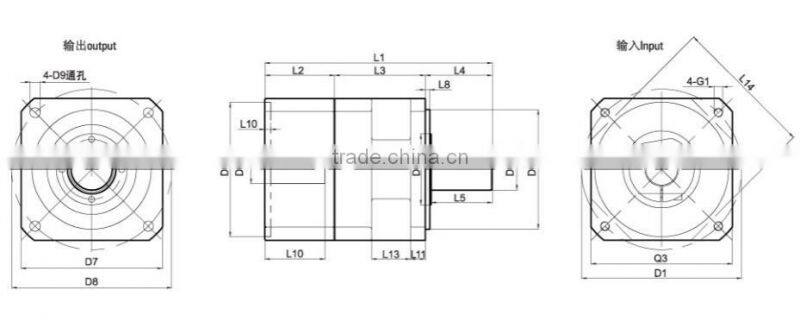

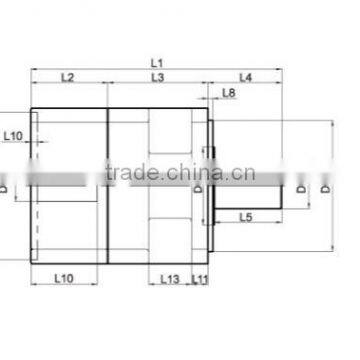

Dimension data of PLS high precision planetary gearbox

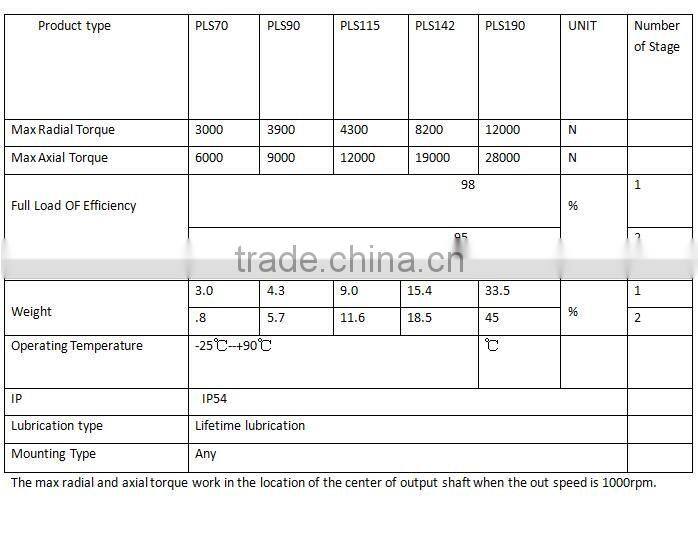

Basic Technical data of PLS high precision planetary gearbox
PRODUCT TYPE |
| PLS70 | PLS90 | PLS115 | PLS142 | PLS190 | REDUCTION RATION | NUMBER OF STAGE |
Rated output torque | N.m | 30 | 75 | 150 | 400 | 1000 | 3 | 1 |
40 | 100 | 200 | 560 | 1200 | 4 | |||
50 | 110 | 210 | 700 | 1600 | 5 | |||
37 | 62 | 148 | 450 | 1000 | 8 | |||
27 | 45 | 125 | 305 | 630 | 10 | |||
77 | 120 | 260 | 910 | 1800 | 12 | 2 | ||
68 | 110 | 210 | 780 | 1800 | 15 | |||
77 | 120 | 260 | 910 | 1800 | 16 | |||
77 | 110 | 260 | 910 | 1800 | 20 | |||
68 | 110 | 210 | 780 | 1800 | 25 | |||
77 | 10 | 260 | 910 | 1800 | 32 | |||
68 | 110 | 210 | 780 | 1800 | 40 | |||
37 | 62 | 148 | 450 | 1000 | 64 | |||
27 | 45 | 125 | 305 | 630 | 100 | |||
Lifetime | Hour | 30000 |
| |||||
Instant stop torque | N.m | Two times of rated output torque | ||||||
1. I am not sure which gear box should be choosed?
Let's do it together!
the most fitable gearbox will be selected for you, any question, please feel free to contact us.
2.Is there much more gearbox for choices?
Yes, hear is internationl standard gearbox with different model
PLE PLF PLS SERIES
WPLE WPLF SERIES
APLE APLF SERIES
PLH PLF SERIES
ZPLX SERIES
AB SERIES
ABR SERIES
Lunyee gearbox was widely used in different area...
Lower the speed, Increase the torque,keep high precision and low backlash
That's the basic of gearox in Lunyee.
Stepper motor | AC motor | Servo motor | CNC |
Automatic door | Lawn mower | Food machine | Diesel engine |
Carton sealer | Packing machine | Paper machine | Foam machine |
Textile machine | Dyeing machine | Printing machine |
|
Crane machine | Conveying machine | Crusher | Diesel engine parts |
And more....
1. standard poly woodcase lined with carton and foam
2. customer sized package
3. neutral packing
Lunyee Industries Development Co., Ltd is a leading manufacturer of factory automation (FA) products.
We are dedicated in power transmission and motion control solutions.
