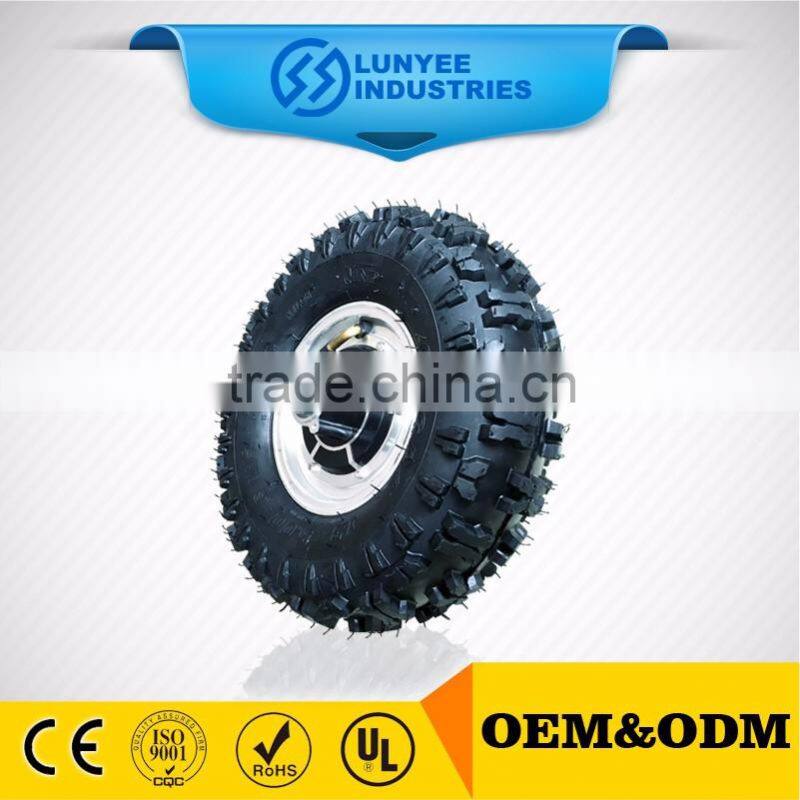

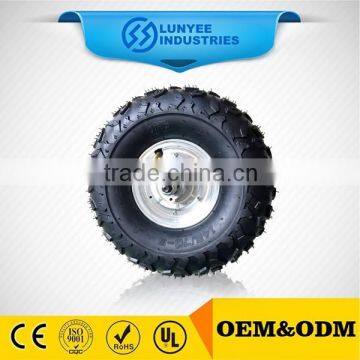

13 inch brushless electric bicycle dc hub motor 48v 500w

Main technical parameters of hub motor

1. Rated voltage: DC 24/36/48v

2. Rated power: 180-500W

3. No-load speed: 300-1200rpm

4. Tire: 13*5.00-6, vacuum tire

5. Rim size: 13 inch

6. Diameter with tire: 330mm

7. Efficiency: >83%

8. N.W.: 6.5kg/pc(with tire)

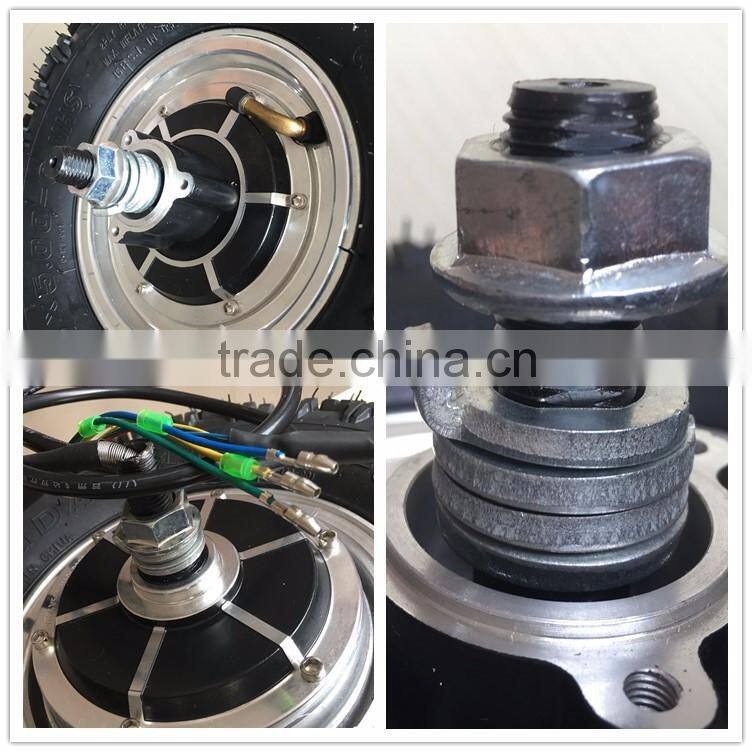

ralated pictures of hub motor

Features of hub motor

1. brushless and gearless design

2. low noise, high efficiency, waterfroof and longer lifetime

3. suitable for vacuum tire and air tire

4. enoght copper wire, high torque, climbing>=15'

5. application: electric scooter, electric bicycle, electric cart etc.

Material of hub motor

1. wheel: international standard A356 aluminum heat treatment

2. magnetic steel: stardard 38H

3. iron core: DW350 Lamination

4. Hall: Honeywell can resist high temperature 150°c

5. cover: Aluminum die casting

Lunyee company specializes in hub motor, AC gear motor, servo motor, stepper motor and so on. more information please visit our website: /
