AC-DC-AC 3 phase vfd 18kw frequency converter 220v ac output 3phase power inverter

Name: AC-DC-AC 3 phase vfd 18kw frequency converter 220v ac output 3phase power inverter
Brand: MOCHUAN
Price: USD $100 - 13,000 / Set

FOB Price

USD $100 - $13,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port shanghai guangzhou qingdao
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	MOCHUAN	Model Number:	MH10G4T37G
Output Power:	Other, 0.4-355kw 220v ac output 3phase power inverter	Output Type:	Other, triple 220v ac output 3phase power inverter	Size:	452290212*494mm
Weight:	as per unit	Input Voltage:	220V	Output Voltage:	220V
Type:	Other, DC/AC 220v ac output 3phase power inverter	Output Frequency:	22~30HZ, 0~400HZ	Output Current:	45-60

Product Description

AC-DC-AC 3 phase vfd 18kw frequency converter 220v ac output 3phase power inverter

What does MOCHUAN DRIVES can do for you ?

MOCHUAN DRIVES brings energy saving , speed increasing and more healthy life !

Product Description

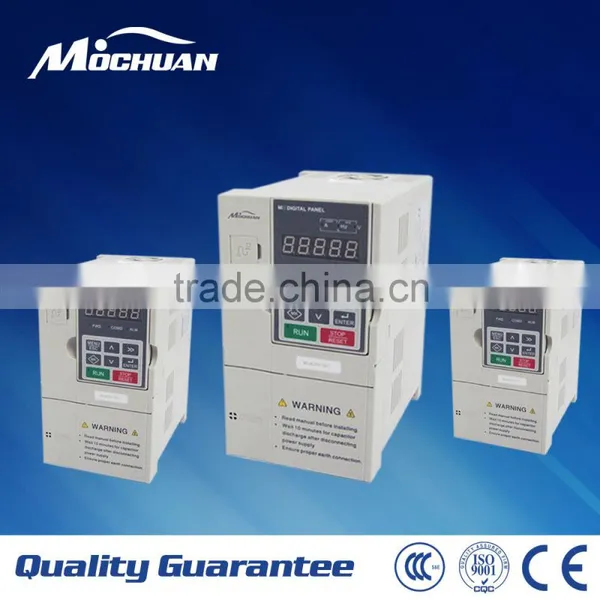

Show of MH10 series frequency inverter

What is MH10 series Mochua frequency inverter?

MH10 series general vector frequency converter ,simple operation ,have excellent vector control

performance ,high-cost performance and easy to maintain .In printing ,textile,machine tools and

packaging machinery ,water supply ,fan and many other fields have outstanding performance .

What is advantage of Mochuan frequency inverter?

1.Advanced vector control algorithm , low frequency and big start torque .0.25HZ up to 150% rated torque .
2.Built-in PID function constitute a closed-loop control system and PID with sleep wake up function
3.By a simple built-in PLC function automatically run more speed or external control terminal 16 segment speed operation
4.Built-in automatic torque compensation function and slip compensation function
mon DC bus
6.Support for multiple frequency given way , digital given, analog given , PID is given ,communications given etc .By terminal keyboard given way to free switch.
7.Rich programmable input/output terminals , to meet the demand of customers a variety of control
8.Can realize the instantaneous power failure non-stop , and has the function of speed tracking start ,and stop quickly restart
9.The unique address mapping function ,the user to save parameters group and keyboard copy function
10.It can provide many kinds of fault protection function ,over current , over voltage ,lack of phase ,overload etc .
11.The single phase 0.4KW~2.2KW braking unit can optional ,and three phase 0.4KW ~22KW braking unit is standard built-in .

What is techinology specification?

Project	Description
Input	rated voltage; freq	3- phase,380V±15%;50Hz ,freq:±5%
	rated current	refer to the rating
Output	voltage	0~380V
	freq	0~400Hz
	current overload capacity	150% rated current/min,180%rated current/10secs,200% rated current/sec
mainly controls performance	modulation mode	magnetic flux vector PWM modulation
	motor type	normal motor,converter motor,synchronous motor
	speed adjustable range	colse-loop vector(SYNC,async)1:5000; open-loop vector 1:200;V/F1:100
	starting torque	colse-loop vector(SYNC,async)0Hz180%; open-loop vector 0.25Hz 150%; V/F0.5Hz 150%
	steady speed precision	colse-loop vector(SYNC,async)0.02% ; open-loop vector 0.2%;V/F0.5%
	velocity pulsation	colse-loop vector(SYNC,async)0.1%; open-loop vector 0.3%; V/F0.5%
	freq accuracy	setting number:max freq X±0.02%; analog freq: max freq X±1%
	torque compensation	automatic torque promote; manual torque promote0.1%~30.0%
	V/F curve	a user settingV/F curve way,a variety of torque characteristics way and voltage separation control
	acceleration and deceleration curves	2 ways:linear acceleration/deceleration ,S curves acceleration/deceleration ; 4 way of acceleration/deceleration time:0.1~3600 secs
	DC braking	DC brake starting freq 0.00~60.00Hz ;braking time 0.1~30.0 secs
	Jog	jog freq range:0.10Hz~60.00Hz ; jog acceleration/deceleration time:0.1~60.0secs ,jog time interval can be set
	multistage speed running	through the built-in PLC control or terminal control implement 16 segment speed running
	built-in PID	easy to from a closed-loop control system
	automatic energy saving running	according to the load automatic optimization control to implement energy saving running
	automatic voltage regulation(AVR)	when grid voltage changes can automatically to keep the pressure constant power transmission
	function of speed tracking and starting	no impact on the implementation of rotation of motor smooth start
	auto-current-limit	automatic operation during the current limit to prevent frequent over-current fault tripping
	textile pendulum freq	textile pendulum freq control to achieve the function of center freq adjustable swing freq
	fixed length control	through the terminal count to input function to achieve fixed length control
	busbar voltage over-voltage suppression	travel on bus over-voltage real-time dynamic control to prevent frequent overvoltage to fault tripping
	Non-stop moment control	when instantaneous power lost ,through the busbar voltage to control and achieve uninterrupted operation
running control	bind function	Running the command channel and frequency of a given channel to bind synchronous switch
	running the command channel	Operating panel to control command channel , terminal to control command channel ,Modbus communication command channel . it can through a variety of ways to switch .
	frequency to a given channel	keybord setting ,analog voltage given,analog current given,simple PLC given,multistage speed given,process closed- loop given,Modbus communication given .it can through a variety of ways to switch.
	protect function	overcurrent protection,overvoltage protection,undervoltage protection,overload protection,overheating protection,modular protection,phase-break protection,PI feedback lost,outside given lost,speed deviation is too large,setting fault protection,inverter load protection,contactor fault protection,CPU abnormal interference protection,EEPROM reading and writing fault protection,abnormal parameter copy protection,abnormal communication protection,encoder wirte breaking protection,stalling protection,low torque protection etc
	auxiliary frequency given	to achieve flexible auxiliary frequency fine tuning,frequency synthesis
peripheral interface	analog input	3road analog signal input :2 road0V~10V/0mA~20mA; 1 road differential input -10V~+10V
	analog output	2road analog signal output:0~10V/0~20mA ,to set the frequency ,output frequency analog output can be realized etc
	digital input	8-way multi-function input terminals :X8/DO high-speed pulse input terminals ,max support (50KHz)
	digital output	2-way multi-function output terminals:Y2/DO high-speed pulse output terminals ,max support (50KHz)
	relay output	2-way relay output: MA normally closed MB normally open MC common terminal ;M1 normally closed M2 normally open M3 common terminal
communication	485 communication	standard 485 differential signal ,support Modbus .To support the communication address of external and internal mapping .
	the bus option	retain
panel	LED display	it can display a frequency setting,output frequency,output voltage,output current and a variety of parameters etc
	key lock to choose	by setting can achieve some or all keys to lock to prevent the error running .
	multifunction MK key	achieving point move ,free downtime,switch running direction,switch menu and command channel switch .
other	using place	indoor, can not direct sunlight ,using in without dusts,causticity gas,flammability gas,oil fog,vapor or salt etc
	environment temperature	-10℃~50℃,up to 40℃ need to derating use .
	altitude	1000m or less ,ifaltitude 1000m or more need derating use ,rise every 1000m need to fall derating 10% , the highest do not exceed 3000m .
	humidity	5%~95%RH ,no water condenses .
	vibration	less than5.9m/sec2(0.6g)
	storage temperature	-40℃~+70℃
	cooling mode	forced-air
	mouning	wall-mounted ,flat on
	efficiency	45Kw to down greater than or equal 93% ;55Kw to up greater than or equal 98%

What's the application?- frequency inverter

4.0 industrial show

MuLink Network Show

Name Rule- frequency inverter

All items of MH10 series frequency inverter

Model	Power(KW)	Rated current
MH10G2S0.4GS	0.4	2
MH10G2S0.75GS	0.75	4.5
MH10G2S1.5GS	1.5	7.5
MH10G2S2.2GS	2.2	10
MH10G4T0.75G/1.5P	0.75/1.5	2.5/3.7
MH10G4T1.5G/2.2P	1.5/2.2	3.7/5.0
MH10G4T2.2G/4P	2.2/3.7	5/9.3
MH10G4T4G/5.5P	3.7/5.5	9.3/14
MH10G4T5.5G/7.5P	5.5/7.5	14/17
MH10G4T7.5G/11P	7.5/11	17/25
MH10G4T11G/15P	11/15.0	25/32
MH10G4T15G/18.5P	15/18.5	32/38
MH10G4T18.5G/22P	18.5/22	38/45
MH10G4T22G/30P	22/30	45/60
MH10G4T30G/37P	30/37	60/75
MH10G4T37G/45P	37/45	75/92
MH10G4T45G/55P	45/55	92/115
MH10G4T55G/75P	55/75	115/150
MH10G4T75G/90P	75/90	150/180
MH10G4T90G/110P	90/110	180/215
MH10G4T110G/132P	110/132	215/260
MH10G4T132G/160P	132/160	260/305
MH10G4T160G/185P	160/185	305/340
MH10G4T185G/200P	185/200	340/380
MH10G4T200G/220P	200/220	380/425
MH10G4T220G/250P	220/250	425/480
MH10G4T250G/280P	250/280	480/530
MH10G4T280G/315P	280/315	530/600
MH10G4T315G/355P	315/355	600/650
MH10G4T355G/400P	355/400	650/720
MH10G4T400G/450P	400/500	720/840

MH10 series above 4KW terminal wiring diagram frequency converter

PLC card support custom function industry

Description
1.PLC card is a speical research and development MU1C series multi-function miniature .PLC for MOCHUAN series frequency converter .By extending the card in PLC integration in frequency converter .
2.Traditional frequency converter need to change the bottom plane to realize special function ,but PLC card just need to write a different ladder diagram program ,not need to change the underlying .
3. PLC card can directly read/write calls and control of each parameter in frequency converter ,simple ,reliable,strong performance and extend the function of frequency converter to satisfy the application of inverter in various industries ,such as rotary cutting machine,constant pressure water supply,printing,wire drawing machine and other special industries .
Resource
1.6 in /4 out ,to share converter I/O(8 in/4 out) and 2AI/2AO
2.Compatible MU1H instruction set
3.Basic instruction processing speed of 0.084μs/step
4.Comprehensive instruction processing speed for 1K step/ms
5.Process capacity is 12K step ,2K bytes remain when power supply drop
6.With PID instruction ,constitute a closed-loop system frequency converters is more reliable and accurate control equipment.
Communication
1. 1road RS485 port , Modbus programming
2. Modbus /free port/MuLink networking
Programming environment
1.Support the ladder diagram ,the statement list ,smooth function diagram(SFC)
2.English editor environment ,user program software encryption

1.Converter after built-in PLC card is equivalent to a frequency converter plus a powerful PLC .PLC card is compatible with inverter I/O and 2 analog input and output ,more simple and convenient , save lots of cost .
2. The PLC card can directly reading and writing the parameters of the frequency converter through internal agreement , communication speed can reach 1~2ms .
3. PLC card can take advantage of the special customer needs to register follow one's inclinations ,speaking ,reading and writing of signals ,such as voltage ,current ,speed signal etc ,with a fast update period ,better real-time peformance .
