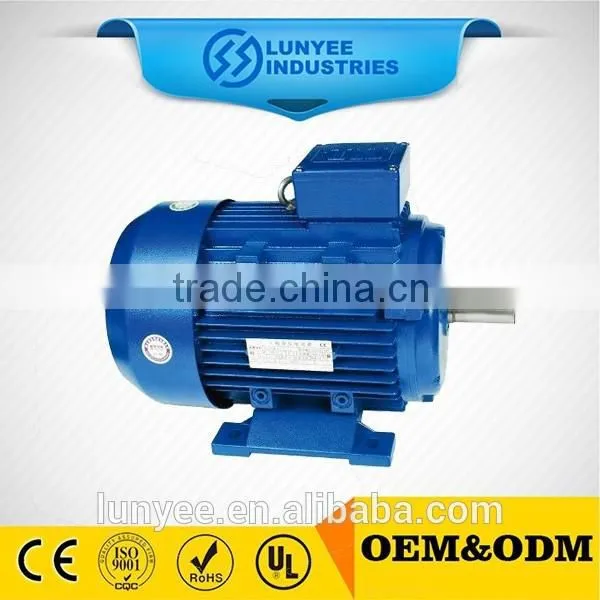

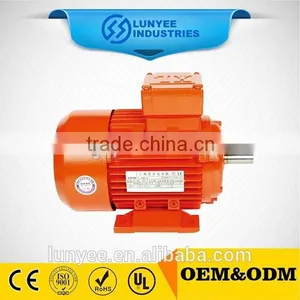

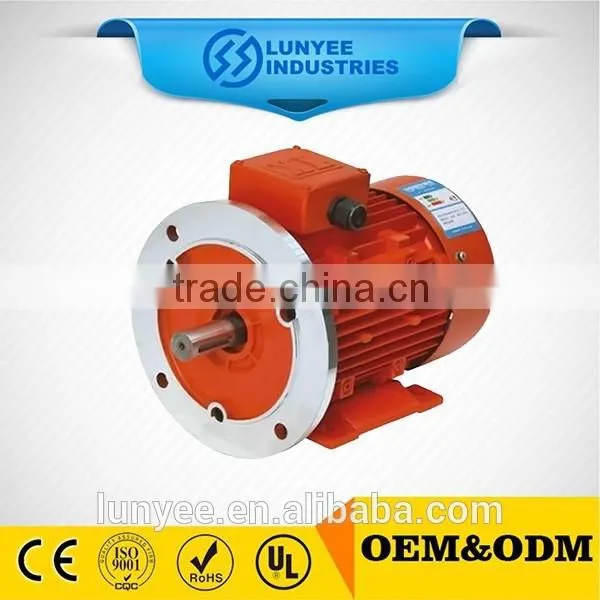

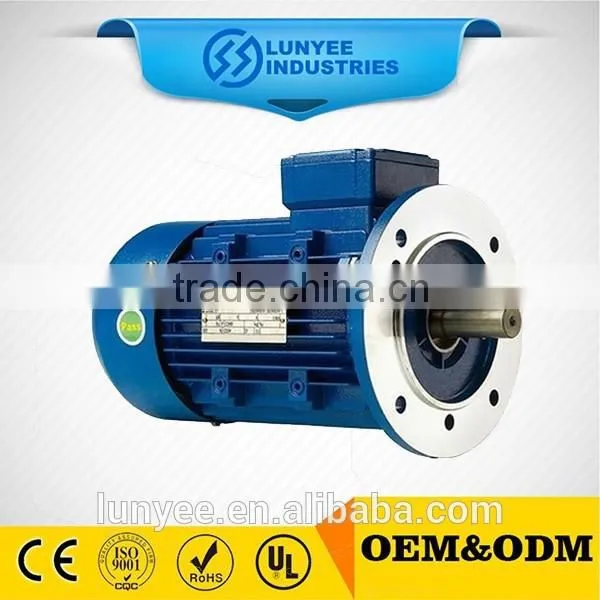

Y Series Three Phase Universal ac Electric Motor
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Lunyee
Model Number:
YVF2-90L-4
Type:
Other, Asynchronous Motor, Y series three phase universal ac electric motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Ningbo Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IE1 IE2 High Efficiency ac Electric MotorUS$ 1 - 1,000MOQ: 1 Piece -
IE1 IE2 High Efficiency ac Electric MotorUS$ 1 - 1,000MOQ: 1 Piece
-
Fan Cool Three Phase ac Electric MotorUS$ 1 - 1,000MOQ: 1 Piece
-
AC Electrical Water Pump Motor SmallUS$ 1 - 1,000MOQ: 1 Piece
-
240V High Torque Low Rpm ac Electric MotorsUS$ 1 - 1,000MOQ: 1 Piece
Brand Name
Lunyee
Model Number
YVF2-90L-4
Type
Other, Asynchronous Motor, Y series three phase universal ac electric motor
Frequency
5-50HZ 50-100HZ
Output Power
1.5kW
Protect Feature
Drip-proof
Phase
Three-phase
Certification
CCC, CE
AC Voltage
Other, 380V
Place of Origin
Sichuan, China
Efficiency
IE 1
LUNYEE Y series three phase universal ac electric motor
Y series three phase universal ac electric motor

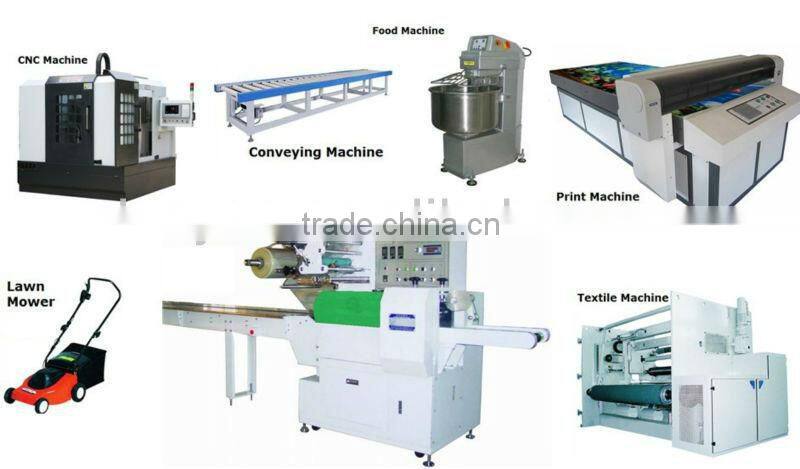

Application:
Widly Applicated in
- CNC, food machine, packing machine, prininting machine, textile machine, Logistcs equipment,
- Metallurgical equipment, Rubber and plastic machine, Baverage machine, Construction machine,
- Chemical machine, Environmental protection equipment, pharmaceutical equipment ,Ceramic machinery,
- Conveying equipment, Electronic instrument, Tobacco machinery, Light industrial machinery,
- Chemical engineering, Electricity engineering, Petroleum engineering, Production line...
Products Features:
A) 100% output with 100% copper winding;
B) OEM customer's requirement & customer's drawing;
C) Different size of flange to fit for different device, customized flange is workable.
D) All materials are brand-NEW.
| YVF2 series IP54 frequency variable speed regulation Three-phase Asynchronous Electric Motor | |
| 1). Power: | 0.55KW-160KW |
| 2). Frame: | H80 to 280; |
| 3). Shell: | cast aluminum/iron; |
| 4). Pole: | 2/4/6/8 poles; |
| 5). Mounting arrangement: | B3/B5/B14/B35/B34 or other; |
| 6). Voltage: | 220V, 380V, 400V, 415V, 440V or on request (50Hz or 60Hz); |
| 7). Protection class: | IP54 / IP55 /IP65; |
| 8). Duty/Rating: | S1 (Continuous); |
| 9). Cooling method: | IC416 (SELF-FAN cooling); |
| 10). Insulation class: | F; |
| 11).Standard: | (IEC) EN60034-1 & EN1060204-1. |
Y series three phase universal ac electric motor

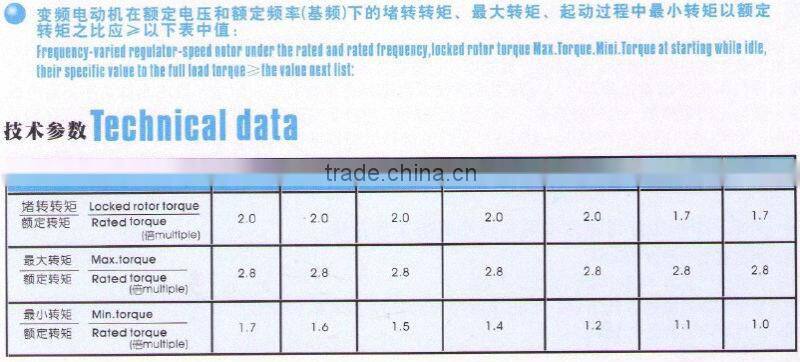

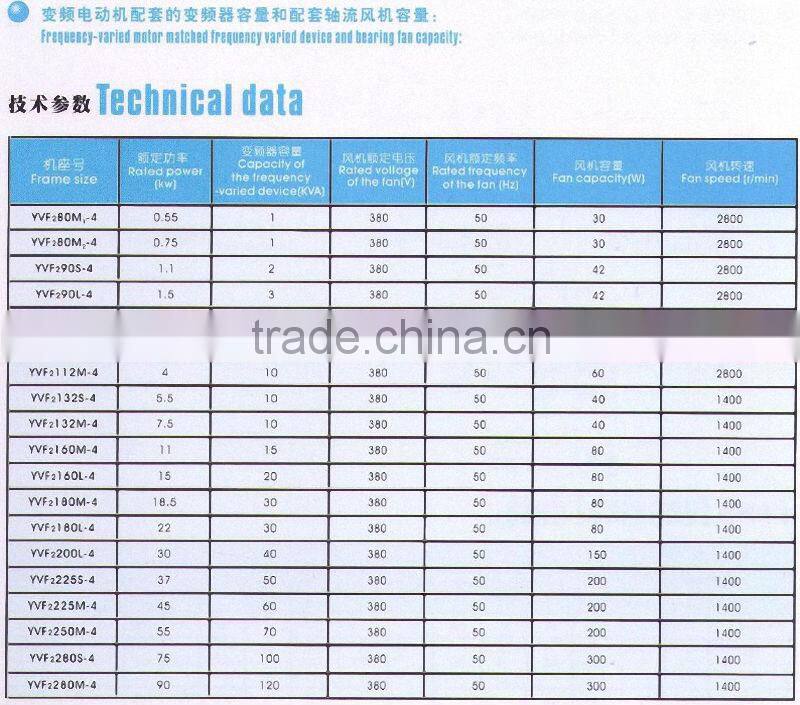

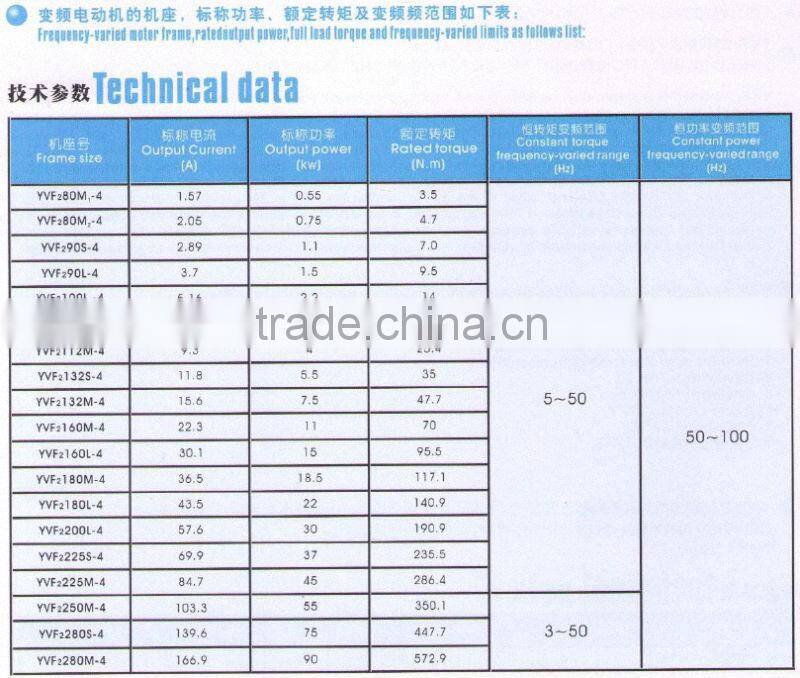

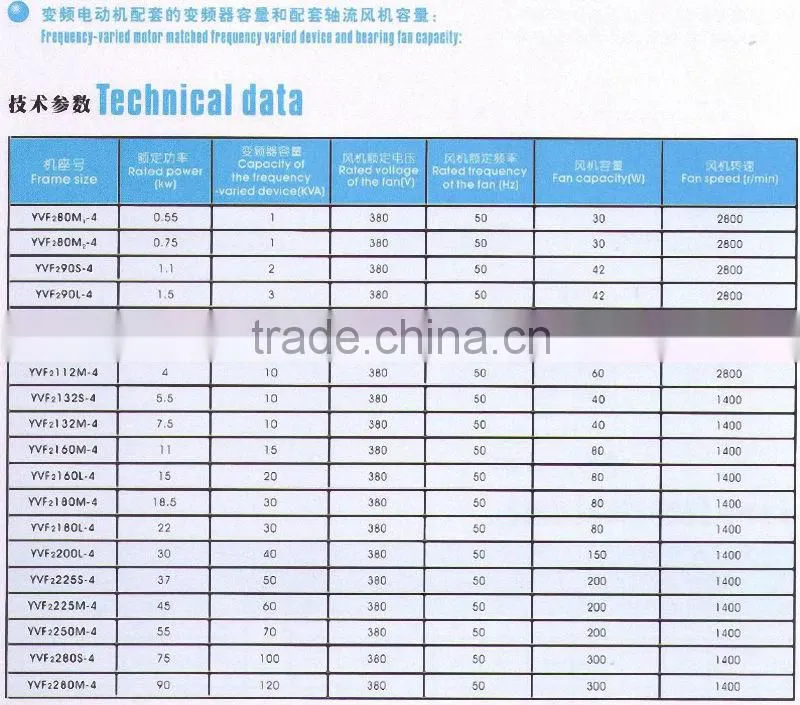

Main Parameters:
Y series three phase universal ac electric motor

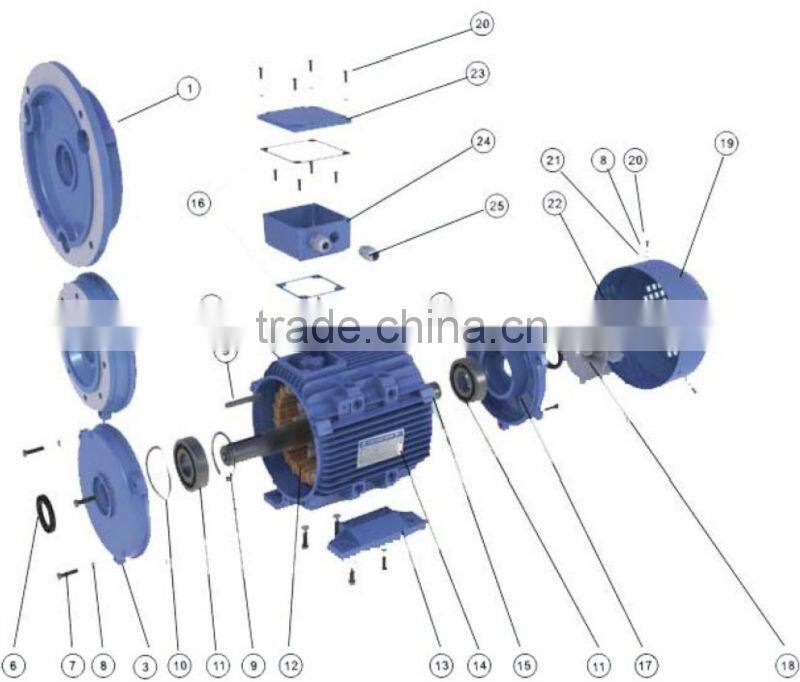

Structure explosion
| 1. B5 Flange | 6. Oil seal | 11. Bearing | 16. Gasket | 21. Washer | 26. Terminal board |
| 2. B14 Flange | 7. Bolt | 12. Stator | 17. Rear End-shield | 22. Fan clamp | |
| 3. Fromt End-shield | 8. Spring Washer | 13. Feet | 18. Fan | 23. Terminal box lid | |
| 4. Frame | 9. Circlip | 14. Nameplate | 19. Fan cover | 24. Terminal box base | |
| 5. Key | 10. Wave washer | 15. Rotor | 20. Screw | 25. Cable gland |
Y series three phase universal ac electric motor

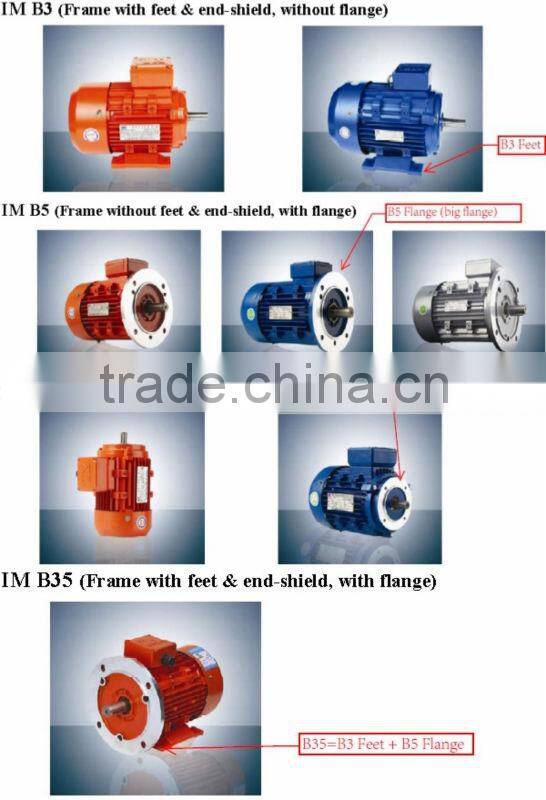

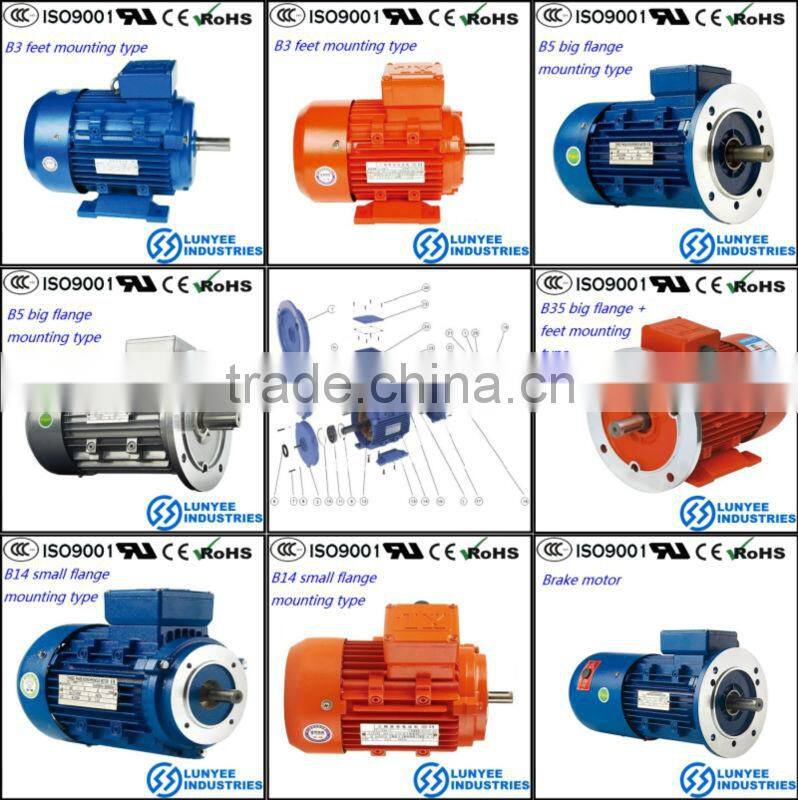

Mounting type:
Please feel free to inform us your reqeust POWER,VOLTAGE,HZ,OUTPUT SPEED,TORQUE and QTY to get our information about sample, price, packing, leading time and any other related informations!
