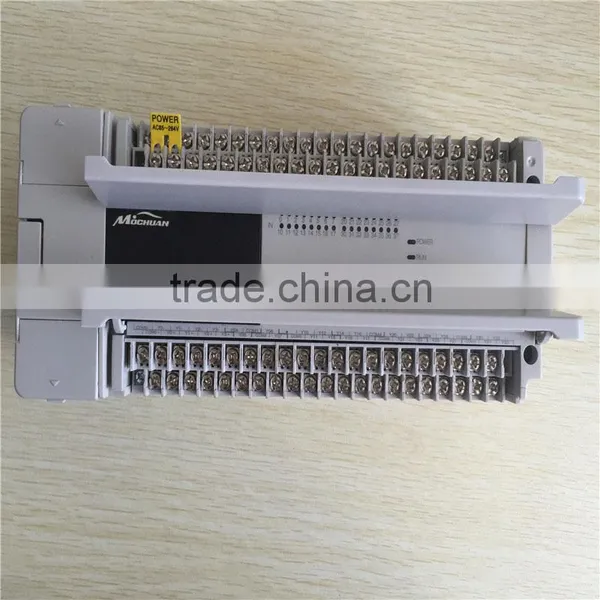

40 IO plc basic relay type using AC input DC output low cost price industrial logic controller
What does MOCHUAN DRIVES can do for you ?
MOCHUAN DRIVES brings energy saving , speed increasing and more healthy life !
What is specifications of MU2V transistor output PLC controller?
MU2V series PLC is a motion control programmable controller ,8 channel independent 200KHz high-speed input and output , 4 road differential input and output ,to support a variety of motion control instruction and 2/3/4 axis linear interpolation and 2 axis circular arc interpolation instructions ,to meet the needs of users for a variety of motion control .
What's advantage of MU2V PLC controller?
What's all items of MU2V transistor output PLC controller?
What's technical specification sheet of MU series PLC controller?
| MU2V | MU2H | MU1H | ||
| general performance | max logical I/O point | 512 | 512 | 256 |
| max number of special modules | 8 | 8 | 0 | |
| high-speed pulse output | 8X200Khz support 4 road differential output | 2X100kHz( transistor output type) | ||
| single-phase counting channel | 8X200Khz support 4 road differential input | 2X50kHz;4X10Khz | 2X50kHz;4X10Khz | |
| double-phase counting channel | 4X200kHz | 1X25kHz ;2X5kHz | 1X20kHz ;2X10kHz | |
| counting frequency comblined | 800kHz | 100kHz | 80kHz | |
| basic instruction execution time | 0.050μs | 0.084μs | 0.084μs | |
| time to a program's instructions | 0.6ms/1K step (1) | 1ms/1K step (1) | 1ms/1K step(1) | |
| real-time clock | support at least 3years when power supply drop | |||
| constant scanning way | support | |||
| digital filter function | 0.8 , 1.6 , 3.2 , 6.4 ,12.8 ,25.6 , 51.2ms to adjust | |||
| directive types | basic instruction | 31 pcs | 31 pcs | 31 pcs |
| step instruction | 2 pcs | 2 pcs | 2 pcs | |
| applied instruction | 264 pcs | 234 pcs | 174 pcs | |
| storage | user program | 32 k step | 24 K step | 12 k step |
| element holder | user set | user set | 2 K character | |
| components to keep time | keep battery back-up for 3 years | |||
| element resources | timer | 100ms 100ms precision:T0~T209 total 210 points (0.1~3276.7 secs) | ||
| 10ms 10ms precision:T210~T251 total 42 points (0.01~327.67 secs) | ||||
| 1ms 1ms precision:T252~T255 total 4points (0.001~32.76 secs) | ||||
| counter | 16 bit 16 bit more:C0~C199 total 200 points | |||
| 32 bit 32 bit minus: C200~C234 total 35 points | ||||
| high-speed counter | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting(32 bit) C235~C245 | |
| single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | ||
| double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | ||
| data register | D0~D32767 | D0~D7999 | D0~D3999 | |
| local data register | V0~V63 | V0~V63 | V0~V63 | |
| indexed addressing registers | Z0~Z63 | Z0~Z15 | Z0~Z15 | |
| a special data register | SD0~SD511 | SD0~SD511 | SD0~SD511 | |
| auxiliary relay | M0~M8191 | M0~M4095 | MO~M2047 | |
| local auxiliary relay | LM0~LM63 | LM0~LM63 | LM0~LM63 | |
| special auxiliary relay | SM0~SM511 | SM0~SM511 | SM0~SM511 | |
| state relay | S0~S1023 | S0~S1023 | S0~S1023 | |
| interrupt resources | internal timer interrupt | 3 pcs | 3 pcs | 3 pcs |
| external interrupt | 16 pcs | 16 pcs | 16 pcs | |
| high speed counter interrupt | 8 pcs | 6 pcs | 6 pcs | |
| serial port break | 12 pcs | 12 pcs | 8 pcs | |
| PTO output complete interrupt | 8 pcs | 2 pcs | 2 pcs | |
| power loss | 1 pcs | 1 pcs | 1 pcs | |
| communication resources | COM port | PORT0:RS232; PORT1:RS485 extensible RS232/RS485/CAN and network card | PORT0:RS232;PORT1:RS485;PORT2;CAN | |
| security policy | basic strategy | cryptography engineering ,application Passwords;Upload password, download password ,MTCN | ||
| advanced policy | Ban on formatting,Forbidden to upload;Password retry count limit (2) | |||
| (1)1K step standard benchmark program , the basic instruction is 60% ,application instructions is 40%. | ||||
| (2)password authentication retry within 30 secs more than 5 times lock password authentication function for 10 mins. | ||||

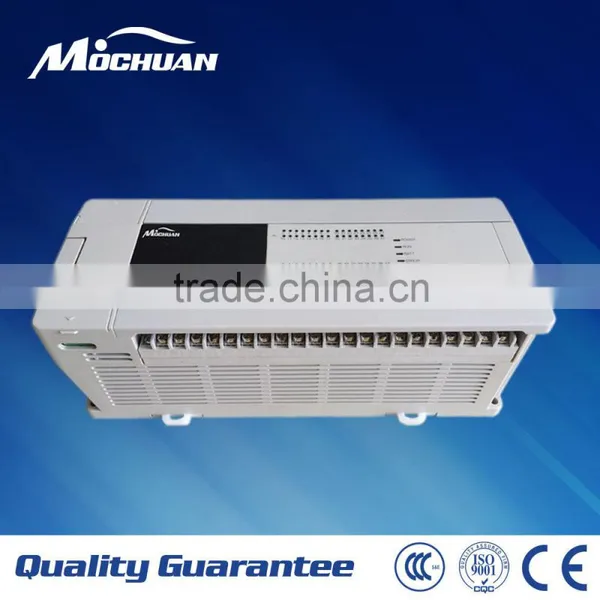

Show of MU series transistor output PLC controller
4.0 industrial show - transistor output PLC controller
Network Control -PLC controller
Super System Extension - transistor output PLC controller
Expansion CARDS and special function module
what is the application of low cost PLC controller?
Packaging ,shipping ,Trade Terms - transistor output PLC controller
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 1 years
Why choose Us ? -PLC controller
1.More than 20 years' experience in bearing manufacturing:the complete industry chain: continuous material
suppliers,strong supply capacity, perfect system of freight forwarding.
2.Customization production:size, model, and package are per clients' demand.
3.Realizable quality: professional design team, strict quality control system and strong transportation cooperation.
4.First-class pre and after service: we ensure the well processing of the practice of our products for customers.
Our certification -PLC
Q1. Are your product quality mature and stable ? And Wich are the industry has run successfully ?
Yes , of course . We have CE ,CCC ,and ISO90001 certification .
Mature applicable in printing ,pharmaceutical ,auto manufacturing ,electronic power , medical devices etc
Q2. How many the maximum points can up of your PLC ? What is the maximum power of your frequency inverter ?
PLC the main module at least 14 points ,maximum 60points ,can extend to 512 points .
The power of frequency inverter can up to 400KW .
Q3. How many voltage are of PLC ? Whether the voltage can be customized according to customers ?
PLC the input voltage AC110V ~AC240V ,DC24V .Or according to customer's custom.
Q4. What is guarantee of your product ?
All series products of the company to provide one year warranty and lifetime maintenance .
