What can Mochuan do for you
Mochuan drivers give you energy saving, speed increasing, and more healthy life.
What is MU series surge protection PLC
MU1H series PLC is a small scale of programmable controller ,small and powerful with the best price versus
performance ratio ,can be integrated analog and independently controlled ,also can use agreement of Modbus and MXLink to be MU2H/2V series to remote I/O extension module and remote analog quantity control module uses , easily build control network .
What is advantage of MU1H series surge protection PLC
| MU1H series outstanding feature | |||||||
| High Stability and High Reliability | |||||||
| 1.Wide operating voltage range: rated operational valtage AC100~240V ,Allowable operating voltage rangeAC85~264V | |||||||
| 2.board a strict anti-corrosion treatment to adapt in the adverse environments , working temperature -5℃~55℃,can withstand the vibration and shock . | |||||||
| 3.the user program permanent preservation? | |||||||
| 4.excellent anti-interference? | |||||||
| 5.Isolation of 24V DC power supply output ,can be directly to the sensor ,HMI,external and intermediate relay to provide power. | |||||||
| High Speed and High Capacity | |||||||
| program capacity is 24 steps with 0.084μs processing speed | |||||||
| High-speed Count and Output | |||||||
| supply various high-speed input and output terminal with built-in pluse output,so various axial control is realized. | |||||||
| Powerful Comunacation Function | |||||||
| 1.supply free port, Mobus,Mxlink (MIKOM dedicated comunacation protocol) providing ease of systems integration 2.CAN and 485 terminal can be intergrated. | |||||||
| Reliable Security Program | |||||||
| 1multi-level password-protected ,all the main program and subroutines can be encrypted separately; Program can be binding specified serial number of PLC ,to effectively protect the user intellectual property rights . | |||||||
| Function of intergrating analog | |||||||
| Intergrate various 12 analog input and output, simplify the design of samll application system | |||||||
| Real Time Clock? | |||||||
| The main module built-in RTC ,and permanent calendar function is supplied. |
What is techinology specification of surge protection MU series PLC
| MU2V | MU2H | MU1H | ||
| general performance | max logical I/O point | 512 | 512 | 256 |
| max number of special modules | 8 | 8 | 0 | |
| high-speed pulse output | 8X200Khz support 4 road differential output | 2X100kHz( transistor output type) | ||
| single-phase counting channel | 8X200Khz support 4 road differential input | 2X50kHz;4X10Khz | 2X50kHz;4X10Khz | |
| double-phase counting channel | 4X200kHz | 1X25kHz ;2X5kHz | 1X20kHz ;2X10kHz | |
| counting frequency comblined | 800kHz | 100kHz | 80kHz | |
| basic instruction execution time | 0.050μs | 0.084μs | 0.084μs | |
| time to a program's instructions | 0.6ms/1K step (1) | 1ms/1K step (1) | 1ms/1K step(1) | |
| real-time clock | support at least 3years when power supply drop | |||
| constant scanning way | support | |||
| digital filter function | 0.8 , 1.6 , 3.2 , 6.4 ,12.8 ,25.6 , 51.2ms to adjust | |||
| directive types | basic instruction | 31 pcs | 31 pcs | 31 pcs |
| step instruction | 2 pcs | 2 pcs | 2 pcs | |
| applied instruction | 264 pcs | 234 pcs | 174 pcs | |
| storage | user program | 32 k step | 24 K step | 12 k step |
| element holder | user set | user set | 2 K character | |
| components to keep time | keep battery back-up for 3 years | |||
| element resources | timer | 100ms 100ms precision:T0~T209 total 210 points (0.1~3276.7 secs) | ||
| 10ms 10ms precision:T210~T251 total 42 points (0.01~327.67 secs) | ||||
| 1ms 1ms precision:T252~T255 total 4points (0.001~32.76 secs) | ||||
| counter | 16 bit 16 bit more:C0~C199 total 200 points | |||
| 32 bit 32 bit minus: C200~C234 total 35 points | ||||
| high-speed counter | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting(32 bit) C235~C245 | |
| single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | ||
| double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | ||
| data register | D0~D32767 | D0~D7999 | D0~D3999 | |
| local data register | V0~V63 | V0~V63 | V0~V63 | |
| indexed addressing registers | Z0~Z63 | Z0~Z15 | Z0~Z15 | |
| a special data register | SD0~SD511 | SD0~SD511 | SD0~SD511 | |
| auxiliary relay | M0~M8191 | M0~M4095 | MO~M2047 | |
| local auxiliary relay | LM0~LM63 | LM0~LM63 | LM0~LM63 | |
| special auxiliary relay | SM0~SM511 | SM0~SM511 | SM0~SM511 | |
| state relay | S0~S1023 | S0~S1023 | S0~S1023 | |
| interrupt resources | internal timer interrupt | 3 pcs | 3 pcs | 3 pcs |
| external interrupt | 16 pcs | 16 pcs | 16 pcs | |
| high speed counter interrupt | 8 pcs | 6 pcs | 6 pcs | |
| serial port break | 12 pcs | 12 pcs | 8 pcs | |
| PTO output complete interrupt | 8 pcs | 2 pcs | 2 pcs | |
| power loss | 1 pcs | 1 pcs | 1 pcs | |
| communication resources | COM port | PORT0:RS232; PORT1:RS485 extensible RS232/RS485/CAN and network card | PORT0:RS232;PORT1:RS485;PORT2;CAN | |
| security policy | basic strategy | cryptography engineering ,application Passwords;Upload password, download password ,MTCN | ||
| advanced policy | Ban on formatting,Forbidden to upload;Password retry count limit (2) | |||
| (1)1K step standard benchmark program , the basic instruction is 60% ,application instructions is 40%. | ||||
| (2)password authentication retry within 30 secs more than 5 times lock password authentication function for 10 mins. | ||||
What are all items of MU1H series surge protection PLC
| MU1H series selection table | |||||
| Model | Input | Output | Output type | Size (L * W *H) | Derivation Function |
| MU1H-0806MR | 8 | 6 | Relay output | 126*90*72 | |
| MU1H-0806MT | 8 | 6 | Transistor output | 126*90*72 | |
| MU1H-0806MR1 | 8 | 6 | Relay output | 126*90*72 | 4 channel analog inputs |
| MU1H-0806MT1 | 8 | 6 | Transistor output | 126*90*72 | 2 channel analog output |
| MU1H-1208MR | 12 | 8 | Relay output | 126*90*72 | |
| MU1H-1208MT | 12 | 8 | Transistor output | 126*90*72 | |
| MU1H-1208MR1 | 12 | 8 | Relay output | 126*90*72 | 2 channel analog inputs |
| MU1H-1208MT1 | 12 | 8 | Transistor output | 126*90*72 | 1 channel analog output |
| MU1H-1614MR | 16 | 14 | Relay output | 126*90*72 | |
| MU1H-1614MT | 16 | 14 | Transistor output | 126*90*72 | |
| MU1H-1612MR | 16 | 12 | Relay output | 158*90*74 | Support two analog extension module |
| MU1H-1612MT | 16 | 12 | Transistor output | 158*90*74 | |
| MU1H-1612MT | 16 | 12 | Transistor output | 158*90*74 | |
| MU1H-2416MR | 24 | 16 | Relay output | 158*90*74 | |
| MU1H-2416MT | 24 | 16 | Transistor output | 158*90*74 | |
| MU1H-3624MR | 36 | 24 | Relay output | 158*90*74 | |
| MU1H-3624MT | 36 | 24 | Transistor output | 158*90*74 | |
| MU1H-CAN series selection table | |||||
| MU1H-0806MR-CAN | 8 | 6 | Relay output | 126*90*72 | |
| MU1H-0806MT-CAN | 8 | 6 | Transistor output | 126*90*72 | |
| MU1H-0806MR1-CAN | 8 | 6 | Relay output | 126*90*72 | 4 channel analog inputs |
| MU1H-0806MT1-CAN | 8 | 6 | Transistor output | 126*90*72 | 2 channel analog output |
| MU1H-1208MR-CAN | 12 | 8 | Relay output | 126*90*72 | |
| MU1H-1208MT-CAN | 12 | 8 | Transistor output | 126*90*72 | |
| MU1H-1208MR1-CAN | 12 | 8 | Relay output | 126*90*72 | 2 channel analog inputs |
| MU1H-1208MT1-CAN | 12 | 8 | Transistor output | 126*90*72 | 1 channel analog output |
| MU1H-1614MR-CAN | 16 | 14 | Relay output | 126*90*72 | |
| MU1H-1614MT-CAN | 16 | 14 | Transistor output | 126*90*72 | |
| MU1H-2416MR-CAN | 24 | 16 | Relay output | 158*90*74 | |
| MU1H-2416MT-CAN | 24 | 16 | Transistor output | 158*90*74 | |
| MU1H-3624MR-CAN | 36 | 24 | Relay output | 158*90*74 | |
| MU1H-3624MT-CAN | 36 | 24 | Transistor output | 158*90*74 | |
| MU1H series integrated temperature control PLC | |||||
| MU1H-0816MTD-6LC | 8 | 16 | Transistor output | 126*90*72 | Thermocouple input 6 channels |
| MU1H-0814MTD-4LC | 8 | 14 | Transistor output | 126*90*72 | 4 channel thermocouple input |
| MU1H-9LC | 9 | Transistor output | 126*90*72 | 9 channel thermocouple input/thermal resistance | |

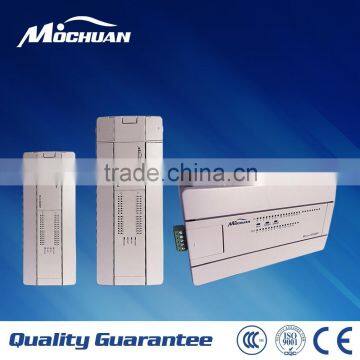

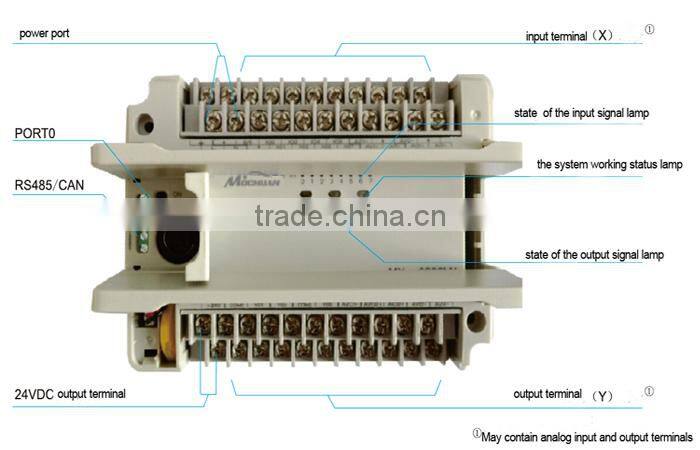

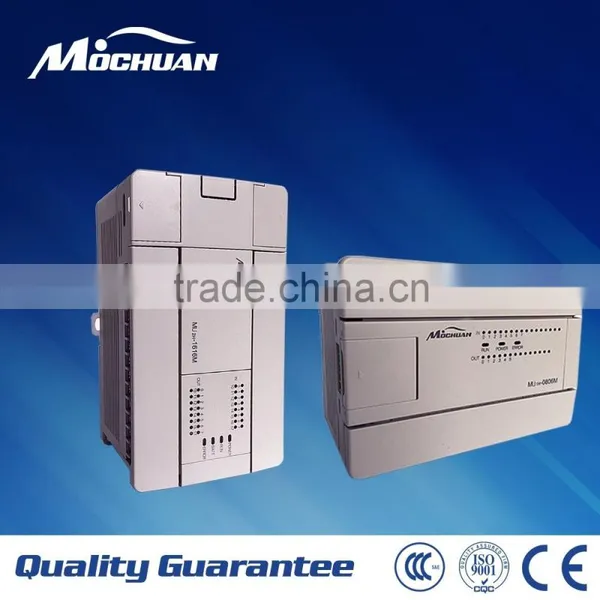

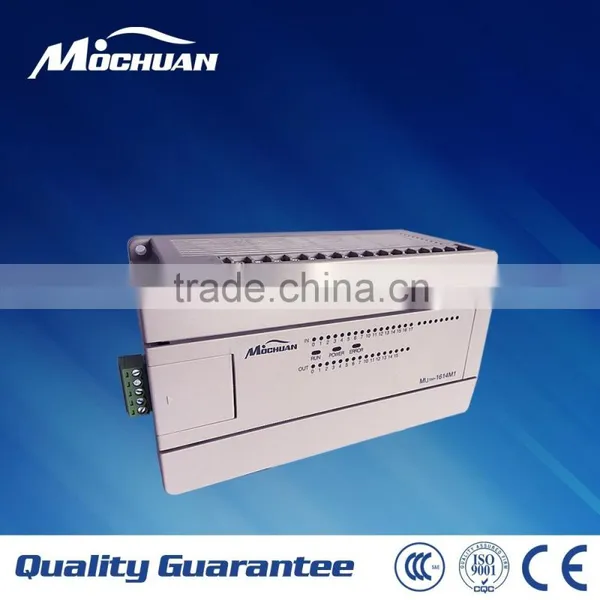

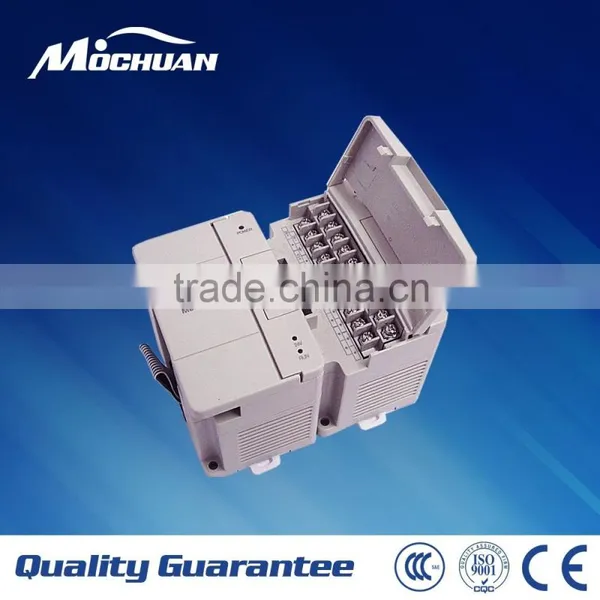

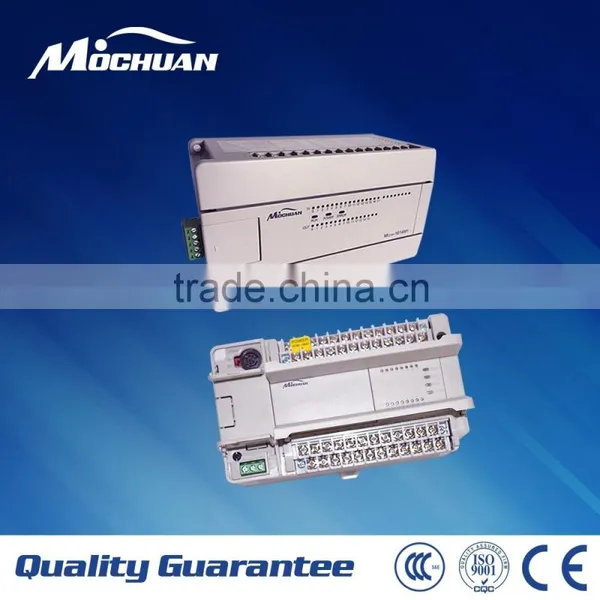

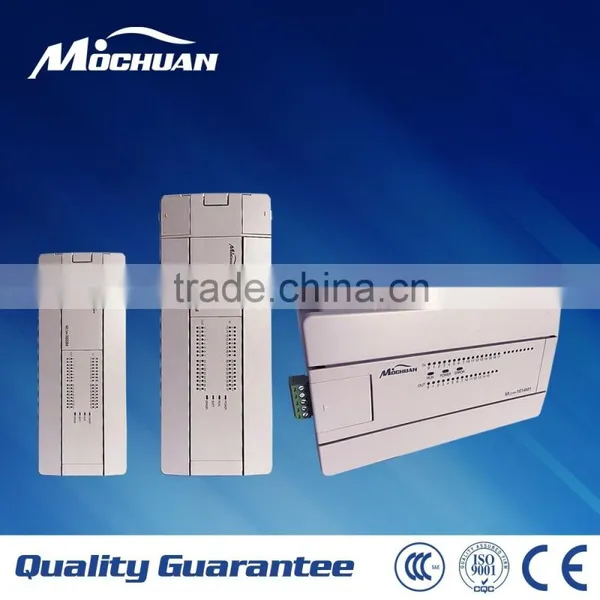

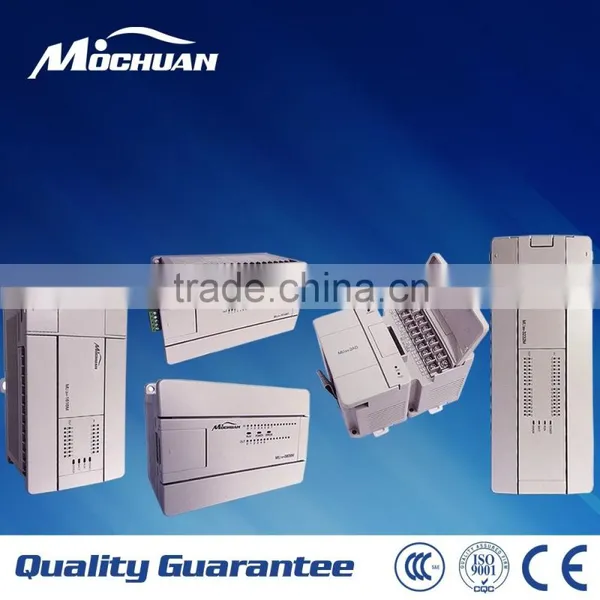

Show of MU series surge protection PLC
4.0 industrial show of MU series surge protection PLC

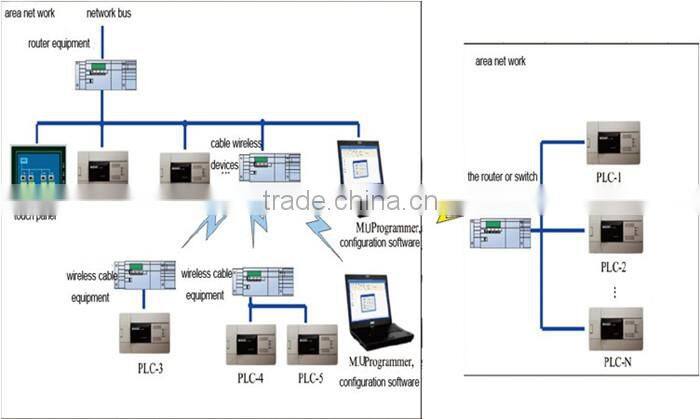

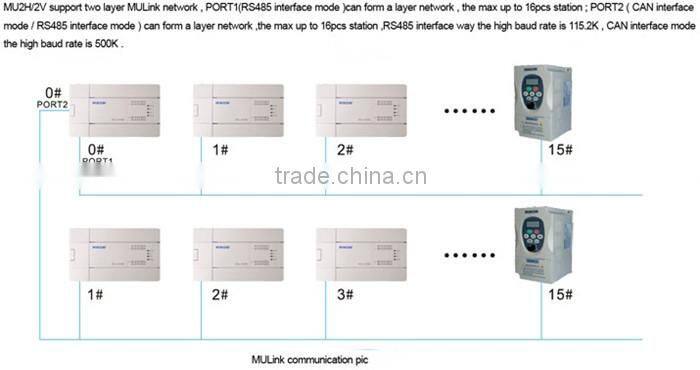

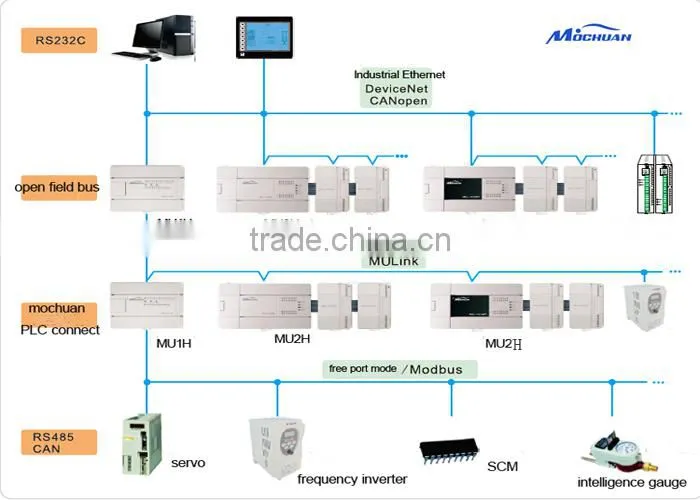

Network Control of MU series surge protection PLC

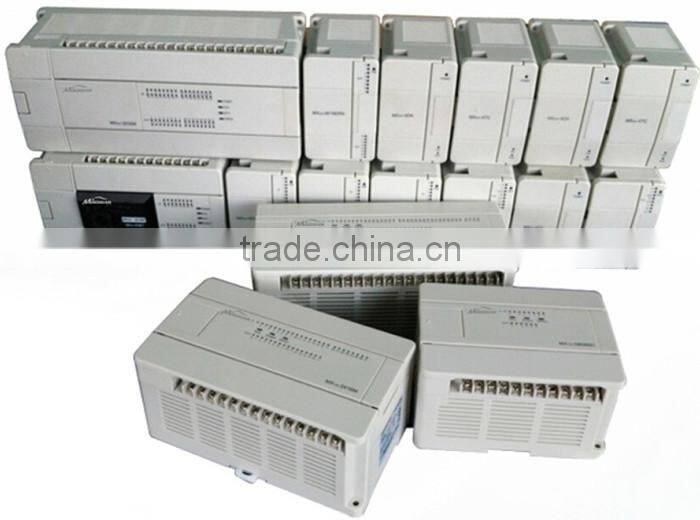

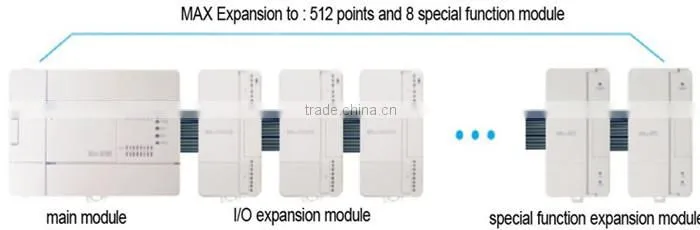

Super System Extension of MU series surge protection PLC

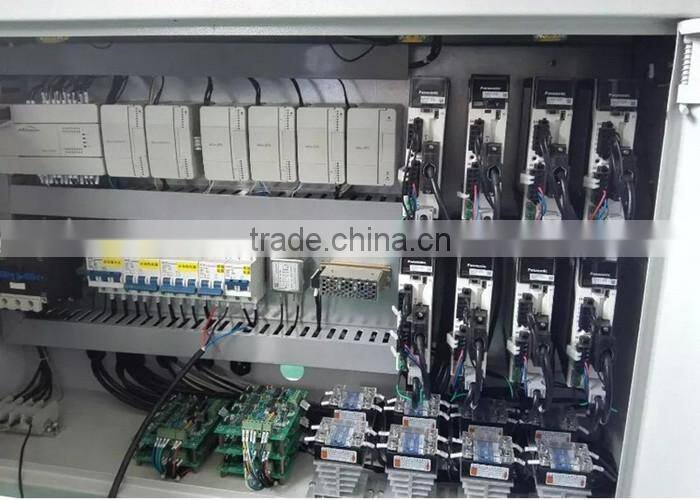

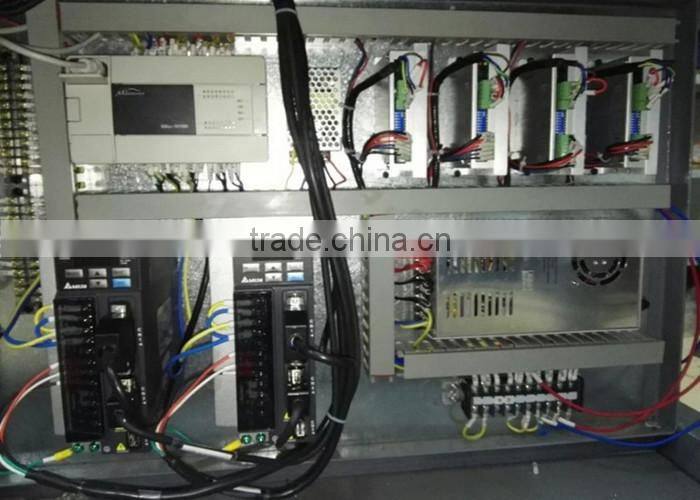

What's the application of surge protection PLC
What's our packaging&shipping and trade term
Shipping
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 days for samples, 5~25days for batch goods.
Payment Terms
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery);
2. MOQ: 1 set;
3. Warranty: 1 year.
Why choose us
1. More than 15 Years' Experiece in Drivers Manufacturing: the complete industry chain: the strong R&D team, the
powerful supply capacity, the prefect system of freight of forwarding, and the frst-class pre-sale service in any
problem in operating PLC and converter.
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
Company View
Our Certification
Q1. Are your product quality mature and stable ? And Wich are the industry has run successfully ?
Yes , of course . We have CE ,CCC ,and ISO90001 certification . Mature applicable in printing ,pharmaceutical auto manufacturing ,electronic power , medical devices etc
Q2. How many the maximum points can up of your PLC ? What is the maximum power of your frequency inverter ?
PLC the main module at least 14 points ,maximum 60points ,can extend to 512 points .The power of frequency inverter can up to 400KW .
Q3. How many voltage are of PLC ? Whether the voltage can be customized according to customers ?
PLC the input voltage AC110V ~AC240V ,DC24V .Or according to customer's custom.
Q4. What is guarantee of your product ?
All series products of the company to provide one year warranty and lifetime maintenance .
