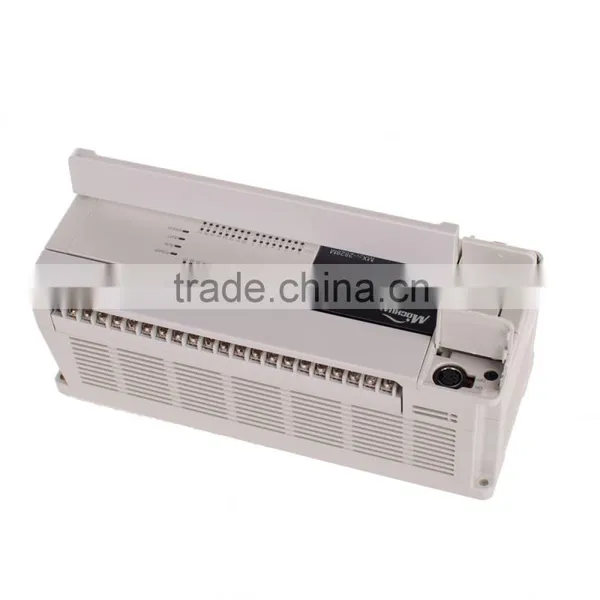

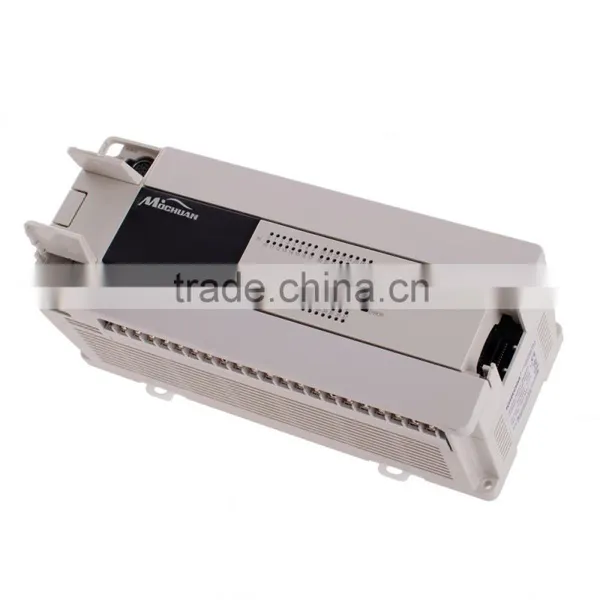

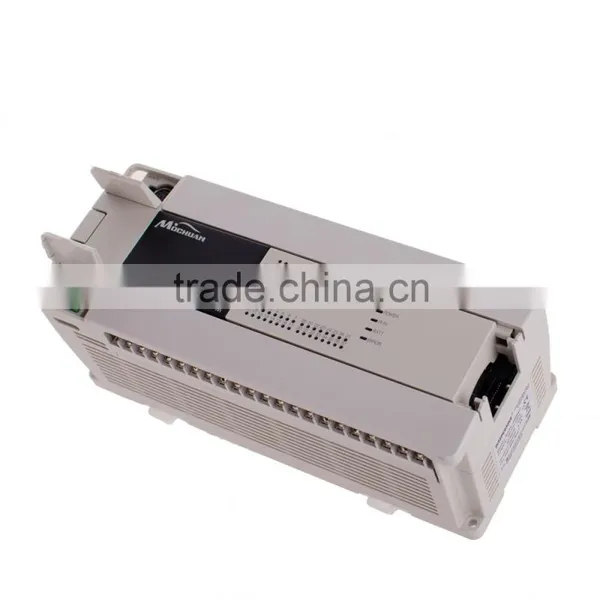

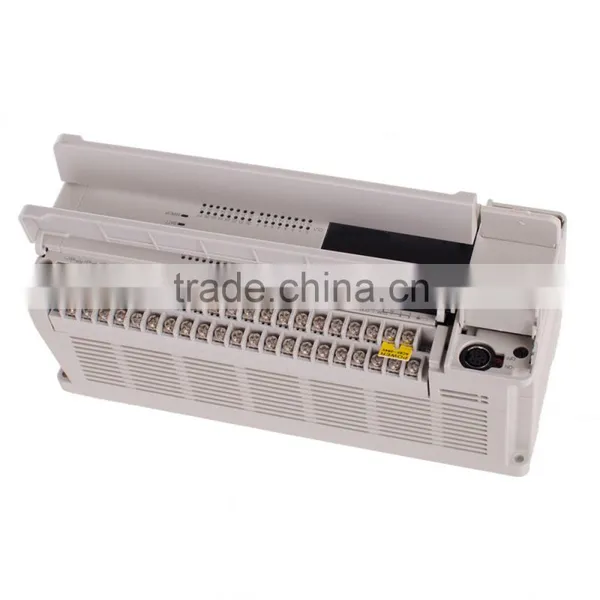

RS485/RS232/CAN/Ethernet interface PLC logic controller for pharmaceutical machinery
MU2V series PLC is a motion control plc control system,8 channel independent 200KHz high-speed input and output , 4 road differential input and output ,to support a variety of motion control instruction and 2/3/4 axis linear interpolation and 2 axis circular arc interpolation instructions ,to meet the needs of users for a variety of motion control .
| Technical Data 1 of plc control system | ||||
| MU2V | MU2H | MU1H | ||
| general performance | max logical I/O point | 512 | 512 | 256 |
| max number of special modules | 8 | 8 | 0 | |
| high-speed pulse output | 8X200Khz support 4 road differential output | 2X100kHz( transistor output type) | ||
| single-phase counting channel | 8X200Khz support 4 road differential input | 2X50kHz;4X10Khz | 2X50kHz;4X10Khz | |
| double-phase counting channel | 4X200kHz | 1X25kHz ;2X5kHz | 1X20kHz ;2X10kHz | |
| counting frequency comblined | 800kHz | 100kHz | 80kHz | |
| basic instruction execution time | 0.050μs | 0.084μs | 0.084μs | |
| time to a program's instructions | 0.6ms/1K step (1) | 1ms/1K step (1) | 1ms/1K step(1) | |
| real-time clock | support at least 3years when power supply drop | |||
| constant scanning way | support | |||
| digital filter function | 0.8 , 1.6 , 3.2 , 6.4 ,12.8 ,25.6 , 51.2ms to adjust | |||
| directive types | basic instruction | 31 pcs | 31 pcs | 31 pcs |
| step instruction | 2 pcs | 2 pcs | 2 pcs | |
| applied instruction | 264 pcs | 234 pcs | 174 pcs | |
| storage | user program | 32 k step | 24 K step | 12 k step |
| element holder | user set | user set | 2 K character | |
| components to keep time | keep battery back-up for 3 years | |||
| Technical Data 2 of plc control system | ||||
| MU2V | MU2H | MU1H | ||
| element resources | timer | 100ms 100ms precision:T0~T209 total 210 points (0.1~3276.7 secs) | ||
| 10ms 10ms precision:T210~T251 total 42 points (0.01~327.67 secs) | ||||
| 1ms 1ms precision:T252~T255 total 4points (0.001~32.76 secs) | ||||
| counter | 16 bit 16 bit more:C0~C199 total 200 points | |||
| 32 bit 32 bit minus: C200~C234 total 35 points | ||||
| high-speed counter | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting (32 bit) C235~C245 | single-phase input single counting(32 bit) C235~C245 | |
| single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | single phase input double counting (32 bit) C246~C250 | ||
| double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | double phase input double counting(32 bit) C251~C255 | ||
| data register | D0~D32767 | D0~D7999 | D0~D3999 | |
| local data register | V0~V63 | V0~V63 | V0~V63 | |
| indexed addressing registers | Z0~Z63 | Z0~Z15 | Z0~Z15 | |
| a special data register | SD0~SD511 | SD0~SD511 | SD0~SD511 | |
| auxiliary relay | M0~M8191 | M0~M4095 | MO~M2047 | |
| local auxiliary relay | LM0~LM63 | LM0~LM63 | LM0~LM63 | |
| special auxiliary relay | SM0~SM511 | SM0~SM511 | SM0~SM511 | |
| state relay | S0~S1023 | S0~S1023 | S0~S1023 | |
| interrupt resources | internal timer interrupt | 3 pcs | 3 pcs | 3 pcs |
| external interrupt | 16 pcs | 16 pcs | 16 pcs | |
| high speed counter interrupt | 8 pcs | 6 pcs | 6 pcs | |
| serial port break | 12 pcs | 12 pcs | 8 pcs | |
| PTO output complete interrupt | 8 pcs | 2 pcs | 2 pcs | |
| power loss | 1 pcs | 1 pcs | 1 pcs | |

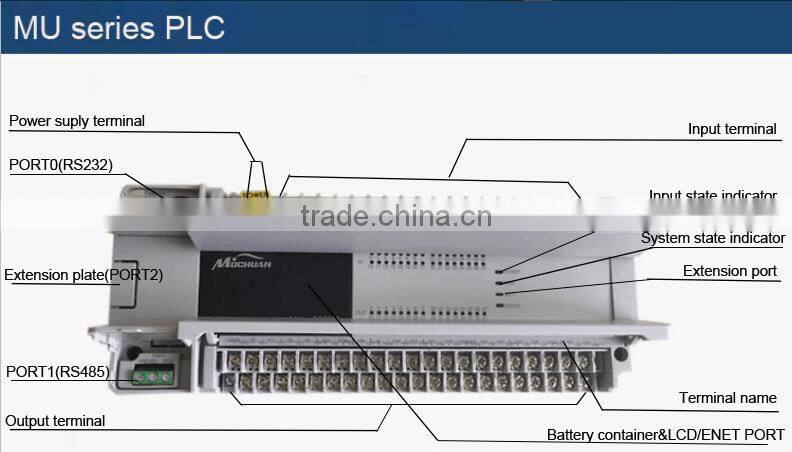

| communication resources | COM port | PORT0:RS232; PORT1:RS485 extensible RS232/RS485/CAN and network card | PORT0:RS232;PORT1:RS485;PORT2;CAN | |
| security policy | basic strategy | cryptography engineering ,application Passwords;Upload password, download password ,MTCN | ||
| advanced policy | Ban on formatting,Forbidden to upload;Password retry count limit (2) | |||
| (1)1K step standard benchmark program , the basic instruction is 60% ,application instructions is 40%. | ||||
| (2)password authentication retry within 30 secs more than 5 times lock password authentication function for 10 mins. | ||||
| All items of MU2V series plc control system | ||||

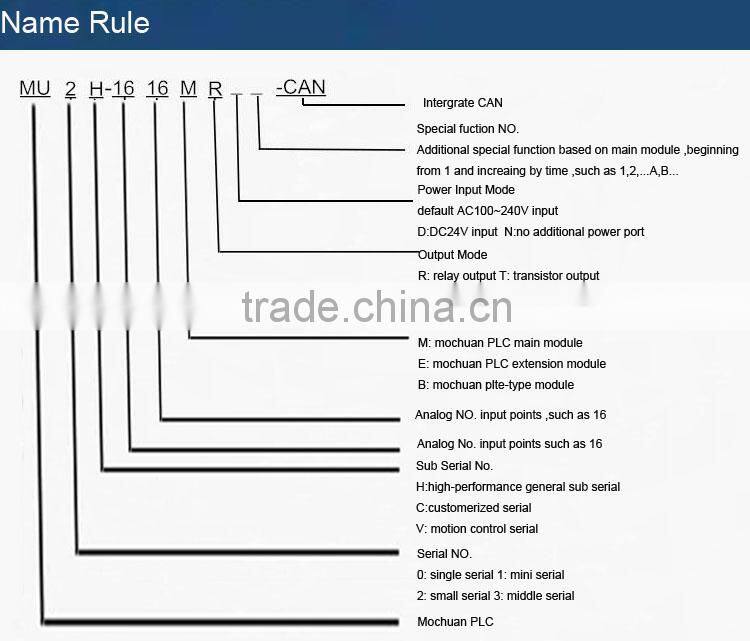

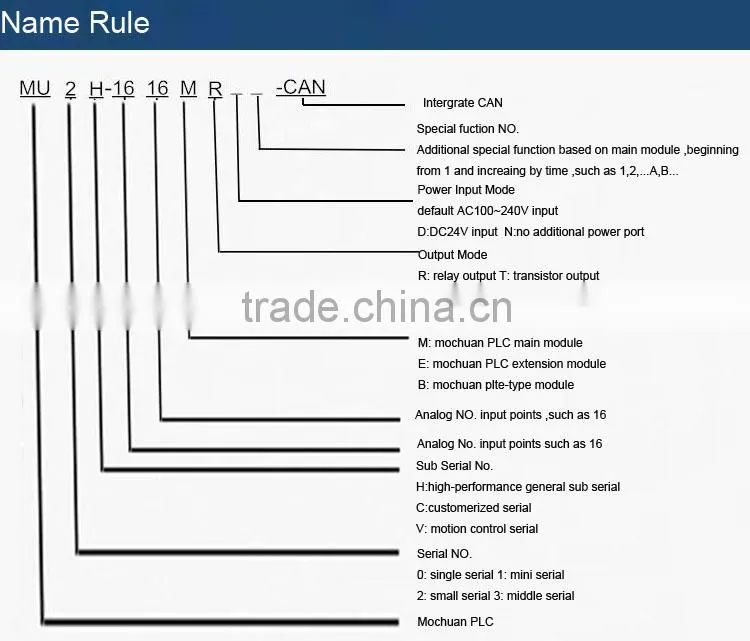

| Model | Input | Output | Output Type | Size( L*W*H)/mm |
| MU2V-1616MT | 16 | 16 | transisitor output | 158*90*83 |
| MU2V-1616MT-CAN | 16 | 16 | 158*90*83 | |
| support 8 road high-speed pulse output | ||||
| MU2V-1616MT1*1 | 16 | 16 | transistor output | 158*90*83 |
| MU2V-1616MT1-CAN*1 | 16 | 16 | transisitor output | 158*90*83 |
| support 4 road high-speed pulse output | ||||

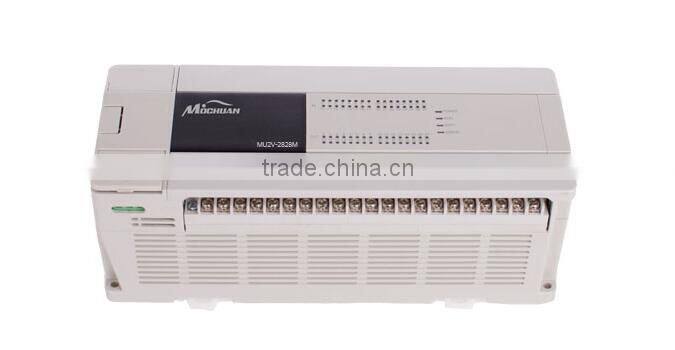

| MU2V-2828MT*2 | 28 | 28 | transistor output | 226*90*83 |
| MU2V-2828MT-CAN*2 | 28 | 28 | transisitor output | 226*90*83 |
| support 4differential input and 4 road high speed differential output | ||||
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery; trade assurance from Alibaba with 10000dollars
2. MOQ: 1pcs
3. Warranty : change good for free for 3 months, free miantance for 12 months, and techinical support for life
Why Choose Us?

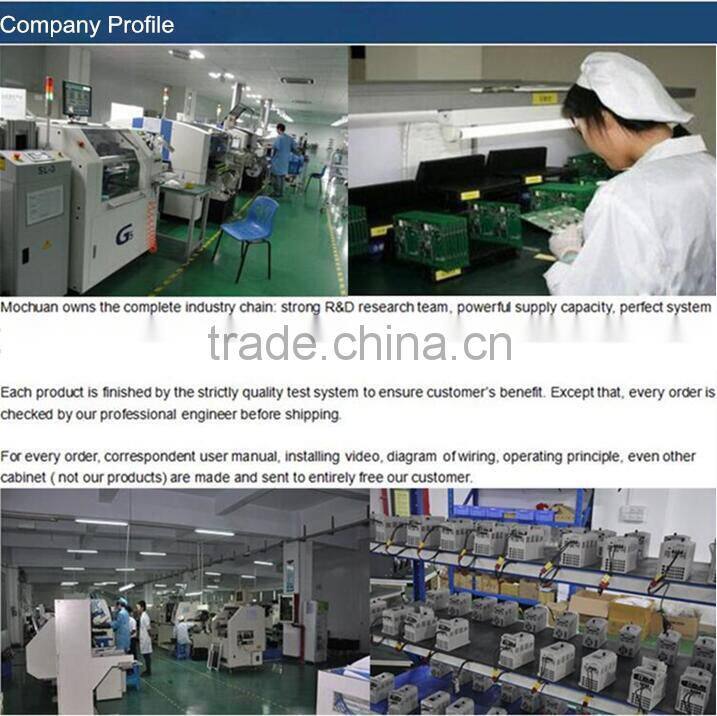

1.More than 20 years' experience in bearing manufacturing plc control system :the complete industry chain: continuous material suppliers,strong supply capacity, perfect system of freight forwarding.
2.Customization production:size, model, and package are per clients' demand.
3.Realizable quality: professional design team, strict quality control system and strong transportation cooperation.
4.First-class pre and after service: we ensure the well processing of the practice of our plc control system for customers.
Q1. Are your plc control system 's quality mature and stable ? And Wich are the industry has run successfully ?
Yes, of course. We have CE, CCC, and ISO90001 certification.

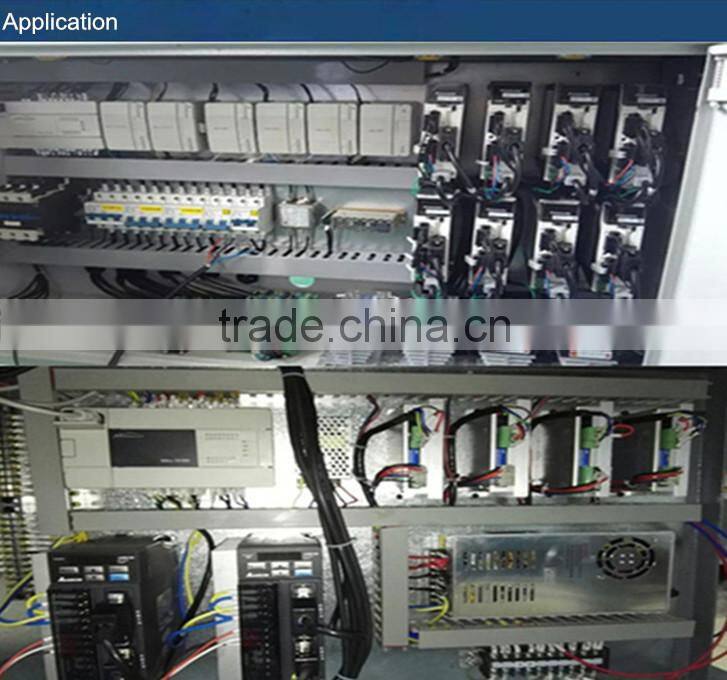

Mature applicable in printing, pharmaceutical,auto manufacturing, electronic power, medical devices etc.
Q2. How many the maximum points can up of your plc control system? What is the maximum power of plc control system ?

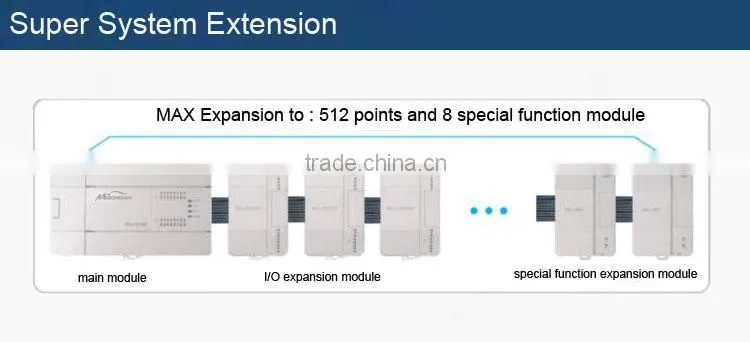

plc control system the main module at least 14 points, maximum 60points ,can extend to 512 points.
The power of plc control system can up to 400KW.
Q3. How many voltage are of plc control system ? Whether the voltage can be customized according to customers ?
plc control system the input voltage AC110V ~AC240V, DC24V. Or according to customer's custom.
Q4. What is guarantee of your plc control system ?
All series plc control system of the company to provide one year warranty and lifetime maintenance.
