elevator relay control industrial programming plc controller monitor
- 10000 Set / Sets per Month
- Shanghai Qingdao Guangzho
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Mochuan | Model Number: | MU1H-1208MT |
Product Description

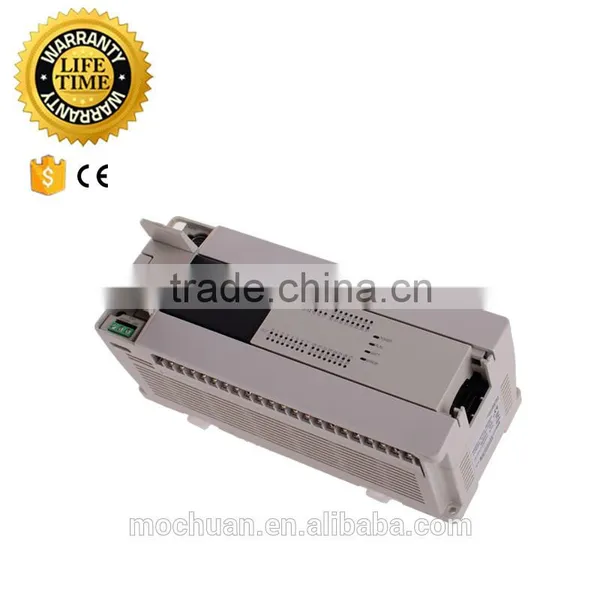

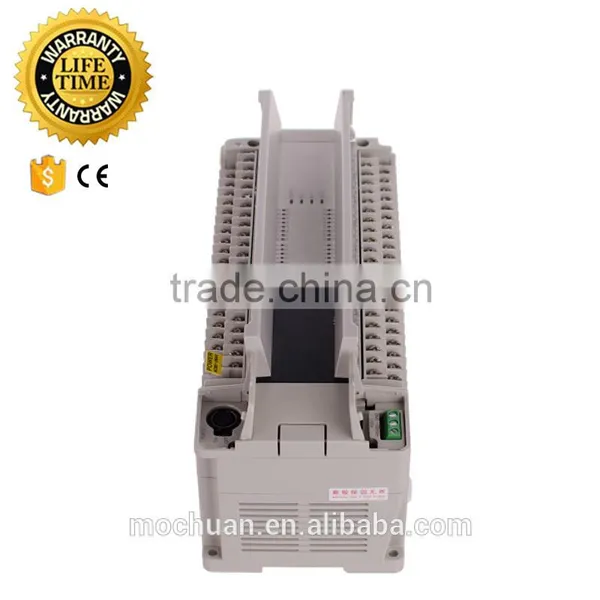

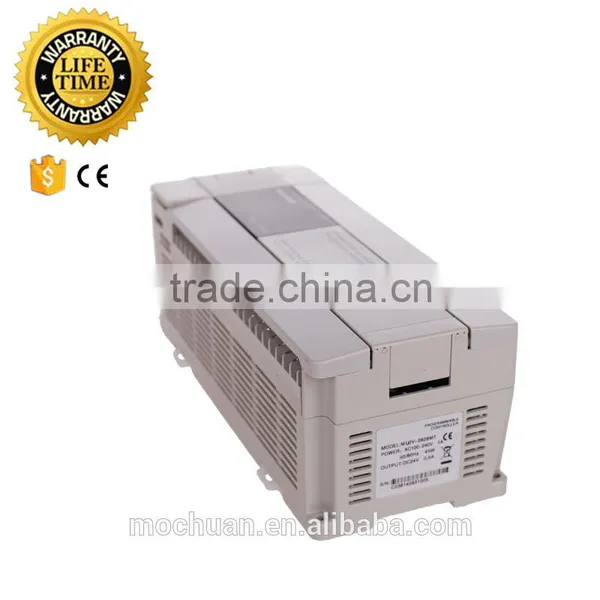

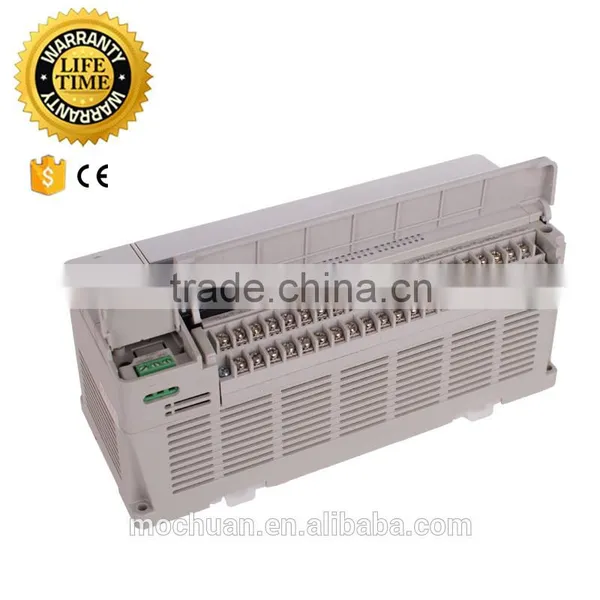

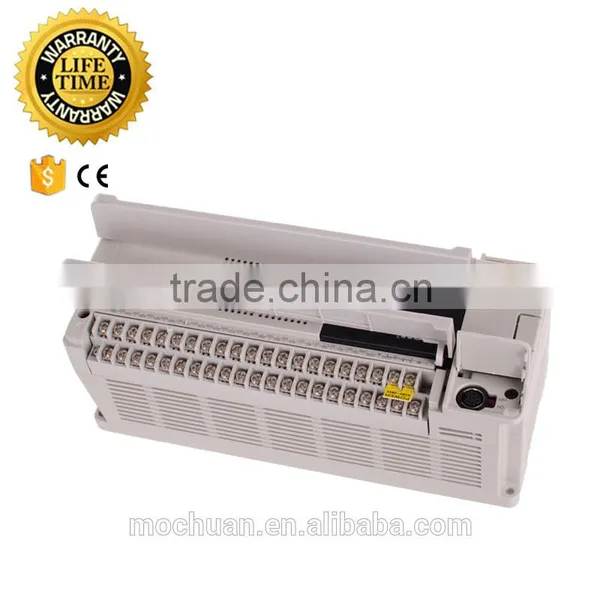

elevator relay control industrial programming plc controller monitor
MU1H series PLC is a small scale of plc controller monitor, small and powerful with the best price versus performance ratio ,can be integrated analog and indeependently controlled ,aslo can use agreement of Modbus and MXLink to be MU2H/2V series to remote I/O extension module and remote analog quantity control module uses, easily build control network .
| MU series PLC technical Specification Sheet of plc controller monitor | ||||
| General Performance | MU2V | MU2H | MU1H | |
| Max logical I/O point | 512 | 512 | 256 | |
| Max number of special modules | 8 | 8 | 0 | |
| High-speed pulse output | 8*200Khz support 4 road differential output | 2*100Khz(transistor output type) | ||
| Single-phase counting channel | 8*200Khz support 4 road differential input | 2*50Hz ;4*10Khz | 2*50Khz ;4*10Khz | |
| Double-phase counting channel | 4*200Khz | 1*25Khz , 2*5Khz | 1*20Khz ,2*10Khz | |
| Counting frequency comblined | 800Khz | 100Khz | 80Khz | |
| Basic instruction execution time | 0.050 μs | 0.084μs | 0.084μs | |
| Time to a program's instructions | 0.6ms/1K step | 1ms/1K step | 1ms/1K step | |
| Real-time clock | Support at least 3years when power supply drop | |||
| Constant scanning way | Support | |||
| Digital filter function | 0.8, 1.6, 3.2, 6.4,12.8, 25.6, 51.2 ms to adjust | |||
| Directive types | Basic instruction | 31pcs | 31pcs | 31pcs |
| Step instruction | 2pcs | 2pcs | 2pcs | |
| Applied instruction | 264pcs | 234pcs | 174pcs | |
| Storage | User program | 32K step | 24K step | 12K step |
| element holder | user set | user set | 2K character | |
| Components to keep time | Keep battery back-up for 3 years | |||
| MU1H series outstanding feature of plc controller monitor |
| High Stability and High Reliability |
| 1.Wide operating voltage range: rated operal voltage AC100~240V ,allowable operating voltage range AC85~264V |
| 2. Board a stict anti-corrosion treatment to adapt in the adverse environments ,working temperature -5℃~55℃ can with stand the vibration and shock |
| 3. The user program permanent preservation |
| 4. Excellent anti-interference |
| 5.Isolation of 24VDC power supply output , can be directly to the sensor ,HMI external and intermediate relay to provide power . |
| High Speed Count and Output |
| Supply various high-speed input and output terminal with built-in pulse output ,so various axial control is realized |
| High-speed and High Capacity |
| Program capacity is 24 steps with 0.084 μs processing speed |
| Powerful Communication Function |
| 1.Supply free port , Mobus ,MxLink (Mochuan dedicated comunacation protocol) provdiding ease of systems integration 2. CAN and 485 terminal can be intergrated |
| Reliable Security Program |
| 1. Multi-level password-protected ,all the main program and subroutines can be encrypted separately ,Program can be binding specified serial number of PLC ,to effectively protect the user intellectual property rights . |
| Function of Intergrating Analog |
| Intergrate various 12 analog input and output ,simplify the design of small application |
| Real Time Clock |
| The main module built-in RTC and permanent calendar function is supplied |
| MU1H series selection table of plc controller monitor | |||||
| Model | Input | Output | Output type | Size(L*W*H) | Derviation Function |
| MU1H-0806MR | 8 | 6 | Relay | 126*90*72 | - |
| MU1H-0806MT | 8 | 6 | Transistor | - | |
| MU1H-0806MR1 | 8 | 6 | Relay | 4 channel analog inputs | |
| MU1H-0806MT1 | 8 | 6 | Transistor | 2channel analog output | |
| MU1H-1208MR | 12 | 8 | Relay | - | |
| MU1H-1208MT | 12 | 8 | Transistor | - | |
| MU1H-1208MR1 | 12 | 8 | Relay | 2 channel analog inputs | |
| MU1H-1208MT1 | 12 | 8 | Transistor | 1 channel analog output | |
| MU1H-1614MR | 16 | 14 | Relay | - | |
| MU1H-1614MT | 16 | 14 | Transistor | Support two analog extension module | |
| MU1H-1612MR | 16 | 12 | Relay | 158*90*74 | - |
| MU1H-1612MT | 16 | 12 | Transistor | - | |
| MU1H-2416MR | 24 | 16 | Relay | - | |
| MU1H-2416MT | 24 | 16 | Transistor | - | |
| MU1H-3624MR | 36 | 24 | Relay | - | |
| MU1H-3624MR | 36 | 24 | Relay | - | |
| MU1H series selection table | |||||
| Model | Input | Output | Output type | Size(L*W*H) | Derivation Function |
| MU1H-0806MR | 8 | 6 | Relay | 126*90*72 | - |
| MU1H-0806MT | 8 | 6 | Transistor | - | |
| MU1H-0806MR1 | 8 | 6 | Relay | 4 channel analog inputs | |
| MU1H-0806MT1 | 8 | 6 | Transistor | 2 channel analog output | |
| MU1H-1208MR | 12 | 8 | Relay | - | |
| MU1H-1208MT | 12 | 8 | Transistor | - | |
| MU1H-1208MR1 | 12 | 8 | Relay | 2 channel analog inputs | |
| MU1H-1208MT1 | 12 | 8 | Transistor | 1 channel analog output | |
| MU1H-1614MR | 16 | 14 | Relay | - | |
| MU1H-1614MT | 16 | 14 | Transistor | - | |
| MU1H-1612MR | 16 | 12 | Relay | 158*90*74 | Support two analog extension moule |
| MU1H-1612MT | 16 | 12 | Transistor | ||
| MU1H-2416MR | 24 | 16 | Relay | ||
| MU1H-2416MT | 24 | 16 | Transistor | ||
| MU1H-3624MR | 36 | 24 | Relay | ||
| MU1H-3624MT | 36 | 24 | Transistor | ||
| MU1H-CAN series selection table | |||||
| Model | Input | Output | Output type | Size(L*W*H) | Derivation Function |
| MU1H-0806MR-CAN | 8 | 6 | Relay | 126*90*72 | - |
| MU1H-0806-CAN | 8 | 6 | Transistor | - | |
| MU1H-0806MR1-CAN | 8 | 6 | Relay | 4 channel analog inputs | |
| MU1H-0806MT1-CAN | 8 | 6 | Transistor | 2 channel analog output | |
| MU1H-1208MR-CAN | 12 | 8 | Relay | - | |
| MU1H-1208MT1-CAN | 12 | 8 | Transistor | - | |
| MU1H-1208MR1-CAN | 12 | 8 | Relay | 2channel analog inputs | |
| MU1H-1208MT1-CAN | 12 | 8 | Transistor | 1 channel analog output | |
| MU1H-1614MR-CAN | 16 | 14 | Relay | - | |
| MU1H-1614MT-CAN | 16 | 14 | Transistor | - | |
| MU1H-2416MR-CAN | 24 | 16 | Relay | 158*90*74 | - |
| MU1H-2416MT-CAN | 24 | 16 | Transistor | - | |
| MU1H-3624MR-CAN | 36 | 24 | Relay | - | |
| MU1H-3624MT-CAN | 36 | 24 | Transistor | - | |
| MU1H series plc controller monitor | |||||
| Model | Input | Output | Output type | Size(L*W*H) | Derivation Function |
| MU1H-0816MTD-6LC | 8 | 16 | Transistor | 126*90*72 | Thermocouple input 6 channels |
| MU1H-0814MTD-4LC | 8 | 14 | Transistor | 4 channel thermocouple input | |
| MU1H-9LC | - | 9 | Transistor | 9 channel thermocouple input/thermal resistance | |
Shipping
1. Fedex/DHL/UPS/TNT for samples, door to door;
2. By air or by sea for batch goods for FCL, airport/port receving;
3. Customers specifying freight forwarders for negotiable shipping nethods.
4. Delivery time: 3~7 days for samples, 5~25days for batch goods.
Payment Terms
1. Payment : T/T, Western Uion, MoneygRAM, Paypal( 30% deposits, 70% balance before delivery); Trade assurance from Alibaba with 10000 dollars
2. MOQ: 1 set;
3. Warranty: 18 months
Why Choose Us ?
1. More than 15 Years' Experiece in Drivers Manufacturing: the complete industry chain: the strong R&D team, the powerful supply capacity, the prefect system of freight of forwarding, and the frst-class pre-sale service in any problem in operating PLC and converter.
2. Customization Production: size, model, package can be per customers' request.
3. Realizablw Quality: professional design team, strict QC system and strong transportation cooperation.
4. First-class Pre and After Service: we ensure the well processing of the practice of our products for customers.
Our warranty
3months free replacement,
18 months free maintenance
Life-time technical support and maintenance service
Due to the quality problem, free replacement part will be offered.
Due to incorrect use, unauthorized repaire, fall etc, the maintenance cost will be charged.
Q1: Are your plc controller monitor quality mature and stable ? And which are the industry has run successfully ?
Yes , of course , we have CE ,CCC and ISO90001 certification .
Mature applicable in printing , pharmaceutical ,auto manufacturing ,electronic power ,medical devices etc .
Q2:How many the maximum points can up of your plc controller monitor?
The main module at least 14 points ,maximum 60 points can extend to 512 points .
Q3: How many voltage are of plc controller monitor?Whether the voltage can be customized according customers ?
The input voltage AC110V~AC240V ,DC24V .Or according to customer .
Q4: What is guarantee of your plc controller monitor?
All series PLC to provide 18months warranty and lifetime maintenance .
Q5:What information should provide ,if want to get a quotation?
You could tell us your requirements and usage or our models
Take action to tell us your requirement let us solve !!!To click "send" as below
