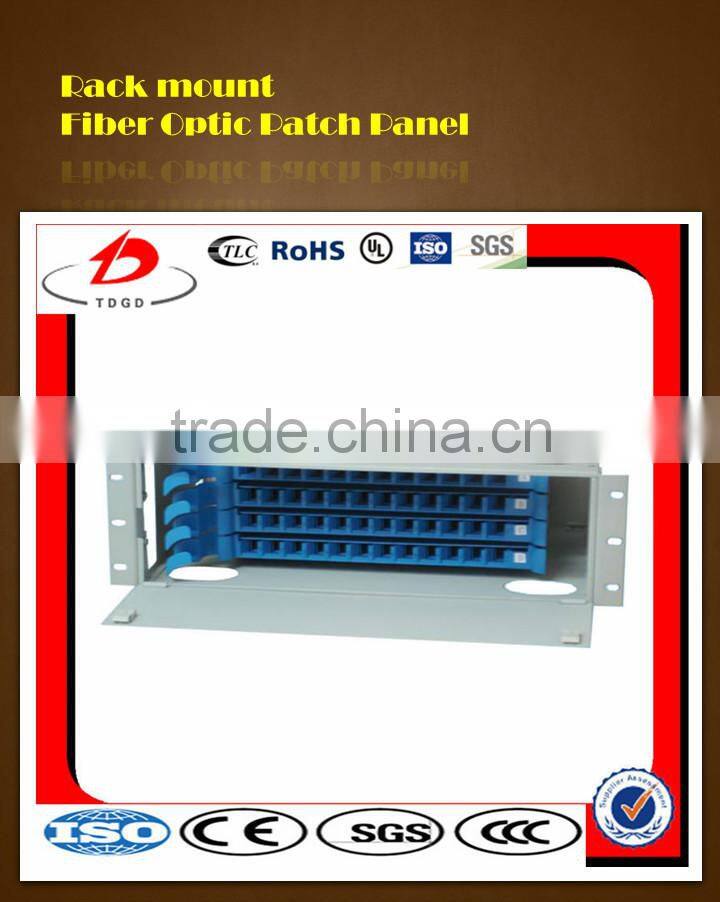

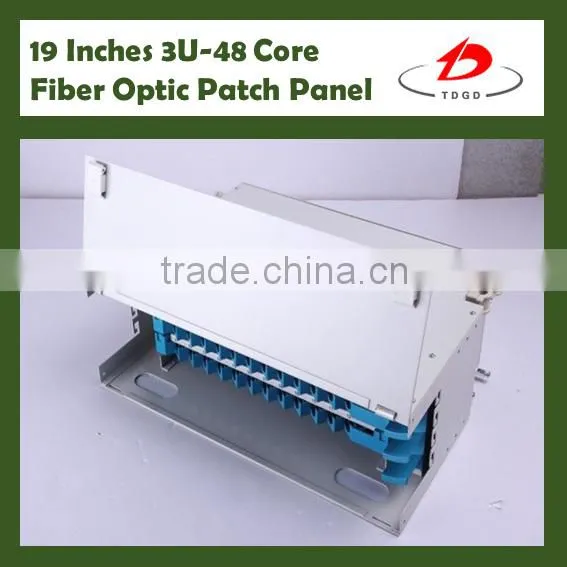

19'' 3U-48 Core Fiber Optic Rack Mount ODF Patch Panel
- 1000000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | TDTX | Model Number: | TDTX-19-3U-48 |
| Usage: | Winding |
Packaging Details
Box / Carton
Product Description
Rack Mount 48 Ports Patch Panel --- Application
♦ Termination forthe cable in the adapted wiring closets, devices and equipments
♦ FTTx, FTTH project designed
Rack Mount 48 Ports Patch Panel --- Features
♦ Anti corrision material SPCC applied.
♦ 19 inch standard mounting with static electric plastic sprayed surface treatment.
♦ Compatible for both ribbon and bunch cables.
♦ Being applcable for SC, FC, ST or FC duplex adapters.
♦ Flexible adapter panel designed, making it more universal to various adapters and greatly
adjust to the exchangeability.
♦ Clear fiber routes, easy installation for coil of the pigtails.
♦ Symmetrical side panels, unique design of inlaid structure for fibers, which makes easier inlet of
optical fibers.
♦ Fexible and easy installation and mainteneance.
♦ Up to 48 core ports for 48 optical fibers.
Rack Mount 48 Ports Patch Panel --- Performance
♦ Optional Adapters: SC/ST/FC/LC
♦ Port Capacity: 48 cores
♦ Pigtail Typical Insertion Loss: ≤0.3dB
♦ ROC: ≥40mm
♦ Operation Temperature: -20℃~+60℃
♦ Weight: 5.9KG
♦ Size: 490mm*305mm*135mm (L*W*H)

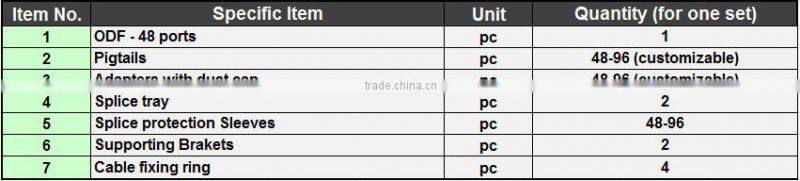

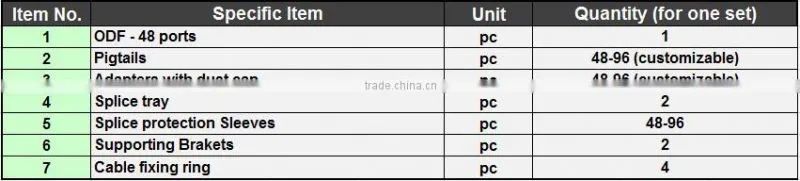

Rack Mount 48 Ports Patch Panel --- Components List
Package
♦ Packages vary from different optic fiber models, compoents and devices
♦ The normal package is carton, individually inner packages are applied for fiber optic
Adapters, fiber optic Pigtails, fiber optic Patch Cords, fiber optic Attenuators, fiber optic
Terminal Boxes and fiber optic Splice Closures, then they will be packed in the outer cartons
or boxes.
♦ Fiber Optic Cables are packed in wooden Drums.
Lead Time & Shippment
♦ Usually, for samples and small orders, we will delivery the goods through DHL / Fedex / UPS /
EMS / ARAMEX, meanwhile, your specific delivery details will be arranged by us
as required.
♦ In general, goods can be sent or delivered in 3 to 8 working days after receivement of
full payment.
♦ For bulk orders, Shippement will be arranged by Air or by Sea after agreement by our
customers.
Terms of payment
♦ Usually, we accept payment by 100% T/T in advance (Telegraphic Transfer), West Union,
PayPal and International Credit Card (small amount).
Our Service
♦ We concentrate on our customers' satisfaction. Providing the most professional technical
products & services to enhance our customers' benefits, we have the
professional after-service department to solve problems and to offer the
most appropriate solutions.
