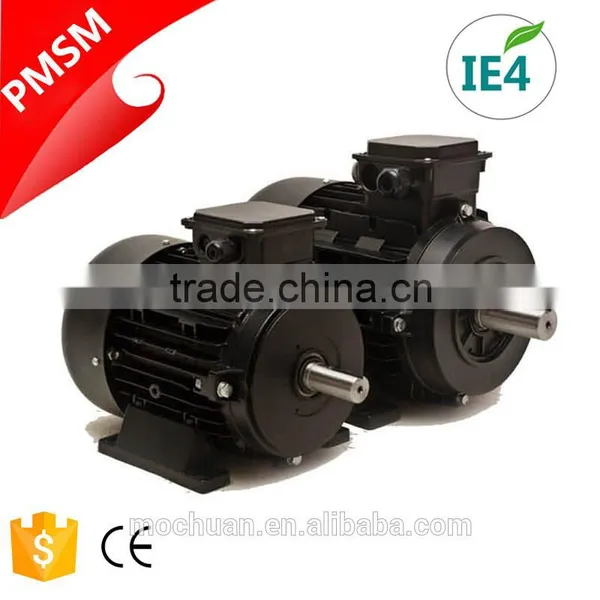

electric ac 0.2kw three phase 50hz pm magnetic drive motor
| Motor model | magnetic drive motor( permanent magnet) | |
| Magnetic material | highest intrinsic coercivity rare earth permanent materials | |
| Motor power | 0.75~30kw | 0.4kw~2.2kw |
| Rated voltage | 400v | 230v |
| Rotor magnet steel | Interior( significant difference for inductance of DQ axis) | |
| Magnetic steel | Demagnetization termperature ≥130℃ | |
| Cooling fan | Rotate with motor shaft in same speed , called coaxial fan | |
| Installation type | standard IMB3, meanwhle satisfy with IMB5, 35 and14 | |
| Protection grade | IP55 | |
| Temperature rise | Surface termperature rise≤50° when motor runs continously at rated load | |
| Certification | CE | |
| Motor efficiency | Meet the standard of IE4 | |
| Environment temperature | -10℃~ +50℃ | |
| Transport and store temperature | -10℃~+50℃ | |
| Environment Humidity | Below 90% ( no water-bead coagulation) | |
| Vibration strength | Below 0.5g( acceleration) | |
| Height above sea level | 1000m or below( derate above 1000m) | |
| Equipment location | Suitable for usage occasion of any general induction motor. Add external protection according to related standard if there is any special environment with tangy caustic gases or flammable gase etc . | |
Energy-Saving and High Running Efficiency: After the permanent magnet synchronous electric motor with permanent magnet embedded permanent magnet, In running, the rotor is no induced current, and no loss resistance of rotor, it can improve the motor's efficiency 4% ~50%. Due to the water magneo roto excitation no induced current, to make motor power's factor colse to 1.
e.g Permanent magnet synchronous motor in the load rated >20%, the operation efficiency and power factor change not big, And running efficiency >80%, please check below:
1. Asynchronous starting permanent magnet synchronous motor; 2: Asynchronous motor
Mini Size and Light Weight: compare with same power asynchronous motor smller 1 to 2 stand, More compact size :
Seat No. and Power comparison
Longer Working Life:current decrease, reducing temperature rise, longer life of motor.
High Strating Torque and Overload Capacity: smaller the moment of inertia, big start torque, wider operating frequency control is simple and reliable; Adopts frequency conversion vector control method, high control precision and reduce the fault segment.
Non-inductive permanent magnet synchronous motor using IMP magnetoresistance effect, greatly improve the motor ,overload capacity, the over-load capacitiy more than 2 times .Compared with asynchronous motor, with more hard mechanical properties, long overload, torque characteristic show below picture:
Strong Universality and Applicability: same as the asynchronous motor structure, can be directly instead of asynchronous motor. Besides, it can be used for all kinds of bad working condition, how to low speed for a long time, frequency start, etc.
IE4 standard: it design novel structure and torque than the big volum , the volum is the same as power Y series motor shirnk up to 30% .Power factor than Y series motor hint of up to 15% , Motor is quiet and high overload at low temperature characteristices etc .
Parameter of permanent magnet synchronous magnetic drive motor
| Model | seat No. |
Rated Power /KW |
Raed Speed /RPM |
Rated torque /NM |
Rated frequency /Hz |
Rated current /A |
Weight /kg |
Energy efficiency |
| PM-Y2-6314 | 63 | 0.2 | 3000 | 0.635 | 100 | 0.6 | 2.4 | ... |
| PM-Y2-6324 | 63 | 0.4 | 3000 | 1.27 | 100 | 1.2 | 3 | ... |
| PM-Y2-7114 | 71 | 0.75 | 3000 | 2.4 | 100 | 1.7 | 5.4 | 88.6 |
| PM-Y2-7214 | 71 | 1.1 | 3000 | 3.5 | 100 | 2.45 | 7.5 | 89.8 |
| PM-AW90SI-4 | 90 | 1.5 | 3000 | 4.8 | 100 | 3.3 | 10 | 90.0 |
| PM-AW90S2-4 | 90 | 2.2 | 3000 | 7 | 100 | 4.7 | 15 | 91.8 |
| PM-AW90S3-4 | 90 | 3 | 3000 | 9.55 | 100 | 6.4 | 16 | 92.6 |
| PM-AW112M1-4 | 112 | 4 | 3000 | 12.8 | 100 | 8.6 | 20 | 93.3 |
| PM-AW112M2-4 | 112 | 5.5 | 3000 | 17.5 | 100 | 11.6 | 28 | 94 |
| PM-AW112M3-4 | 112 | 7.5 | 3000 | 24 | 100 | 16 | 30 | 94.5 |
| PM-AW132S1-4 | 132 | 11 | 3000 | 35 | 100 | 22 | 45 | 95 |
| PM-AW132S2-4 | 132 | 15 | 3000 | 47.75 | 100 | 30.9 | 60 | 95.3 |
| PM-AW160M1-4 | 160 | 18.5 | 3000 | 59 | 100 | 37.8 | 80 | 95.6 |
| PM-AW160M2-4 | 160 | 22 | 3000 | 70 | 100 | 45 | 86 | 95.9 |
| PM-AW160M3-4 | 160 | 30 | 3000 | 95.5 | 100 | 61 | 95 | 96.1 |
| PM-Y2-6334 | 63 | 0.2 | 1500 | 1.27 | 50 | 0.6 | 2.8 | ... |
| PM-Y2-6344 | 63 | 0.4 | 1500 | 2.54 | 50 | 1.2 | 3.5 | ... |
| PM-Y2-7134 | 71 | 0.75 | 1500 | 4.8 | 50 | 1.7 | 5.4 | 85.6 |
| PM-Y2-7144 | 71 | 1.1 | 1500 | 7 | 50 | 2.45 | 9 | 87.4 |
| PM-AW90L1-4 | 90 | 1.5 | 1500 | 9.6 | 50 | 3.3 | 14 | 88.1 |
| PM-AW90L3-4 | 90 | 2.2 | 1500 | 14 | 50 | 4.7 | 17 | 89.7 |
| PM-AW90L3-4 | 90 | 3 | 1500 | 19.1 | 50 | 6.4 | 21 | 90.3 |
| PM-AW112M4-4 | 112 | 4 | 1500 | 25.5 | 50 | 6.4 | 24 | 90.3 |
| PM-AW112M5-4 | 112 | 5.5 | 1500 | 35 | 50 | 8.6 | 30 | 90.9 |
| PM-AW112M6-4 | 112 | 7.5 | 1500 | 47.8 | 50 | 11.6 | 36 | 92.1 |
| PM-AW132M1-4 | 132 | 11 | 1500 | 95.5 | 50 | 30.9 | 57 | 94 |
| PM-AW132M2-4 | 132 | 15 | 1500 | 117.8 | 50 | 37.8 | 72 | 94.3 |
| PM-AW160L1-4 | 160 | 18.5 | 1500 | 117.8 | 50 | 37.8 | 97 | 94.3 |
| PM-AW160L2-4 | 160 | 22 | 1500 | 140 | 50 | 45 | 106 | 94.7 |
| PM-AW160L3-4 | 160 | 30 | 1500 | 191 | 50 | 61 | 135 | 95 |
IMB3 installation struction diagram and size of magnetic drive motor:
| seat No. |
Installation Dimensions /mm |
Dimension /mm |
||||||||||||
| E | F | XB | S | Q | U | T | W | C | Z | L | D | H | M | |
| 63 | 50 | 40 | 40 | 11 | 23 | 3 | 5 | 4 | 63 | 7 | 230 | 130 | 180 | 135 |
| 71 | 56 | 45 | 45 | 14 | 30 | 3 | 5 | 5 | 71 | 7 | 255 | 145 | 195 | 150 |
| 90S | 70 | 50 | 56 | 24 | 50 | 4 | 7 | 8 | 90 | 10 | 320 | 195 | 250 | 180 |
| 90L | 70 | 62.5 | 56 | 24 | 50 | 4 | 7 | 8 | 90 | 10 | 345 | 195 | 250 | 180 |
| 112 | 95 | 70 | 70 | 28 | 60 | 4 | 7 | 8 | 112 | 12 | 404 | 240 | 300 | 230 |
| 132S | 108 | 70 | 89 | 38 | 80 | 5 | 8 | 10 | 132 | 12 | 510 | 275 | 345 | 270 |
| 132M | 108 | 89 | 89 | 38 | 80 | 5 | 8 | 10 | 132 | 15 | 615 | 330 | 420 | 330 |
| 160M | 127 | 105 | 108 | 42 | 110 | 5 | 8 | 12 | 160 | 15 | 615 | 330 | 420 | 330 |
| 160L | 127 | 127 | 108 | 42 | 110 | 5 | 8 | 12 | 160 | 15 | 670 | 330 | 420 | 330 |
IMB5 installation struction Digaram and size of permanet magnet magnetic drive motor:
| Seat No. | Install size/ mm |
Dimension /mm |
|||||||||||
| LA | LB | LC | LE | LZ | S | LR | U | T | W | L | D | KL | |
| 63 | 115 | 95 | 140 | 3.5 | 10 | 11 | 23 | 3 | 5 | 4 | 230 | 130 | 70 |
| 71 | 130 | 110 | 160 | 3.5 | 10 | 14 | 30 | 3 | 5 | 5 | 255 | 145 | 112 |
| 90S | 165 | 130 | 200 | 3.5 | 12 | 24 | 50 | 4 | 7 | 8 | 345 | 195 | 155 |
| 90L | 165 | 130 | 200 | 3.5 | 12 | 24 | 50 | 4 | 7 | 8 | 404 | 240 | 190 |
| 112 | 215 | 180 | 250 | 4 | 15 | 28 | 60 | 4 | 7 | 8 | 470 | 275 | 210 |
| 132S | 265 | 230 | 300 | 4 | 15 | 38 | 80 | 5 | 8 | 10 | 470 | 275 | 210 |
| 132M | 265 | 230 | 300 | 4 | 15 | 38 | 80 | 5 | 8 | 10 | 510 | 275 | 210 |
| 160M | 300 | 250 | 5 | 18 | 42 | 110 | 5 | 8 | 8 | 12 | 615 | 330 | 255 |
| 160L | 300 | 250 | 350 | 5 | 18 | 42 | 110 | 5 | 8 | 12 | 670 | 330 | 255 |
1.Starting Torque: in general, permanent magnet motor using asynchronous starting mode, in normal work of permanent magnet motor, its rotor working is not work, in designing of permanent magnet motor, can make the rotor winding completely meet the requirements of high starting torque, to solve " big mara trolleys" problem.
2. Operating temperature rise: Because of permanent magnet motor with high efficiency, there is no resistance loss in rotor winding, and less or almot does not reactive current in the startor winding, to make temperature rise is low, low temperature rise to ensure the service life of permanent magnets, to extend the service life of motor.
3.The impact on the power grid operation: No induced curent in permanent motor rotor excitation classes, high power factor of the motor, imporves the quality factor of the grid, no longer need to install compensator in the grid.
Trade Terms of magnetic drive motor
1. Fedex/DHL/UPS /TNT for sample, door to door; By air or by sea for batch goods, or customized
2.Delivery time: 3~7days for samples, 5~25days for batch goods
Payment Terms of magnetic drive motor
1. Payment: T/T, Western Uion, MoneygRAM, Paypal ( 30% deposit, the balance before delivery); Trade Assurance from Alibaba
2: MOQ:1pcs 3.Warranty: 18months
MOCHUAN owns the complete industry chain, strong R&D team, The powerful supply capacity, perfect system of freight forwarding and first-class, per-sale and after-sale service on solution, installation, faults and other related questions on PLC, frequency converter, permanent magnet motor, HMI ect.
Each product is finished by the strict quality testing system to ensure customer's benefit, Exept that, every order is checed by our professional engineer before shipping.
For every order, correspondent user manual, installing video, wiring diagram, operating principle, even other cabinet(not our products) are made and sent to entiretly free our customer.
Motor Testing Equipment:
1: The perpendicularity of the motor stator testing; 2: Comprehensive performance testing system
3: Through the testing of coil test bed for permanent magnet motor and inverter; 4/5: Testing of motor rotor
Payment: 20,000 dollars trade assurance from alibaba really relieve you of worries for the future
Good after-sale service: Free repplacment for 3months
Free maintenance for 18months
Technical and maintenance service for life-time
Due to the quality problem free replacement part will be offered; Due to incorrect use, unauthorized repaire, fall etc, the maintenance cost will be chareged
Why choose us?
1. More than 15years experiece in Drives Manufacturing: the complete industry chain: in strong R&D team, the powerful supply capacity, the perfect system of feight of forwarding, and the first-class pre-sale service in any problem in operating PLC and converter.
2. Customization Production: size, model, package can be pre customer's request
3. Realizablw quality: professional design team, strict QC system and strong transportation cooperation
4: First-class Pre and after service: we ensuer the well pprocessing of the pracitce of our products for customers
Q1: permanent magnet magnetic drive motor whether can be used directly connected?
No, because non-inductive permanent magnet synchronous motor without phase difference.
Q2: General inverter can match with magnetic drive motor directly to use?
No, the frequency converter must be support and drive non-inductive permanent magnet motor, And our MH40 series frequency converter can support it.
Q3: Does synchronous magnetic drive motor meet what is international standard?
Our Non-inductive permanent synchronous motor meet European IE4 energy consumption standard motor, And the level of protection is IP55.
Q4: Compare with IE3, what is advantage of IE4? what is connection?
Basis on IE3, IE4 can save energy 5% to 10%, only Y connection.
Q5: Whether can directly wash synchronous magnetic drive motor by water?
Non-inductive permanent synchronous motor is forbidden to wash by water.
