Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Model Number:

GXF11-DCF

Tongding Group Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Model Number GXF11-DCF

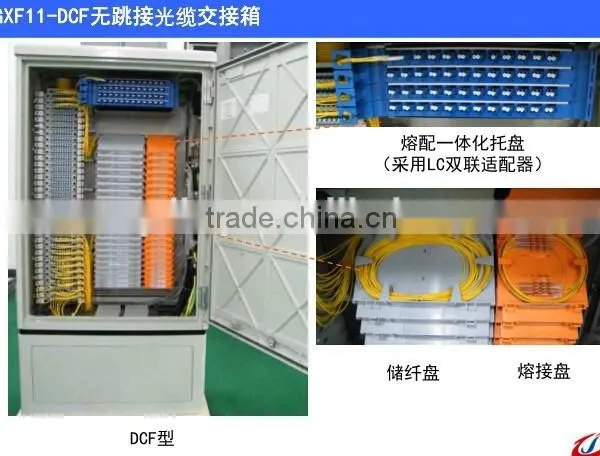

High strength glass-fiber polyester (SMC) body ensures excellentperformance of mechanical durability, anti-erosion, aging resistance and lightweight.
The cabinet has functions of cable termination as well as fiber distribution, splice, storage and dispatch.
Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
Excellent waterproof and dustproof performance.
Lock provided for every cabinet ensures the safety.
Multi-functions – various types of LongXing Distribution Units (DU) are available for making different combinations.
Disc-shaped splice tray (12-24 cores/ tray) can be used for direct splicing.
Accommodates SC, FC and LC and ST adapters.
Each incoming cable will be fixed properly with earth provided.

Environment conditions::

Technical Specifications:

The protection grade reaches IP65.
Working with wavelength of 850nm, 1310nm and 1550nm.
Pressurization between the frame high voltage protection earth device and the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.
Insulation resistance between the frame high voltage protection earth device and the frame: ≥20,000MΩ/ 500V (DC).
Each surface of the cabinet can bear a vertical pressure over 980N.
The outermost part of the door can bear a vertical pressure over 200N when the door is open.
The fixing position of cable can bear an axial tensile force 1000N, as well as three times of recyclable torsion of ±90°.
Mechanical durability: No damage for all connectors and adaptors after 500 mating times.
The curvature radius: >40mm.
