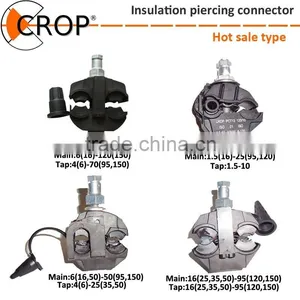

Insulation Piercing tap Connector
PRODUCT DESCRIPTION:
Purpose of Insulation piercing connectors(IPC) is to connect main and one(PC13),two(PC24) tap conducor's of section,how is written on IPC body.Type without letter B serves to connect isolated conductors,with letter B bare conductors.IPC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.
IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.
Product can be also used as tap connector inside low boltage boxes.

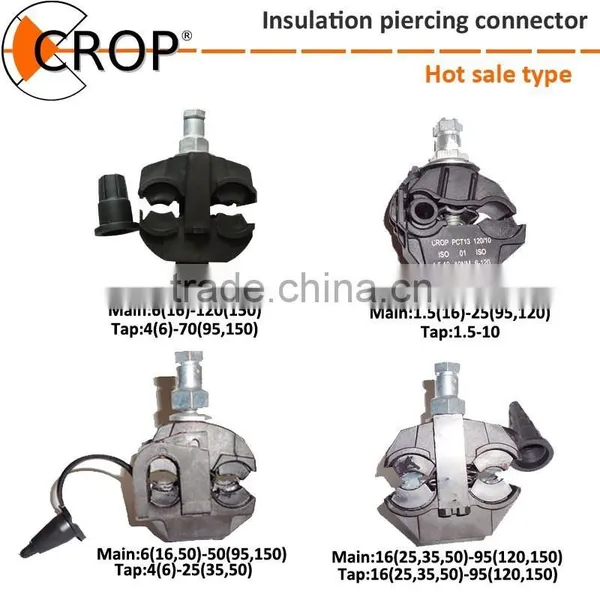

PRODUCT RANGE:
| Model number | Cable type | Section |

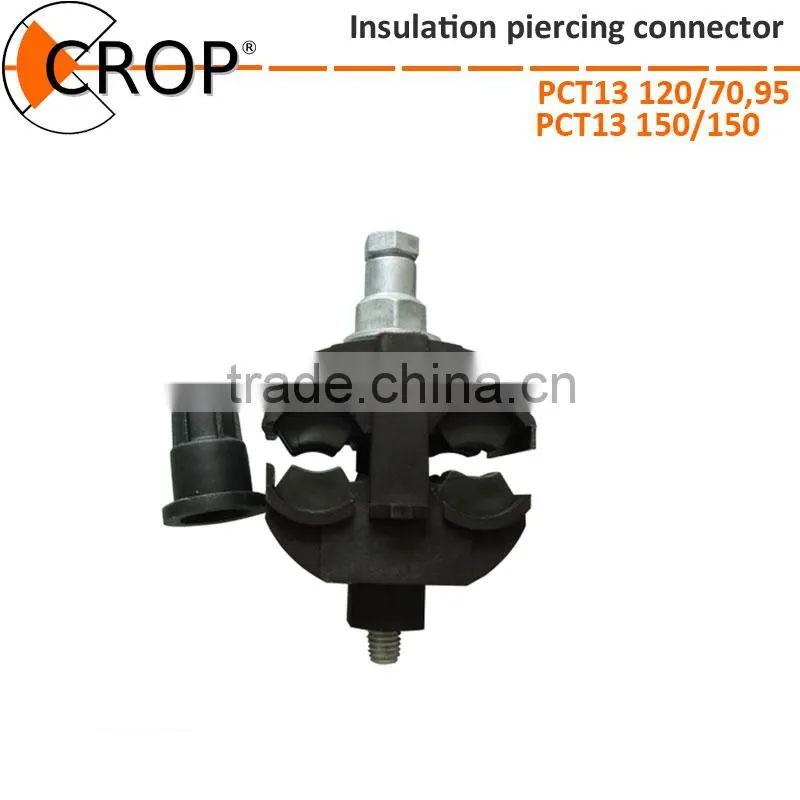

| PCT13 120/70 | RE/RM,isolated to isolated,Cu/Al | Main:16-120 sqmm Tap:4-70 sqmm |
| PCT13 150/150 | RE/RM,isolated to isolated,Cu/Al | Main:6-150 sqmm Tap:6-150 sqmm |
| Model number | Cable type | Section |
| PCT13C 25/10 | RE/RM,isolated to isolated,Cu/Al | Main:1.5-25 sqmm Tap:1.5-10 sqmm |
| PCT13C 95/10 | RE/RM,isolated to isolated,Cu/Al | Main:16-95 sqmm Tap:1.5-10 sqmm |

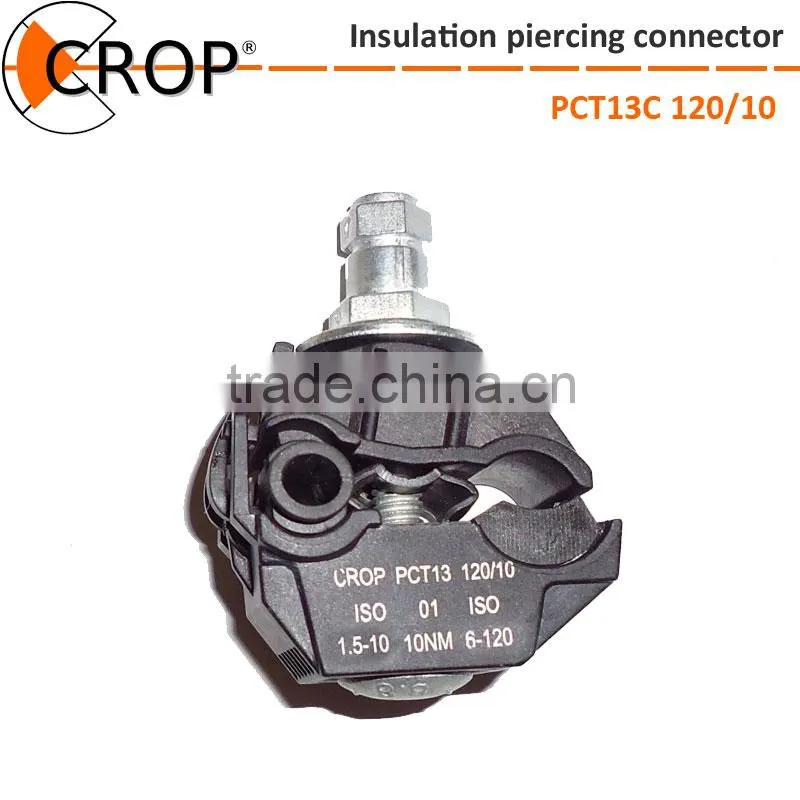

| PCT13C 120/10 | RE/RM,isolated to isolated,Cu/Al | Main:6-120 sqmm Tap:1.5-10 sqmm |
| Model number | Cable type | Section |
| PCT13C 50/25 | RE/RM,isolated to isolated,Cu/Al | Main:6-50 sqmm Tap:4-25 sqmm |

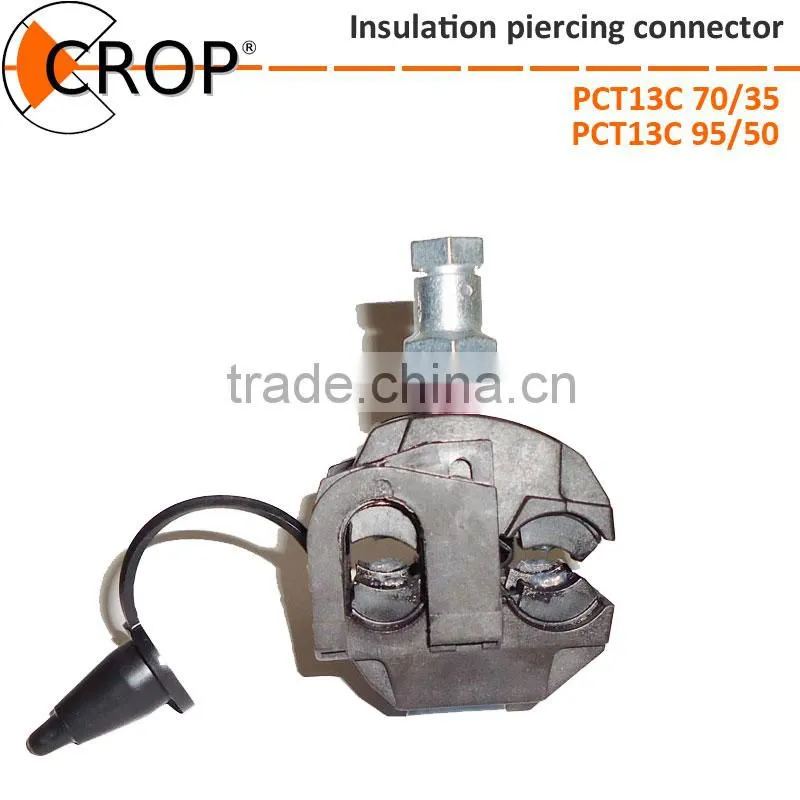

| PCT13C 70/35 | RE/RM,isolated to isolated,Cu/Al | Main:16-70 sqmm Tap:4-35 sqmm |
| PCT13C 95/50 | RE/RM,isolated to isolated,Cu/Al | Main:16-95 sqmm Tap:4-50 sqmm |
| PCT13C 150/50 | RE/RM,isolated to isolated,Cu/Al | Main:50-150 sqmm Tap:6-35 sqmm |
| Model number | Cable type | Section |

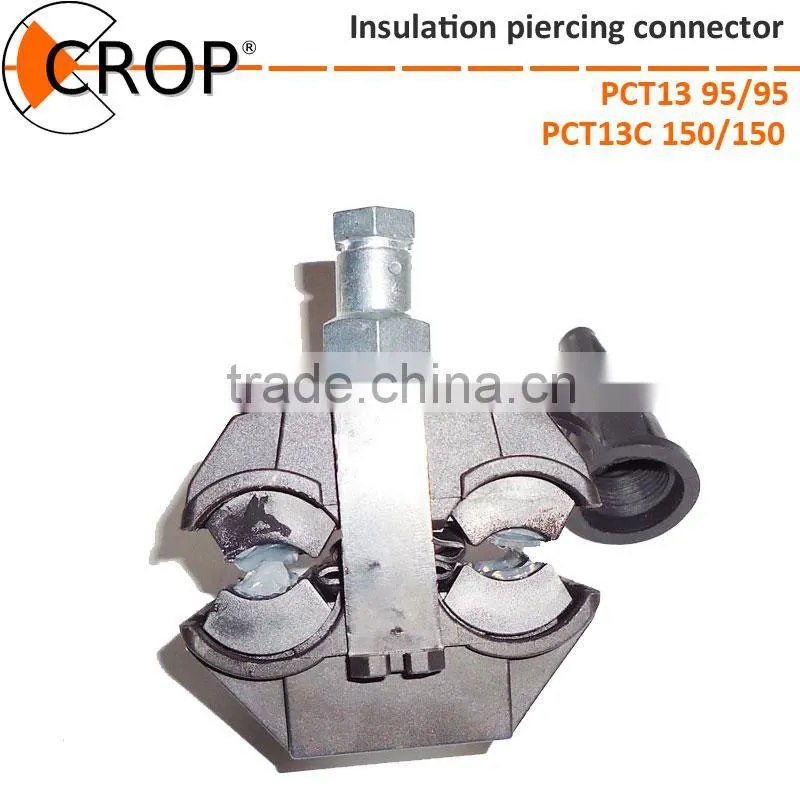

| PCT13C 95/95 | RE/RM,isolated to isolated,Cu/Al | Main:16-95 sqmm Tap:16-95 sqmm |
| PCT13C 120/120 | RE/RM,isolated to isolated,Cu/Al | Main:16-120 sqmm Tap:16-120 sqmm |
| PCT13C 150/150 | RE/RM,isolated to isolated,Cu/Al | Main:16-150 sqmm Tap:16-150 sqmm |
| Model number | Cable type | Section |

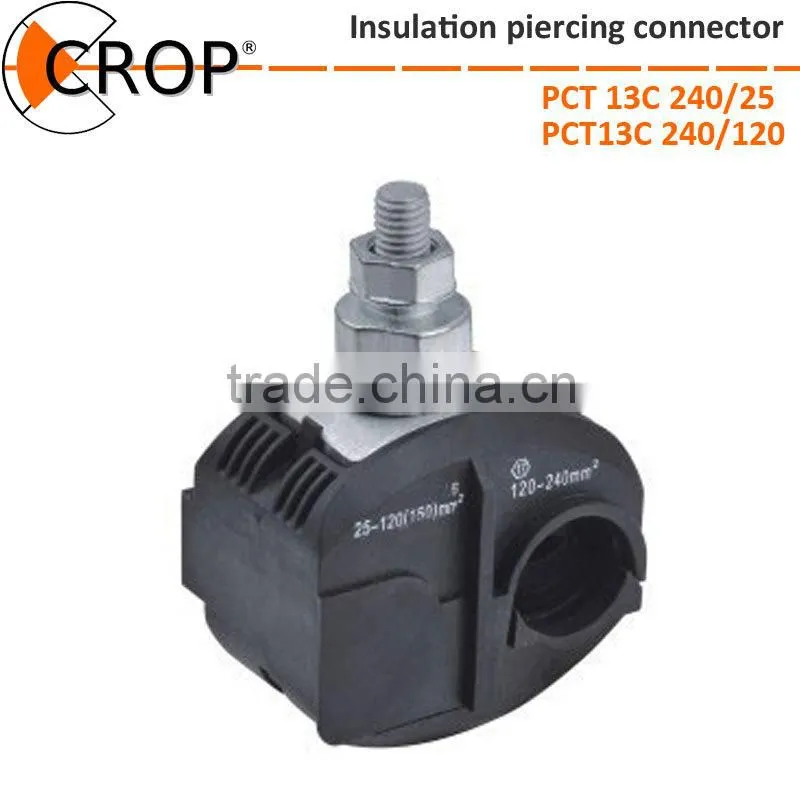

| PCT13C 240/25 | RE/RM,isolated to isolated,Cu/Al | Main:120-240 sqmm Tap:10-25 sqmm |
| PCT13C 240/120 | RE/RM,isolated to isolated,Cu/Al | Main:120-240 sqmm Tap:25-120 sqmm |
| Model number | Cable type | Section |
| PCT23C 120/120 | RE/RM,isolated to isolated,Cu/Al | Main:16-120 sqmm Tap:16-120 sqmm |
| PCT23C 150/150 | RE/RM,isolated to isolated,Cu/Al | Main:50-150 sqmm Tap:50-150 sqmm |

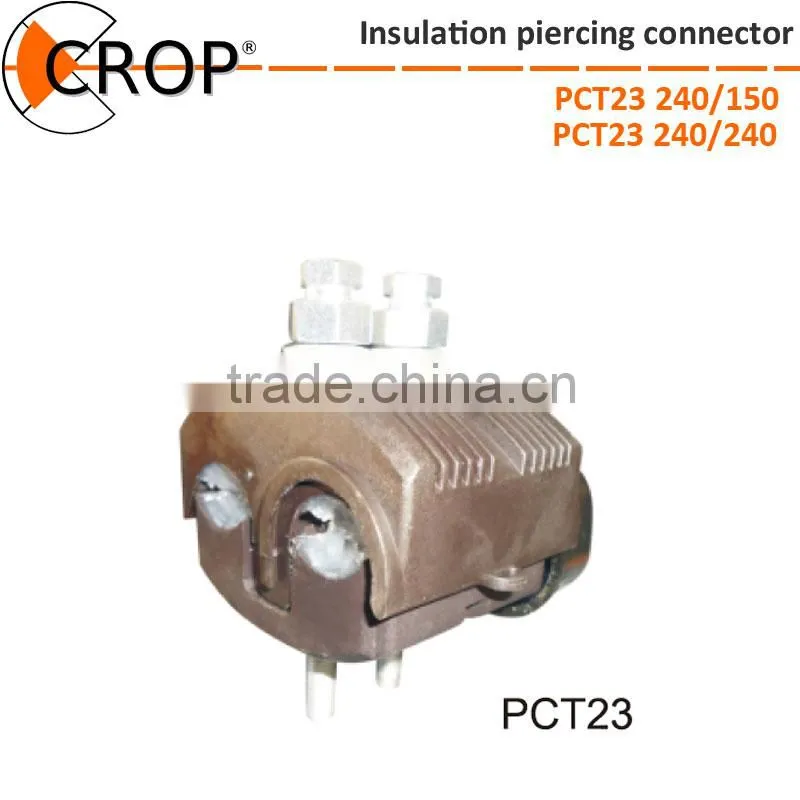

| PCT23C 240/150 | RE/RM,isolated to isolated,Cu/Al | Main:50-150 sqmm Tap:95-240 sqmm |
| PCT23C 240/240 | RE/RM,isolated to isolated,Cu/Al | Main:95-240 sqmm Tap:95-240 sqmm |
| Model number | Cable type | Section |

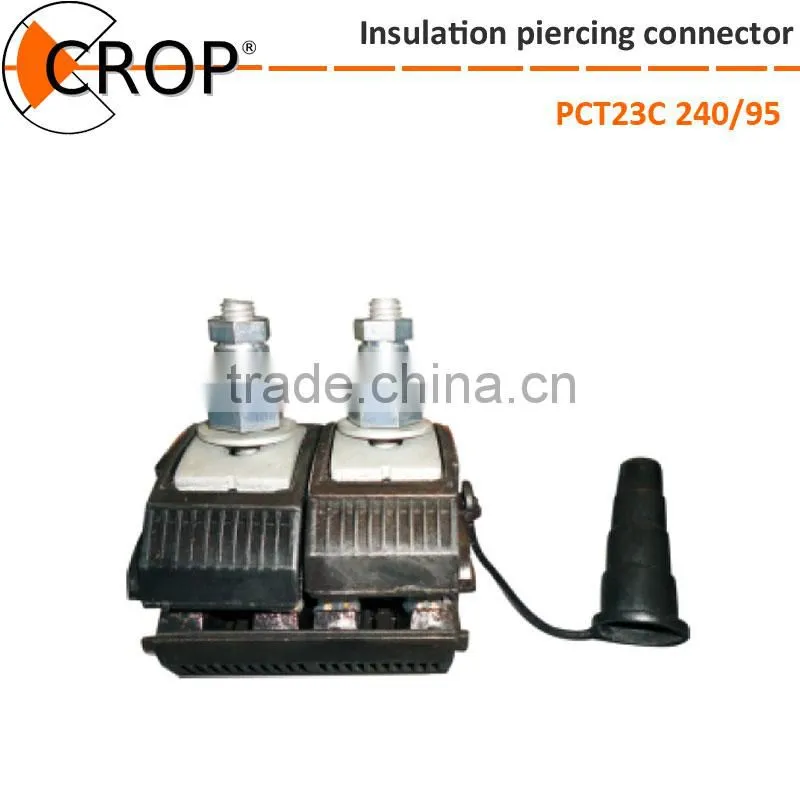

| PCT23C 240/95 | RE/RM,isolated to isolated,Cu/Al | Main:50-240 sqmm Tap:50-95 sqmm |
| PCT23C 240/240 | RE/RM,isolated to isolated,Cu/Al | Main:50-240 sqmm Tap:50-240 sqmm |
| Model number | Cable type | Section |
| PCT23CB 185/185 | RE/RM,isolated to bare,Cu/Al | Main:50-185 sqmm Tap:50-185 sqmm |
| PCT23C 185/185 | RE/RM,isolated to isolated,Cu/Al | Main:50-185 sqmm Tap:50-185 sqmm |
| PCT23CB 240/150 | RE/RM,isolated to bare,Cu/Al | Main:50-150 sqmm Tap:95-240 sqmm |
| PCT23C 240/150 | RE/RM,isolated to isolated,Cu/Al | Main:50-150 sqmm Tap:95-240 sqmm |
| PCT23CB 240/240 | RE/RM,isolated to bare,Cu/Al | Main:95-240 sqmm Tap:95-240 sqmm |
| PCT23C 240/240 | RE/RM,isolated to isolated,Cu/Al | Main:95-240 sqmm Tap:95-240 sqmm |
USED MATERIALS:
UV&fire resistant PA66,PVC,dacromet or H.D.G(optional)finished steel,tinned copper.
STORANGE AND TRANSPORT:
Product do not have any specific requirements on storage. It is fire-resistant and it is not dangerous.
