Piercing connector /Insulated Piercing connector
PCT13CB 120/95 type
PRODUCT DESCRIPTION:
Purpose of Insulation piercing connectors(IPC) is to connect main and one(PC13),two(PC24) tap conducor's of section,how is written on IPC body.Type without letter B serves to connect isolated conductors,with letter B bare conductors.IPC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.

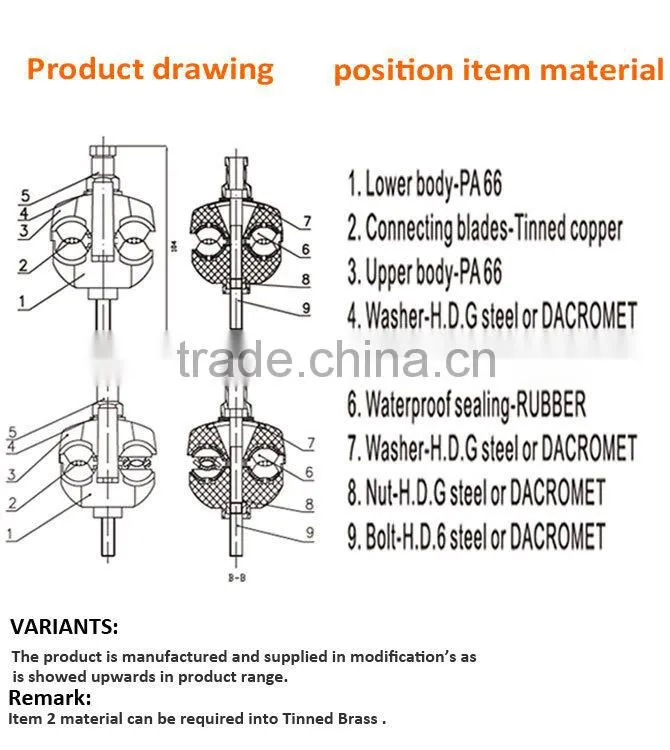

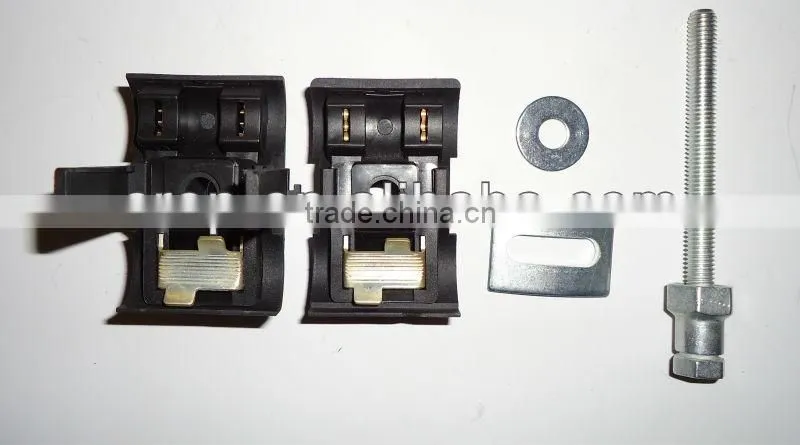

IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.
Product can be also used as tap connector inside low boltage boxes.
PRODUCT RANGE:
| Model number | Cable type | Section |
| PCT13CB 95/95 | RE/RM,isolated to bare,Cu/Al | Main:16-95 sqmm Tap:16-95 sqmm |
| PCT13CB 120/120 | RE/RM,isolated to bare,Cu/Al | Main:16-120 sqmm Tap:16-120 sqmm |
| PCT13CB 150/150 | RE/RM,isolated to bare,Cu/Al | Main:16-150 sqmm Tap:16-150 sqmm |
USED MATERIALS:
UV&fire resistant PA66,PVC,dacromet or H.D.G(optional)finished steel,tinned copper.
Packing information:
120 pcs per Carton
G.W:26 KG /Carton
N.W:25 KG /Carton
STORANGE AND TRANSPORT:
Product do not have any specific requirements on storage. It is fire-resistant and it is not dangerous.
Others (price, package and service)
1. The quoted price is alwaysvalid for 30days due to the fluctuation of raw material cost.
Please feel free to contact us for thecatalogues or prices.
2. Please kindly inform uswhich items you are interested & the best price will be provided you upon receiptof your new inquiry ASAP.
3. Samples will be offered to you for our future cooperation.
