Supply PP Spunbonded Fabric Nonwoven Bag Machine
- 20 Set / Sets per Month
- shanghai
- T/T
- Full Computerized System High Speed Rubber Yarn Covering Machine
- LB-199 Spandex/Lycra Covering Machine (Single Covered Yarn, SCY)
- LB-199 Spandex/Lycra Covering Machine
- LB-199 Lycra/Spandex yarn Covering Machine
- LB-199 Conventional Spandex Yarn Covering Machine (SCY / DCY )
- High Speed Rubber Yarn Covering Machine
Product Details
Model Number: | 1 | Material Capabilities: | Nonwoven |
Certification: | Other, ISO9001 |
Product Description
Product Details | |
Item | Non-Woven Fabric |
Production Line | S,SS,SMS PP spunbonded nonwoven production line |
Width | 1.6-3.2m |
Weight | 9-200gsm |
Width | 2.5-6D |
Production Capability(T/Y) | 3600,7200,1200,5200 |
Screw Diameter(mm) | 130-170 |
Length-diameter Ratio | 30:1 |
Machine Speed | 10-120m/min |
Fabric Color | Any color available |
Finished Fabric Feature | Waterproof, anti-uv, anti-static, anti-pull, anti-alcohol, anti-oil, eco-friendly |
Certification | ISO |
22
Raw Material Specification |
Item | Unit | Technical index |
Melting Index | g/10min | 27~35 |
Melting Point | °C | 162~165 |
Density | G/cm3 | 0.90~0.91 |
Molecular Weight Distribution | MW/Mn | <=4 |
Content Of Grey | PPM | <=250 |
No Equal Normality | % | <=3.5 |
Content Of Water | % | <0.05 |
Stretch Strength | Mpa | >=31 |
General Information For Machine |
Type | Output | Operating capacity | Power Consumption | Transformers Required | Size of machine (W*L*H) | Container Required |
1.6m S machine | 1500 ton/year | 130kw | 800kw*h/ton | 250KVA | 9m*17m*10.5m | 5 containers of 40HQ |
1.6m SS machine | 3000 ton/year | 260kw | 800kw*h/ton | 315KVA | 10m*25m*10.5m | 10 containers of 40HQ |
2.4m S machine | 2200 ton/year | 220kw | 800kw*h/ton | 250KVA | 12m*17m*10.5m | 6 containers of 40HQ |
2.4m SS machine | 4400 ton/year | 440kw | 800kw*h/ton | 630KVA | 14m*25m*10.5m | 12 containers of 40HQ |
3.2m S machine | 3000 ton/year | 300kw | 800kw*h/ton | 315KVA | 13m*22m*10.5m | 7 containers of 40HQ |
3.2m SS machine | 6000 ton/year | 600kw | 800kw*h/ton | 800KVA | 17m*30m*10.5m | 14 containers of 40HQ |
Parts of Production Line | |
Screw extruder ---> Rim charge auxiliary screw and recycling device ---> Spinning beam ---> Filter---> Metering pump---> Monomer suction device---> Quenching air chamber---> Stretching device---> Calender---> Tension device---> Winder and suction system. | |
Spunlaid Process and Technical Flow Chart | |
Additive(recycling waste edge)---> Raw material -->Melting--> Filtering-->Measuring-->Spinning-->Cooling-->Stretching-->Web forming-->Calendering-->Rounding-->Final products. | |
Application | |
Medical: operation suit ,exposure suit,cap,sauna clothes face mask,shopping bag,disposable clothes and so on Cover for plant to anti-forst,insect-resistant sunshades,awning clothes,packing bags for crops,etc Interior decoration for car,train and ship;back fabric for man-made carpets,etc Bags for business,shopping and parents packet,dust cover,sleeping bag for children,leather shoes,luggage,mattress,sofa lining and so on. |

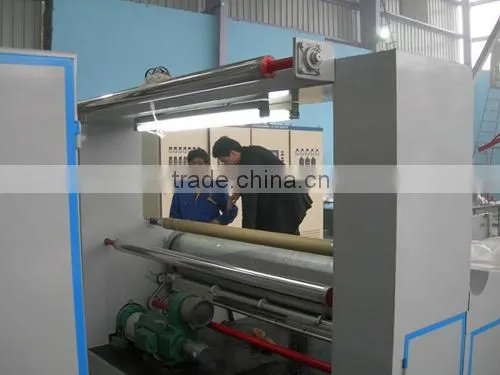

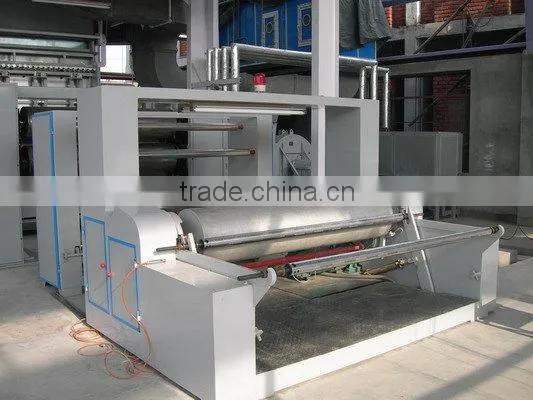

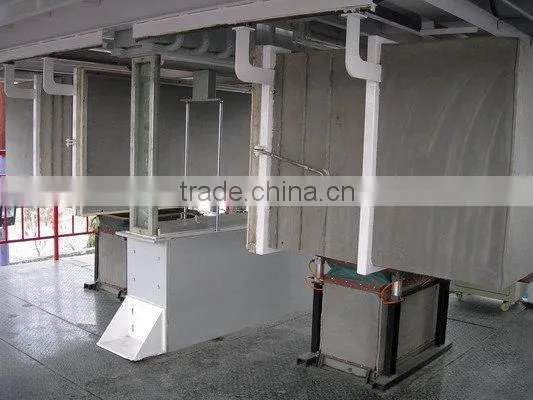

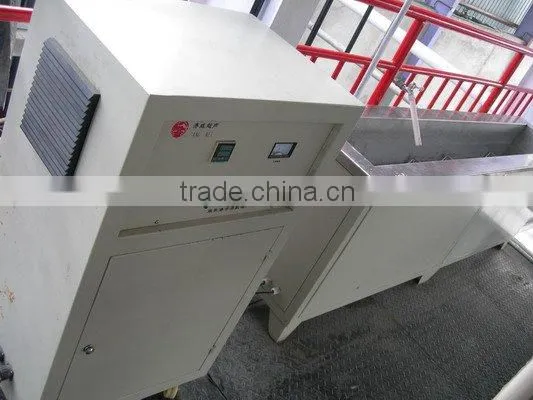

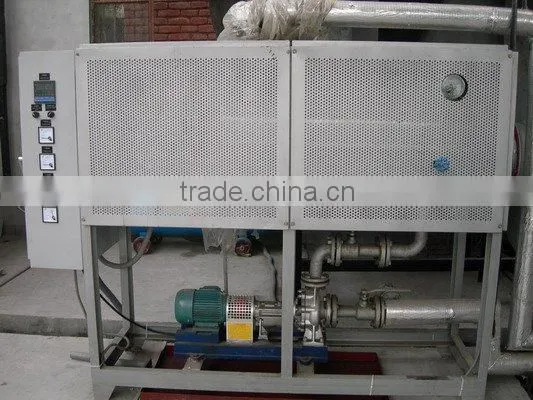

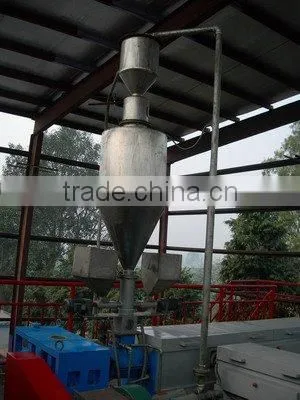

Product Show |
Flow of PP Nonwoven Fabric Machine |
Certificate |
Trade Details | |
MOQ | 2 tons Nonwoven Bag Making Machine |
Payment Terms | L/C, T/T |
Port | Shanghai |
Delivery | 10-20days (5-10 days for urgent orders) |
Fabric Load Quantity | One 20FT can be loaded about 5-6tons One 40HC can be loaded about 12-16tons |
Packaging | Packed in a roll and then in a pe bag |
Shipping | By air, by sea, express according to your requirement |
About Us | |
Name | Jiangyin Jingang Nonwovens Co., Ltd. |
Business Type | Manufacturer / Trading Company |
Established | In 1999 |
OEM Experience | 7 years |
Main Product | Polypropylene spun-bonded non-woven cloth and its production line, SMS and SPES compound non-woven cloth. These products are widely used as linings in cases and apparel, warm facilities, bedding products and sofas. |
Monthly Output | 3,000 metric tons |
Certification | CE, ISO |
Factory Advantage | Our company successfully manufactured German style spun-bonded non-woven cloth production lines in 2002. |
Website | http://jyjg.en.china.cn/ |
Factory
