Fast Installation Zero & Hooked Clamp/Cable Clamp Connector with more precise connecting
Product Description:
A Zero Clamp is designed to connect a conductor directly to a busbar system,without needing mechanical modifications such as drilling,pressing of nuts,etc. It replaces the standard V Clamp + Streamer,pad,screw,nut-it's ONLY ONE COMPONENT - consequently making the installation easier,faster,and effecting a more precise contact contact between the conductor and busbar.
It's suitable for all kinds of conductors,and busbars of assorted coatings-when the thickness of the busbar is 5 mm or 10 mm.
Hook on Clamp's purpose is to catch the fuse link or disconnector on the busbar system avoiding mechanical modifications.it's simply just hooked on the back side of the busbar,and to the fuse link or a disconnector,having direct contact with busbar.Fast installation and variable positions of devices in case of need are its main advantage.

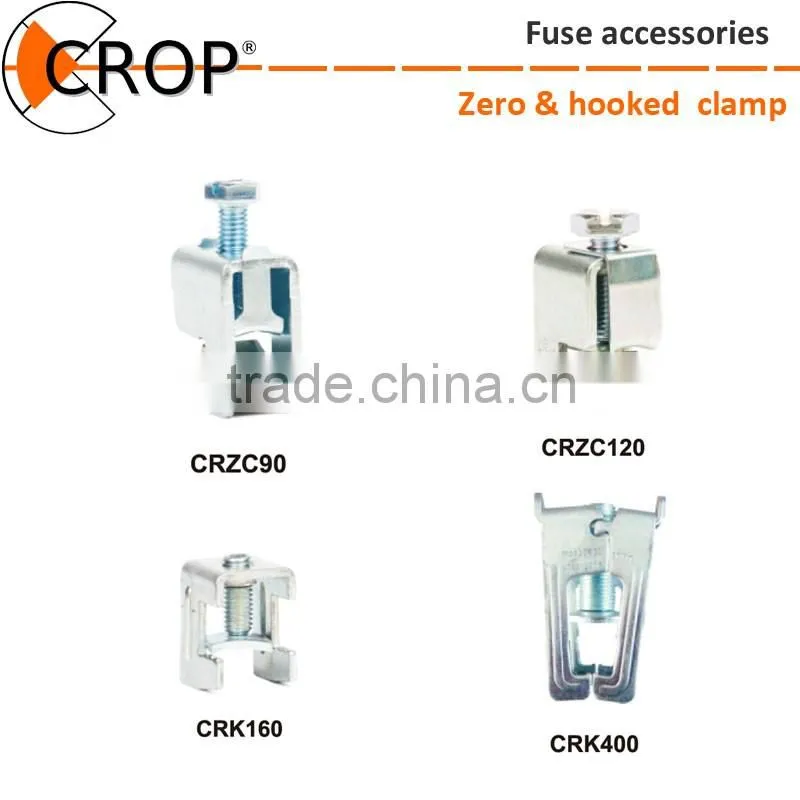

Product Range:X-thickness of busbar 5 or 10 mm
Zero Clamp:

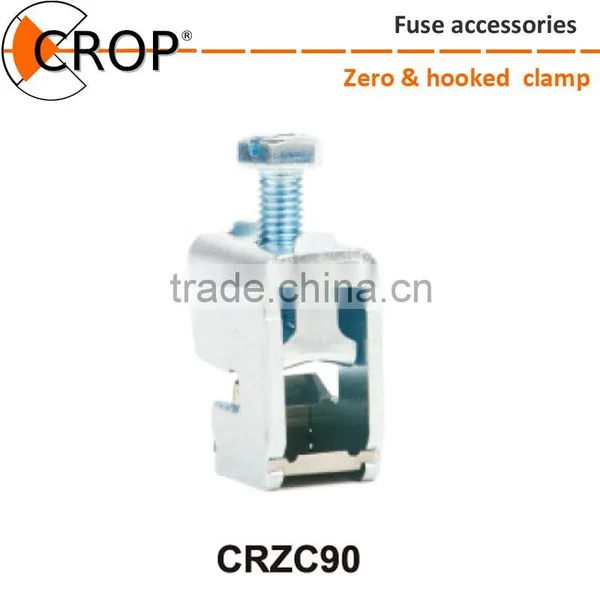

CRZC90-X: 6-90 mm2;12NM CRZC 240-X:10-240mm2;25NM

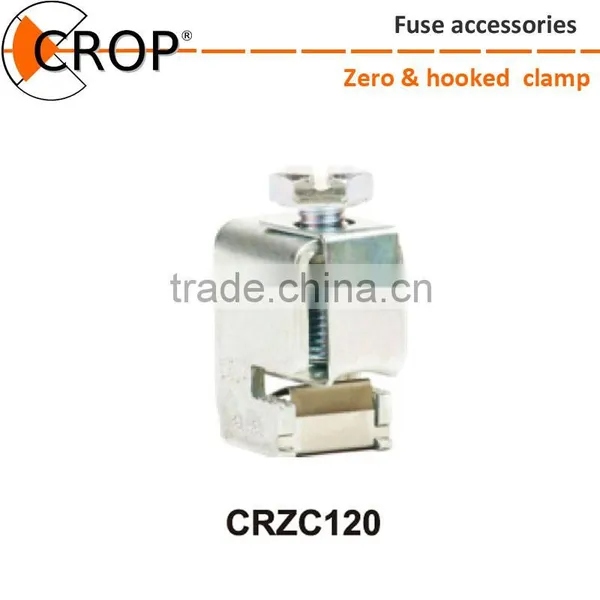

CRZC120-X:6-120mm2;15NM CRZC400-X:16-400mm2;35NM
Hook on Clamp:

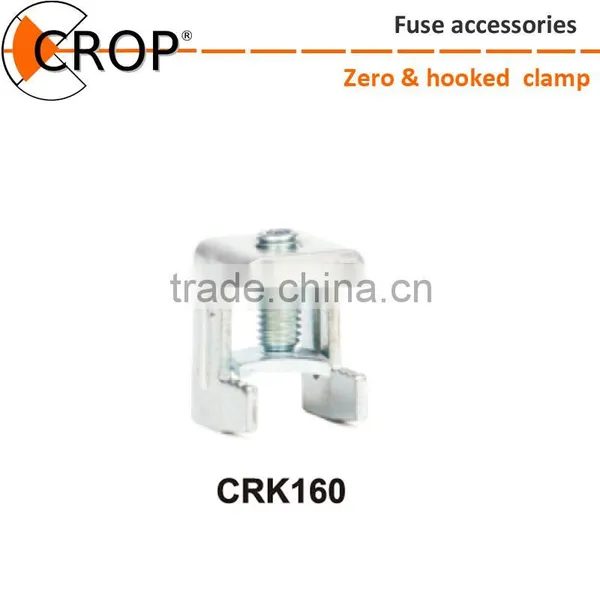

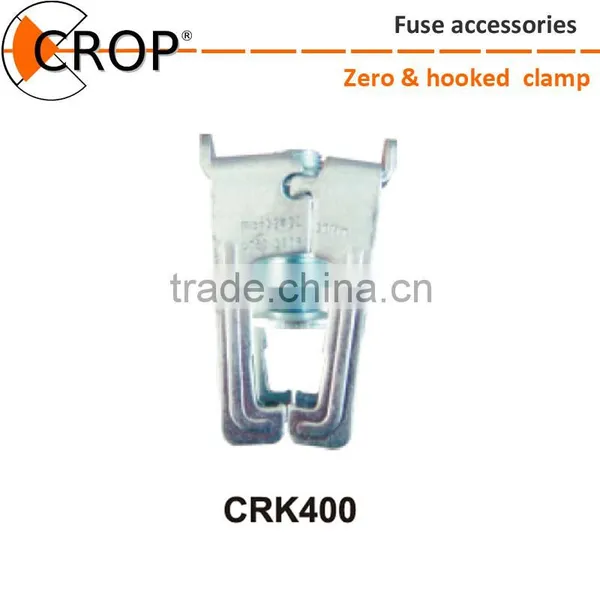

CRKR160-X:NH00;5NM CRZC400-X:NH2;20NM
