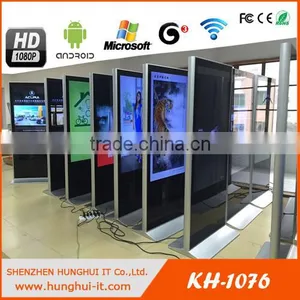

Advertising kiosk LCD/LED display Digital advertising media player

FOB Price

USD $530 - $1,500 / Set

1 Set(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	China	Brand Name:	Hunghui / OEM	Model Number:	KH-1076
Type:	TFT	Application:	Indoor	Panel Size:	46inch
Max Resolution:	1920*1080	Viewing Angle:	178°/178°	Pixel Pitch:	0.297x0.297mm
Color:	16.7	Contrast Ratio:	1400:1	Brightness:	450cd/m2
Response Time:	8ms	Input Voltage:	AC100V-240V (50HZ-60HZ)

Packaging Details

PE foam, Carton Case & Wooden Crate

Product Description

Advertising kiosk LCD/LED display Digital advertising media player

Product Quick details:

Advertising Billboard Technical Specification
Advertising Panel Parameters	Panel size: 32inch/42inch/46inch/47inch/55inch/65inch
	Panel Brand: LG/Samsung Grade A class
	Panel Type: LCD (LED backlight mode)
	Max. Resolution: 1920*1080 (Full HD)
	Brightness: 450cd/m2
	Dot Pitch: 0.630mm(H)x0.630mm(W)
	Contrast: 1400:1
	View Angle: 178°/178°
	Panel Life: above 50000 hours
Media Format	MP3
	MP4 (AVI: DIVX/XVID)
	MPG2 (DVD:VOB/MPG2)
	MPEG1(VCD:DAT/MPG1)
	JPG
	WMV
	VOB
	H.264 etc
Play From	Built-in Memory Flash
Play From	Background sever (Internet version)
Power Supply	AC100V-240V, Frequency 50-60Hz
Working Temperature	0℃~40℃
Working humidity	20%~80%
Advertising Function
*It support 1080p, Landscape play/Vertical play; Split screen play;Scrolling marquee;Time switch;USB data import…etc function
*Can turn on or off advertising player automatically on schedule
*Play advertising program circularly and automatically
*Build-in clock and calendar function
*Audio system: build-in two speakers stereo
*Support shockproof and dustproof function
*Support software update function
*Support functions of copying files between card and card (such as CF card to SD card, or SD to CF card etc.)
Available Function
*Machine Frame: We can customize the frame according to your requirements
*Machine Colors: Different colors available, normally is black or silver
*Opening Logo: The screen will show your logo when turn on the machine (For Free)
*Menu Language: English, Chinese, Russian ,French, German, Italian, Spanish
Optional Components
Touch Panel
Active Touch Area	938mm x 532mm
Max Resolution	4096×4096
Transparency	> 90%, Up to 100%
Scanning Speed:	>80Scans/S
Response Speed	<8ms
Touch precision	0.625mm
Minimum Touch object:	≥5mm
Touch Intensity	Over 60,000,000 Single Point Touch
Communication	RS-232 Interface Port, USB Port
Life Time	>10 Year
Android Controller Parameters
CPU	Allwinner A20, Cortex-A7, 1.0GHz ,Dual core
Storage	4G (NAND FLASH)
Memory	DDR 3 1G
Storage Extension	Up to 32Gb SD/TF Card extension, also support SATA Driver extension
WiFi	High-performance WIFI 802.11b/g/n
I/O Port	4xUSB,3xCOM,1xSATA,4xUART Extension port,1x RJ45, 1 X HDMI, 1 X VGA
Android	Android 4.2.2
PC Version
CPU	Intel Core dual core, i3 , I5, I7
RAM	4 GB DDR3 1333 RAM
Graphics	Integrated with CPU
Audio	6 channel sound chip
NETwork interface card	10/100/1000Mbits/sec Ethernet LAN connectivity included
Wi-Fi	High quality strong WiFi module included(802.11 n/g/b)
H.D.D.	3.5 inch 500GB SATA
Speak	2 built-in high quality stereo speaks (5w)
Mouse/Keyboard	Bluetooth suit (Optional)
Pre-Installed OS	Windows 7 /8 (without license)

Detailed Images

Control software can be provided after order confirmed.

Our Services

Fast response: Our Sales representative will respond your inquries within 12 working hours;
Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
Software development support: Android system administor software and AD software will send after order confirmed
software development, and we could also provide software developing service if you could provide necessary APIs
Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
Warranty: free warranty for 12 months, and lifetime maintenance support.

Application

Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

Product Features for 55 inch Digital Signage Touch Screen Advertising Display stands:
Playing advertising program automatically or circularly.
Free switching between split screen and full screen
Mixed displaying of videos and images can meet different requirements.
Support picture playing against backgroundmusic function.
Capable of setting scrolling text on the screen
4 groups of auto power-on/off timer, able to set those 4 groups of time a day
Files can be copied between different cards
External flash memory card capability: 1GB -32GB optional, such as CF, SD card and U-disk etc.
A protective layer of high light-penetrating steel glass on the LCD screen is adopted.
Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork.

Parameter for IR Touch Screen:
-Active Touch Area: 938mm x 532mm
-Outline Dimension: 983± 2.0(W) X 576± 2.0(D) X 11.2mm± 0.5(H)
-Active Touch Area: 938mm x 532mm
-Outline Dimension: 983± 2.0(W) X 576± 2.0(D) X 11.2mm± 0.5(H)
-Touch Max Resolution: 4096×4096
-Transparency: > 90%, Up to 100%
-Scanning Speed: >50Scans/S
-Response Speed: <12ms
-Touch Type: Horizontal Multi Dot Touch Screen (Vertical way is optional)
-Touch precision: 0.625mm
-Minimum Touch object: ≥5mm
-Touch Intensity: Over 60,000,000 Single Point Touch
-Operation System: DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX
-Operating Voltage: DC 5V ±5%
-Power Supply: Keyboard Serial Interface
-Power: <1W (Current<200mA)
-Communication: RS-232 Interface Port, USB Port
-Vandal-Proof: Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
-Temperature Operating: -41°C ~70°C
-Temperature Storage: -50°C ~85°C
-Altitude: 3000m
-Noise: None

-Life Time: >10 Year

Mini-PC Configuration Specifications
-CPU: Intel Atom N525 dual core 1.8G processor
-Main board: MCP7A-ION
-Chip: Nvidia MC79
-Capacity of RAM: 4G
-Hard Disk: 320GB
-Integrated Graphics: NVIDIA Geforce 9400
-Frequedcy: 533MHZ
-Video: Realtek AL C662 HAD7.1
-Network interface card: RTL8111C Gigabit Ethernet Controller for 10/100/1000 M/S Ethernet Lan Connectivity

-Mouse and keyboard: Wireless (Optional)
