tci tricone button rock bits seal bearing 12 1/4" iadc 537 kingdream deep water well drilling
Structural features

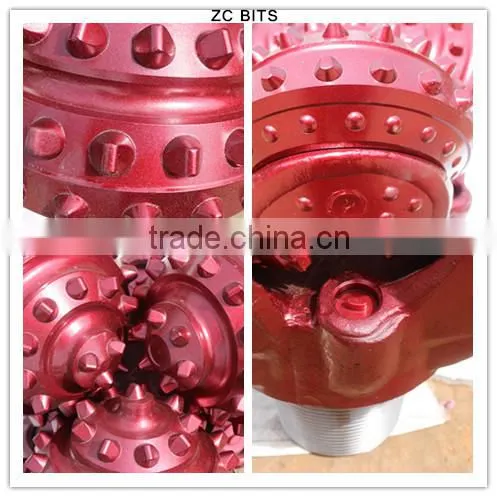

1.Cutting structure this type TCI tricone bits:
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
2.Gauge structure this type TCI tricone bits:
Multiple gaugeprotection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3.Bearing structure of this type TCI tricone bits:
High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
4.Seal and Lubrication of this type TCI tricone bits:
Premium O-ring, optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability .
5.Product Application this type TCI tricone bits:
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
Advantage:
- High-strength, high flexibility, high temperature and high wear resistance. 2. High-precision metal seal. 3. Locking roller ball, to adapt to high-speed. 4. The use of high strength high toughness carbide teeth, 5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock. 6. Cone bit to adapt to the soft, medium and hard of various strata. 7. Reasonable price and long working life.
Application
Rock drill bit is adapt to range from 20 to 150 Mpa.
3-cone drill is now widely used in geological exploration, anti-solid hole, engineering grouting, and so on.
Technical specifications:
|
IADC code (the main) |
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 536 535 537 547 |
Available size |
From 2 7/8’’ to 26’’ Larger sizes for hole opener bit,reamer bit |
Bearing type |
Sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA(rubber sealed journal bearing) aircooled bearing type |
Formation or layer |
Soft, medium soft, hard, medium hard, very hard formation |
|
Button size (extra fratures) |
Button bit,saw steel 1) Y-Conical teeth 2) X- chisel teeth 3) K- wide teeth 4) G- Gauge protection |
Material |
Tungsten Carbide |
Delivery terms |
By sea or by air |
Application |
Petroleum & gas,water well, mining and tectonic industries, oil field,construction,geothermal,directional boring, and underground foundation work |
Packing |
fumigation free of wooden case |
Payment Term |
T/T (30% downpayment and 70%balance before shipping.) |
MOQ |
1 Piece |
Supply Ability |
1000 Pieces/month |
Delivery Time |
within 7-15 work days |
Main market |
Canada USA Middle east Africa Europe |
Customers from many countries
ZhongCheng Workshop show
Tricone Bit Nozzles
ZhongCheng Certifiate
