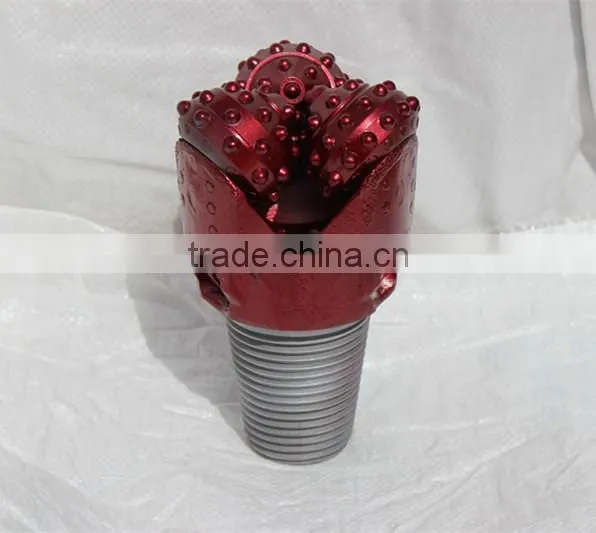

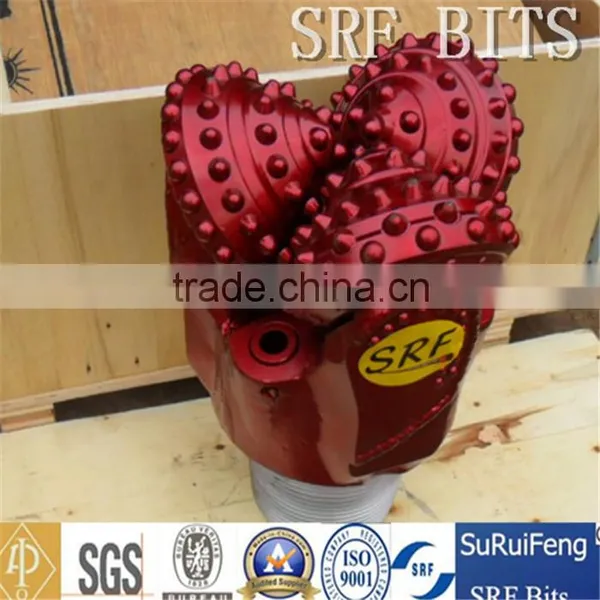

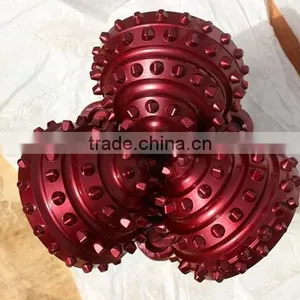

Help CenterHigh Quality 6 Inch IADC527 TCI Tricone Bit,drill Bit
Related Products
-
9 7/8inch IADC637 TCI Tricone Bit TCI Drill BitUS$ 800 - 3,600MOQ: 1 Piece -
12 1/2" IADC 537 Rock Roller Bit Drill BitUS$ 300 - 20,000MOQ: 1 Piece
-
14 3/4inch TCI Tricone Bit IADC547 Used for Rock DrillingUS$ 1,000 - 8,000MOQ: 1 Piece
-
12 1/4 IADC417 High Quality Rock Drill BitUS$ 500 - 30,000MOQ: 1 Piece
-
API 8 3/4" TCI Drill Bit/Insert Tricone Rotary Bit,water Well Drilling Equipment ,drilling for Groundwater Quality ChoiceUS$ 500 - 30,000MOQ: 1 Piece

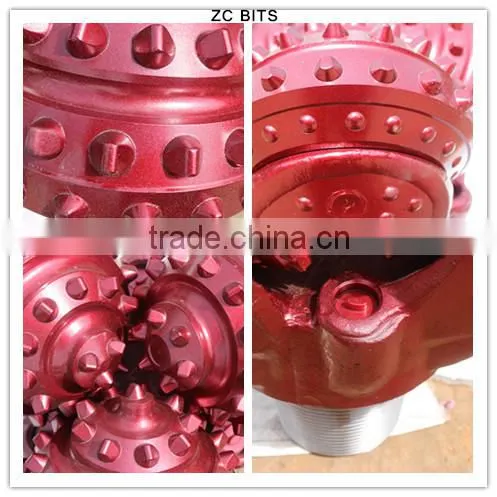

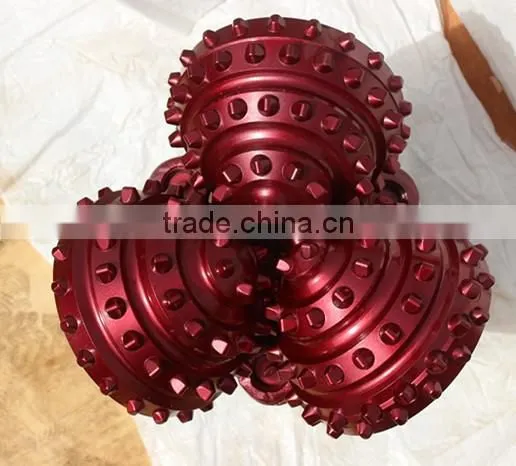

Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone.Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
Recommended Drilling Parameter
IADC |
WOB (KN/mm) |
RPM (r/min) |
Applicable Formations |
114/116/117 |
0.3~0.75 |
180~60 |
Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc. |
124/126/127 |
0.3~0.85 |
180~60 |
Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc. |
134/135/136/137 |
0.3~0.95 |
150~60 |
Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
214/215/216/217 |
0.35~0.95 |
150~60 |
Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
227 |
0.35~0.95 |
150~50 |
Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc |
|
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
| |||
