header pipe machine:1. PLC control: Mitsubishi
2. Hydraulic part: Taiwan
3.Air part: Airtac
with photo-electric protection
we can supply header pipe machine:

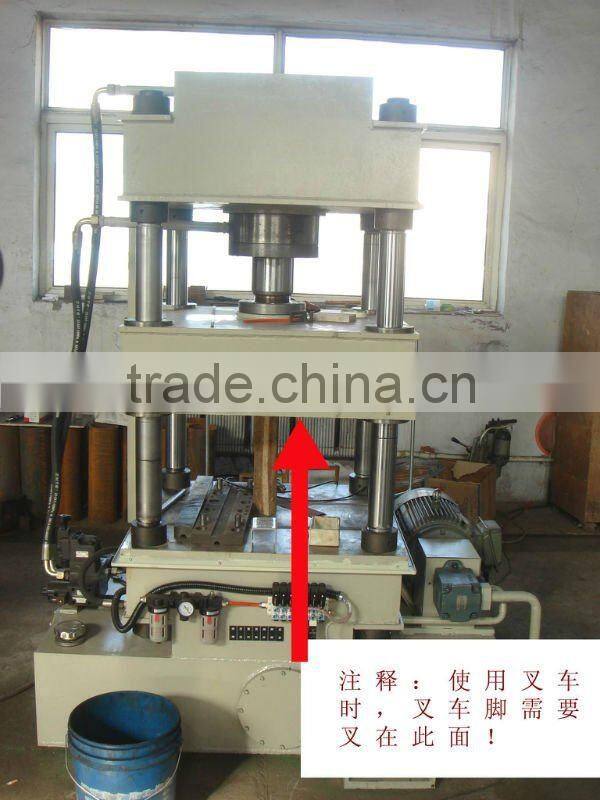

Collecting Pipe Forming Machine
1. Main Application
This equipment is specially used for making the aluminum pipes for parallel flow condenser by punching holes in the aluminum pipes. It is a necessary equipment for the parallel flow condenser production line. It is used for producing round collecting pipes or abnormal-shaped collecting pipes of the parallel flow condensers.
2. Working Process
Insert the cut-to-length aluminum pipe into the core shaft and push the start-up button. The equipment automatically positions itself, and punches holes in the aluminum pipe.
The driving force of the equipment is provided by a hydraulic system plus a lubrication system. The equipment is of a 4-column structure, and has a mold assembling and disassembling slideway for easy replacement of different molds. It has the characteristics of stable working perfomance, fast production speed, and convenient control. The electrical control system relies on a PLC controller.
3. Technical Parameters:
Working method: manual feeding, automatic forming and discharging;
Collecting pipe to be produced per time: 1 pipe
Pipe outer diameter* wall thickness:Φ(20-50)×Φ(1.0-1.5)
Pipe effective length: 200-650
Slot width and tolerance: 1.0~3mm; ±0.03 mm;
Slot length and tolerance: 5~12mm; ±0.05 mm;
Slot center-to-center distance and tolerance: 5~12mm; ±0.05 mm;
Slot forming time: 20 seconds per pipe;
Total power: 7.5KW
Hydraulic system working pressure: 8-21Mpa
pneumatic system working pressure: 0.5-0.8Mpa
overall dimension: 2500mm×2100mm×2750mm
equipment weight: 4T
4. Others
The buyer can also ask for extra molds. The collecting pipe can be normal round-shape design, D-shape design or other abnormal design.
