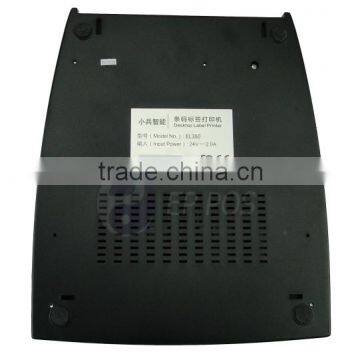

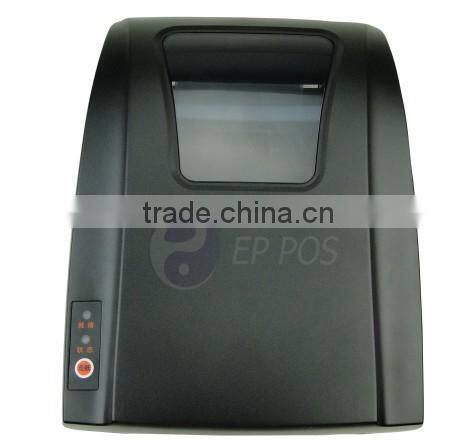

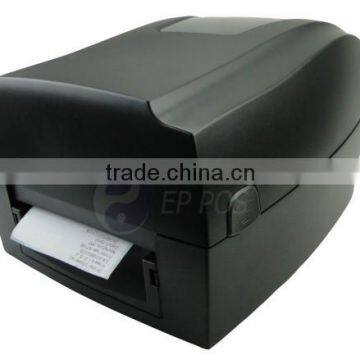

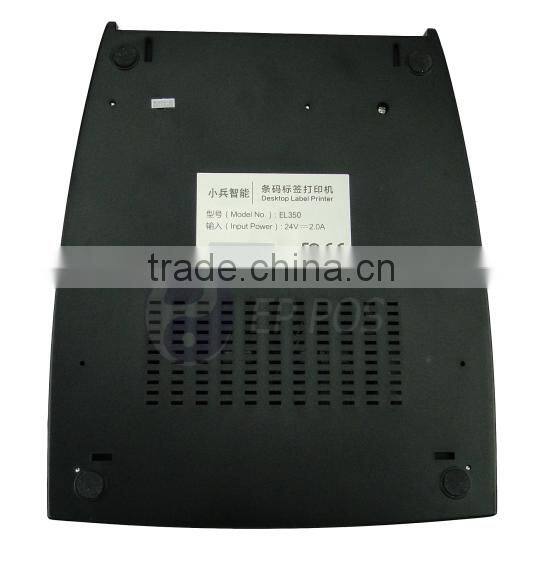

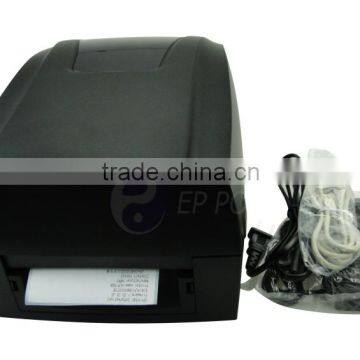

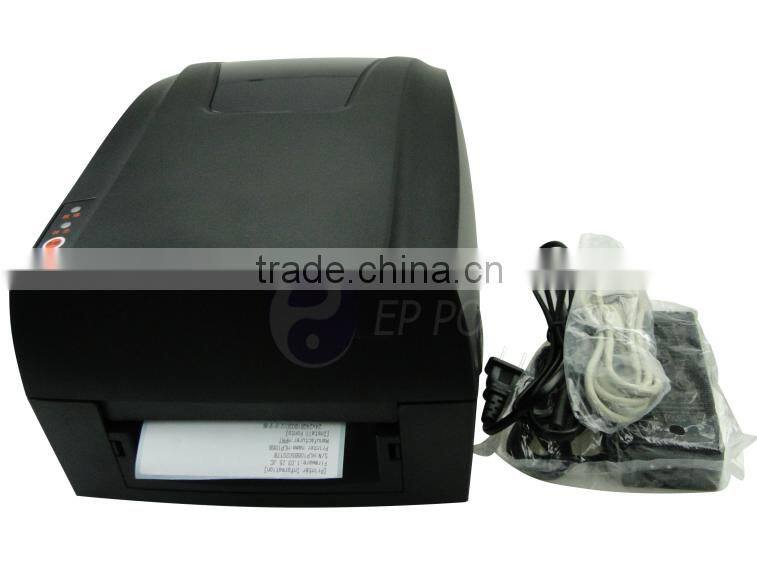

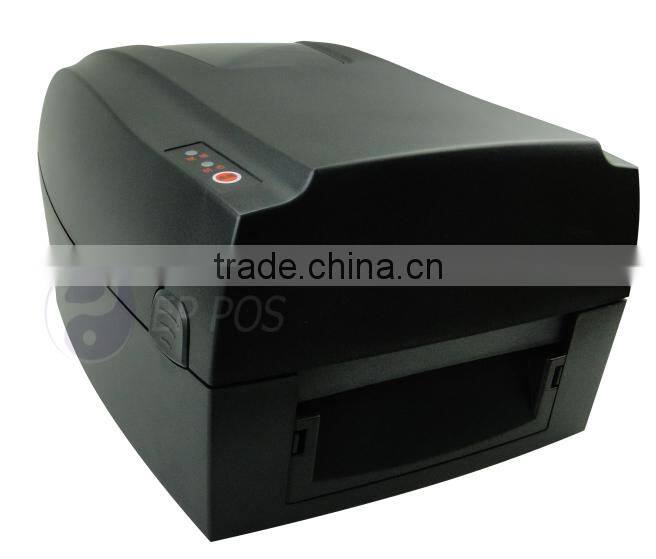

EL350 2015 Thermal line Direct Thermal transfer bar code label printer
EL350 is Thermal transfer bar code label printer with high quality. It contains the characteristics of Small volume, Light weight, steady performance, easy connection, Supporting the use of desktop devices or connect to PC. (tablet etc.) It can print 1D and 2D Bar code.
APPLICATION:
1) POS/retail;
2) Fical application;
3) Parking bills
4) Shipping, logistics ;
5) On-site repair/installation; warehouse;
6) Counter readings.
FEATURES:
- Ø Support big capacity thermal transfer ribbon
- Ø Printing speed up to 150mm/s

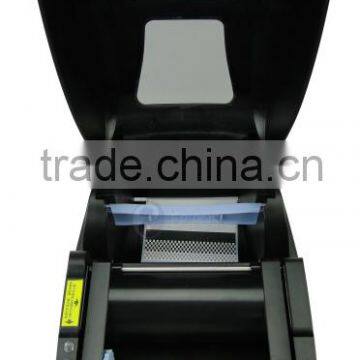

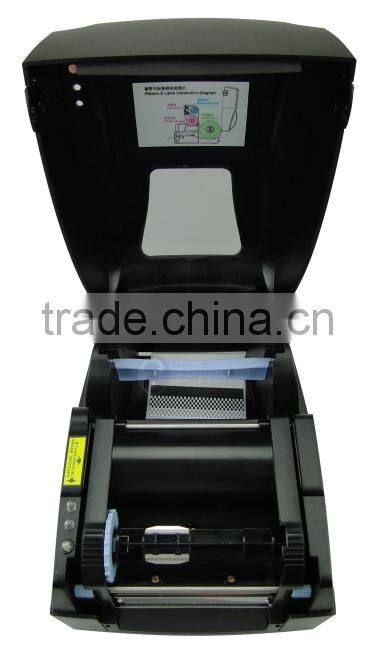

- Ø User friendly clamshell design
- Ø With external paper roll holder
- Ø Auto label detection function
- Ø Easy loading mechanism
- Ø Easy use and easy maintenance
Printing Parameter |
Print method |
Direct thermal and thermal transfer |
Resolution |
203dpi (8dots/mm) |
|
Printing width |
108±0.2mm |
|
Print speed |
Max.150mm/s |
|
Interface |
USB |
|
Paper |
Paper type |
Thermal receipt paper and thermal label paper |
Recommended paper |
FD210,PD150R,PD160R(OJI Paper CO.,LTD.) |
|
Paper width |
25.4mm(MIN.); 118mm(MAX.) |
|
Paper thickness |
0.06mm(Min.); 0.25mm(MAX.) |
|
External diameter |
127mm(MAX.) |
|
Internal diameter |
25.4mm,38.1mm,76.2mm |
|
Ribbon |
Material |
Wax base,resin matrix,polybase |
Width |
30mm(Min.);110mm(MAX) |
|
Length |
300 m/thickness 8.5μm |
|
Max external diameter |
68mm(MAX) |
|
Axes |
25.4mm |
|
Memory |
RAM |
2M Byte |
Flash |
2M Byte |
|
Character |
Chinese |
GB18030 16x16 24x24 |
Alphanumeric |
ASCII 9x17,12x24 |
|
Build-in font |
Magnify |
Vertically,horizontally |
Rotation |
Print in 0°,90°,180°,270° |
|
Barcode |
1D |
UPC-A,UPC-E,EAN8,EAN13,CODE39,CODE128,CODE128M CODE93 |
2D |
QR code |
|
Detection function |
Sensor |
Label detection,cover open detection,paper end detection,ribbon detection. |
LED |
READY LED |
Two-color LED(red and greenish yellow) |
STATUS LED |
Two-color LED(red and greenish yellow) |
|
Power supply |
Input |
24V ~ 2A(External power adapter) |
Command |
|
TSPL |
Physical spec. |
Operation condition |
0 ~ 40℃/20 ~ 85%RH |
Storage condition |
-20 ~ 70℃/5 ~ 95%RH |
|
Dimensions L*W*H |
285(L)*226(W)*171(H)mm |
|
Weight |
2.26kg(Without roll paper and ribbon) |
|
Reliability |
TPH lifetime |
50km |
