Customizable Bank VTM VideoTeller Machine
US$ 3,000 - 10,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hunghui
Model Number:
KH-2061
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ATM / Automated Teller Machine / Automated Bank MachineUS$ 3,000 - 10,000MOQ: 1 Piece -
Led Commercial Advertising ad Player Digital Signage KioskUS$ 530 - 1,500MOQ: 1 Set
-
Cash Machine Bank Card Reader and Coin Acceptor Payment KioskUS$ 1,000 - 2,900MOQ: 1 Piece
-
Bank Self-service Payment Floor Standing Kiosk With Credit Card ReaderUS$ 1,000 - 2,900MOQ: 1 Piece
-
All-in-one Cash Payment Kiosk With Bank Card ReaderUS$ 1,000 - 2,900MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Hunghui
Model Number
KH-2061

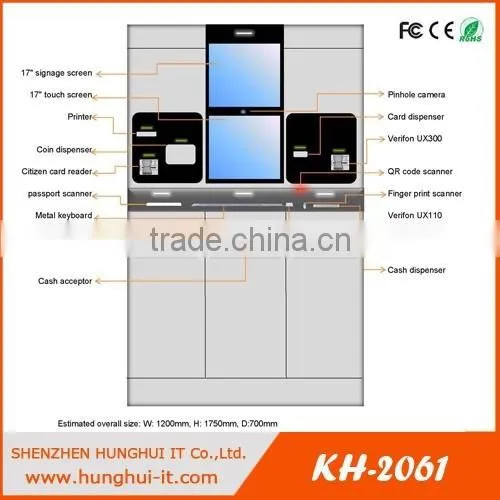

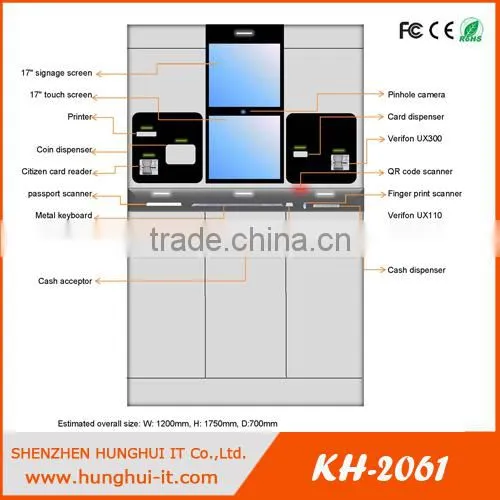

Customizable Bank Video Teller Machine
picture for reference only, we could customize the machine per your requests.

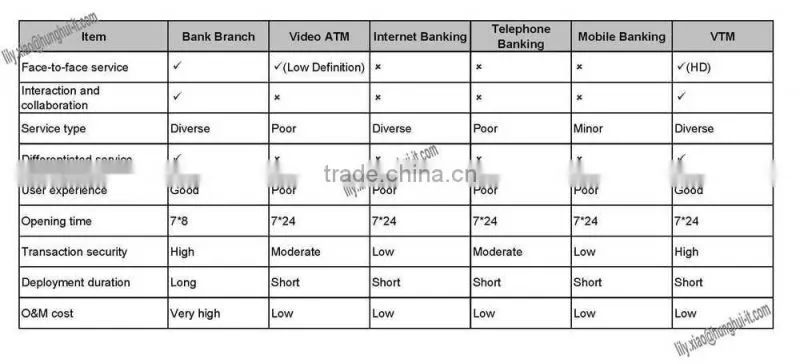

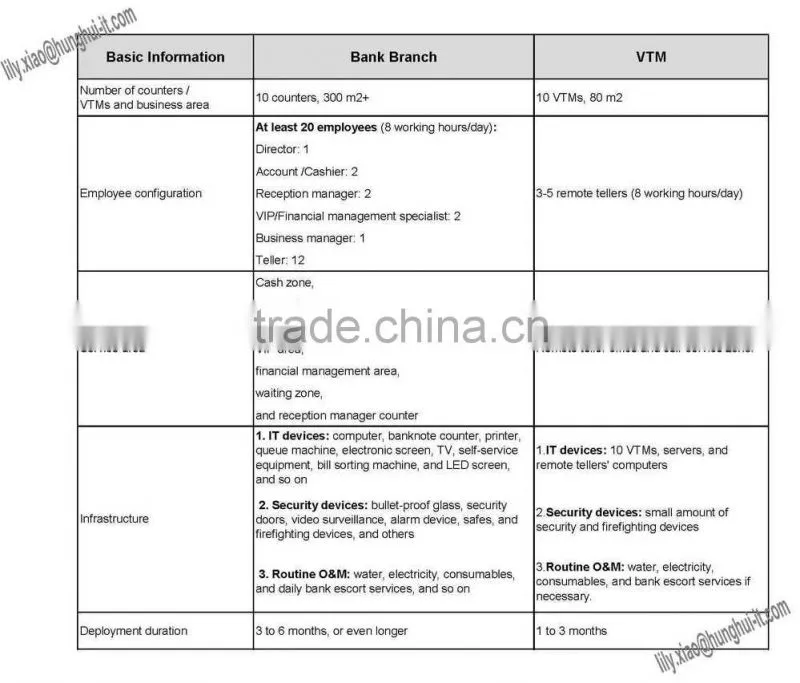

More and more Banks invested Video Teller Machine, here below are some datas for Bank branch and VTM:
Product Description
|
Basic Configuration
| ||
|
Central PC (Customizable) |
Motherboard |
H61 / Advantech |
| CPU | Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional: i3/i5/i7 | |
| RAM | DDRIII 4G / 8G | |
| HDD | 500G, 7200rpm, 3.5" S-ATA | |
| Inter face | USB2.0*10,COM*10, VGA*2,DVI*1,SATA2.0*4,LAN*2,Audio*1,MIC*1 | |
|
Monitor
|
Screen size | 15", 17", 19" 22", etc. |
| Brightness | 300cd/m2 | |
| Contrast | 800:1 | |
| Response time | 5ms | |
| Dot pitch | 0.264mm | |
| Best resolution | 1280x1024 | |
|
Touch Screen |
Screen size | 15", 17", 19" 22", 26", etc. |
| Touch type | SAW, Infrared, Capacitive | |
| Resolution | 4096x4096 | |
| Feature | High transparence, precision and durability | |
|
Kiosk Enclosure |
Material | Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness. |
| Surface finishing | Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust. | |
| Color and Logo | Customizable | |
| Features | Easy service access through front or back door. |
|
| Accessories | Speakers | Stereo loudspeaker, 8Ω 10W |
| Fans | Internal ventilation system | |
| Power Supply | Input voltage | 100~240V/AC |
| Frequency | 50Hz to 60Hz | |
| Operation System | Windows 2000 / Windows XP / Windows 7 / Vista / Windows 8 / Linux / Android | |
| Package | Safe packing with bubble foam, carton box or plywood case | |
| Safety | Anti-vandal safety; | |
| Electric safety: compliant with GB4943 Standard; | ||
| EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard | ||
| Monitoring system: Digital video security monitoring system (optional) | ||
|
Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ; Card reader is compliant with EMV Level1 Standard; | ||
All hardware and SDK are WOSA/XFS and ISO8583 compliant.
SDK are Free of Charge.
Optional devices
|
Select optional devices according to your needs
| ||
|
Printer |
Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter |
|
| Dot Matrix : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter | ||
| Laser ptiner: A4, monochrome or color printer | ||
| Photo printer: Dye sublimation printer | ||
| Card printer: Encoding Magnetic cards, Contact or Contactless IC cards | ||
| Bankbook : 24 pin dual direction. | ||
|
Card reader
|
Magnetic Card: ISO7810 ID-1,7811 |
|
| RF ISO14443 Type A & B | ||
| Mifare | ||
| IC Card: ISO7816-2, T=0,T=1 CPU Card,SAM Card | ||
|
Biometric scanner |
Fingerprint scanner | |
| Iris scanner | ||
| Face recognition | ||
| Palm vein scanner | ||
|
Document scanner |
1D/2D barcode scanner |
|
| A4 document scanner | ||
| Check scanner | ||
| ID/Passport scanner | ||
| Cash or coin modules | Cash acceptor | Acceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes. |
| Coin acceptor | Coin diameter: 15~32mm, thickness: 1.5~2.5mm; |
|
| Cash dispenser | 1 to 6 cassettes | |
| Coin dispenser | Coin diameter: 18~28.5mm, thickness: 1.65~3.2mm; | |
| Cash recycler | Recycle 80 notes in mixed denominations; Recycle 1 to 4 denominations | |
| Coin recycler | Coin diameter: 15.7~28.5mm, thickness: 1.1~2.5mm; maximum 5 denominations. |
|
| Keyboard |
EPP | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65 |
| Metal keyboard | 64bits metal keyboard with trackball/touchpad, IP 65 | |
| Other peripheral | Advertising screen /Wifi /GPRS /Webcamera /UPS /Card dispenser /3G Module | |
Our Services
- Fast response: Our Sales representative will respond your inquries within 12 working hours;
- Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
- Software development support: We provide API for all the components to support software development, and we could also provide software developing service if you could provide necessary APIs
- Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
- Warranty: free warranty for 12 months, and lifetime maintenance support.
