Customizable ATM Geld Automaat Cash Machine Automated Teller Machine

Name: Customizable ATM Geld Automaat Cash Machine Automated Teller Machine
Brand: Hunghui
SKU: 116763105

US$ 3,000 - 10,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Hunghui

Model Number:

KH-2012

Shenzhen Hunghui IT Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Hunghui

Model Number KH-2012

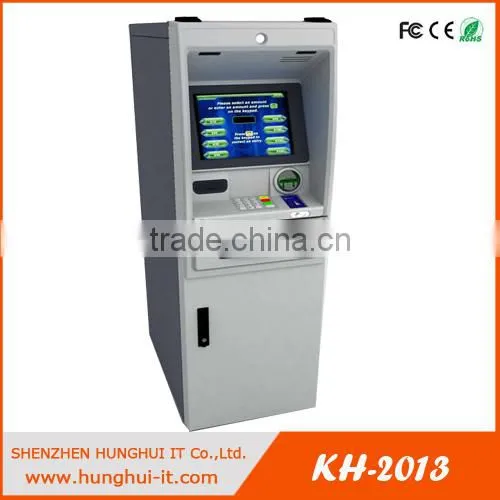

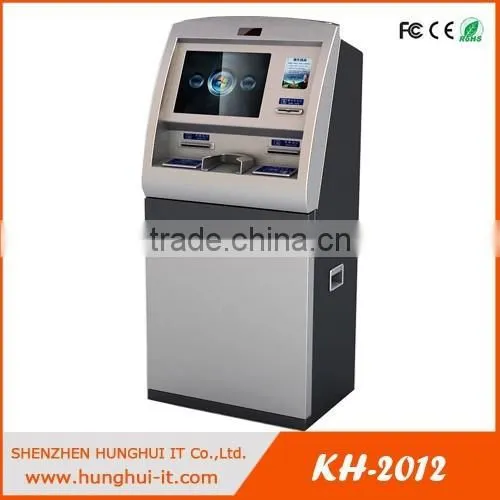

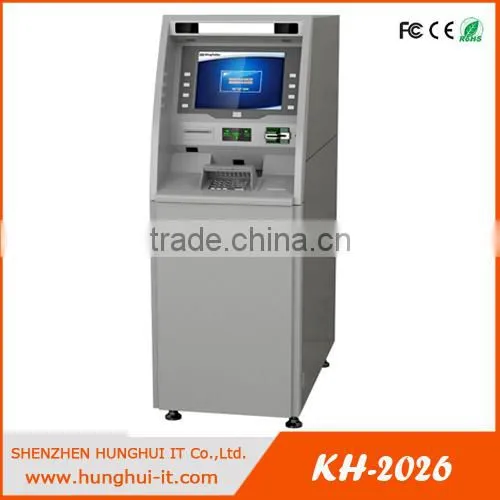

customizable ATM Geld automaat cash machine automated Teller machine

picture for reference only, we could customize the machine per your requests.

Product Description

Basic Configuration
Central PC (Customizable)	Motherboard	B75
	CPU	Dual core i3/i5/i7
	RAM	DDRIII 4G / 8G
	HDD	500G, 7200rpm, 3.5" S-ATA
	Inter face	RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card; VGA
Monitor	Screen size	15", 17", 19" .
	Brightness	250cd/m² ~400cd/m²
	Contrast	800:1
	Response time	5ms
	Dot pitch	0.264mm
	Best resolution	1280x1024
Touch Screen	Screen size	15", 17", 19" .
	Touch type	SAW, Infrared, Capacitive
	Resolution	4096x4096
	Feature	High transparence, precision and durability
Kiosk Enclosure	Material	Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness.
	Surface finishing	Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust.
	Color and Logo	Customizable
	Features	Easy service access through front or back door.
Accessories	Speakers	Stereo loudspeaker, 8Ω 10W
Accessories	Fans	Internal ventilation system
Power Supply	Input voltage	100~240V/AC
Power Supply	Frequency	50Hz to 60Hz
Operation System	Windows 2000 / Windows XP / Windows 7 / Vista / Windows 8 / Linux / Android
Package	Safe packing with bubble foam, carton box or plywood case
Safety	Anti-vandal safety;
	Electric safety: compliant with GB4943 Standard;
	EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard
	Monitoring system: Digital video security monitoring system (optional)
	Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ; Card reader is compliant with EMV Level1 Standard;

All hardware and SDK are WOSA/XFS and ISO8583 compliant.

SDK are Free of Charge.

Optional devices

Select optional devices according to your needs
Printer	Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter
Card reader	Magnetic Card: ISO7810 ID-1,7811
	RF ISO14443 Type A & B
	Mifare
	IC Card: ISO7816-2, T=0,T=1 CPU Card,SAM Card
Cash or coin modules	Cash acceptor	Acceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes.
	Cash dispenser	1 to 6 cassettes
	Coin dispenser	Coin diameter: 18~28.5mm, thickness: 1.65~3.2mm;
	Cash recycler	Recycle 80 notes in mixed denominations; Recycle 1 to 4 denominations
Keyboard	EPP	3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65
Other peripheral	Wifi /GPRS /Webcamera /UPS /3G Module

Our Services

Fast response: Our Sales representative will respond your inquries within 12 working hours;
Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
Software development support: We provide API for all the components to support software development, and we could also provide software developing service if you could provide necessary APIs
Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
Warranty: free warranty for 12 months, and lifetime maintenance support.
