Single Folded Edge Cross-counter Flow Plate Heat Exchanger
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TKM
Model Number:
HBS-LB539/316
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Efficiency up to 90% 0.12mm Thickness Flat Aluminum Foils Crossflow Plate Heat ExchangerNegotiableMOQ: 1 Unit -
Room Ventilation System Cross-counter Flow Heat ExchangerNegotiableMOQ: 1 Unit
-
Plate Heat Exchanger--sensibleNegotiableMOQ: 100 Sets
-
Completely Joint Sealing Counterflow Plate Heat ExchangerNegotiableMOQ: 1 Unit
-
0.18mm Thickness Flat Aluminum Foils Cross-counter Flow Heat ExchangerNegotiableMOQ: 1 Unit

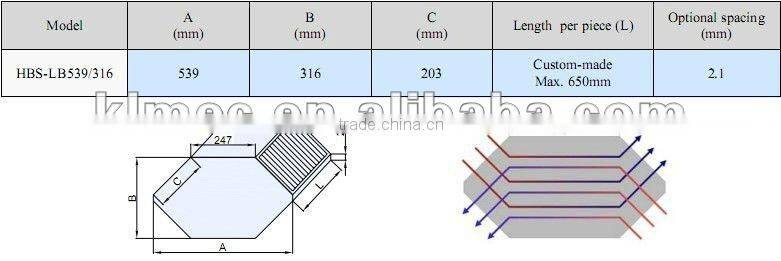

Place of Origin
China
Brand Name
TKM
Model Number
HBS-LB539/316
Structure
Plate Heat Exchanger
Liquid Flow Rate
1-3m/s
Certification
CE
Specifications
1.Sensible heat recovery2.2-side press shaping
3.Made by flat aluminum foils of 0.12mm
4.Single folded edge
Working principle aluminum foil cross counter flow plate heat exchanger
Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated.

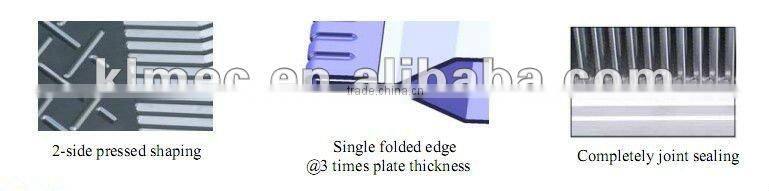

Main features:
1. Sensible heat recovery
2. Total separation of fresh & exhaust air streams
3. Heat recovery efficiency up to 90%
4. 2-side press shaping
5. Single folded edge
6. Completely joint sealing.
7.Made by flat aluminum foils of 0.12mm thickness
8. Partial air flows crossly and partial air flows counter
9. Suitable for room ventilation system and industrial ventilation system.
