Help CenterHydrophilic Aluminium Foil Cross-counter Flow Air Conditioner Core
Related Products
-
Cross Flow Heat ExchangerNegotiableMOQ: 1 Unit -
Counter Flow Heat Exchange CoreNegotiableMOQ: 1 Set
-
Antiseptic Hydrophilic Aluminium Foil Counterflow Plate Heat ExchangerNegotiableMOQ: 1 Unit
-
Antiseptic Hydrophilic Aluminium Foil Crossflow Plate Heat ExchangerNegotiableMOQ: 1 Unit
-
Cross Flow Plate Heat ExchangerNegotiableMOQ: 1 Unit
Specifications
Hydrophilic aluminiumResistant to corrosion
Effeciency is up to 75%
Material.
The Counter flow heat exchanger core is major made of antiseptic hydrophilic aluminium foil, also have epoxy coating aluminium foil to choose from, the heat exchanger do not have secondary pollution, but with fast thermal conductivity, and high heat efficiency. The frame is made of galvanized sheet.
Working Principle

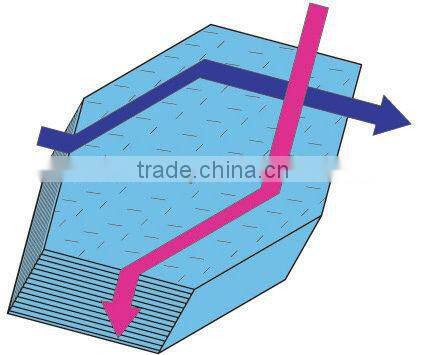

The cross flow and counter flow heat exchanger core has two air streams, one part is cross flow, and other part is counter flow, combined the working methods both cross flow and counter flow heat exchanger core, achieve more higher heat efficiency.
Feature
1.Adopt antiseptic hydrophilic aluminium, resistant to corrosion, with long service life.
2.Module and compact structure, no use of rivets or screws.
3.No running components, low maintenance cost.
4.Suitable for washing with water or neutral detergent.
5. Extremly high strength and pressure related stability.
Production Technology

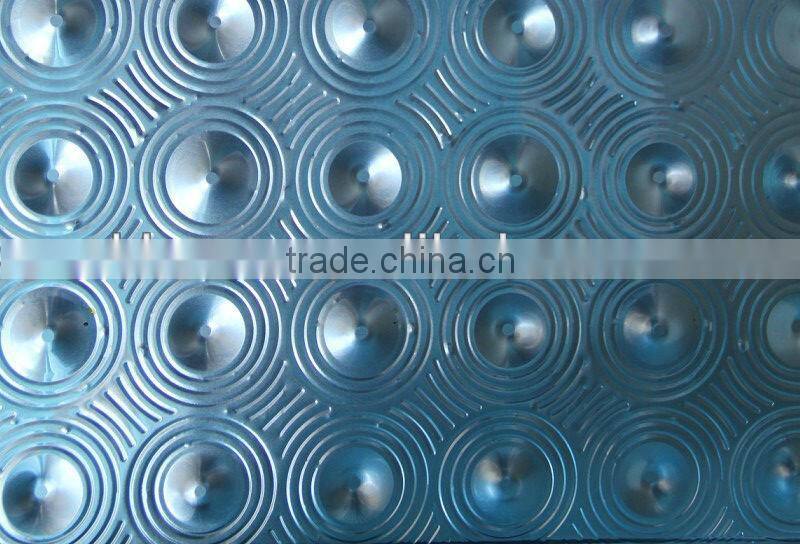

1.The surface of heat exchanger core was processed with heat transfer enhancement techniques, increased the 10% heat transfer area.
2.Convex and concave air channel, ensure the strength and tightness of heat exchanger core, could bear high pressure.

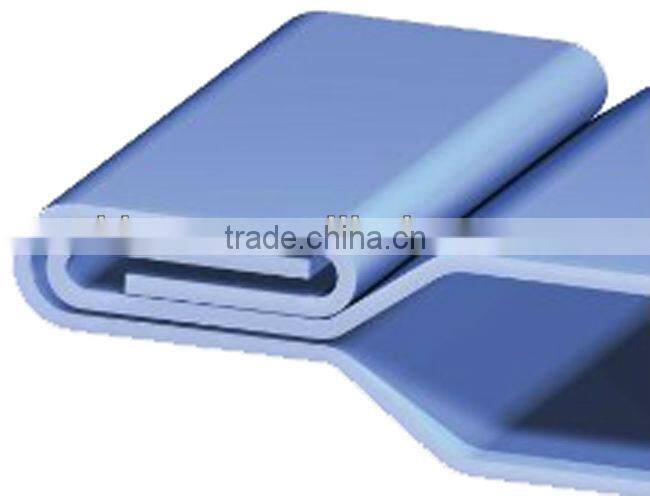

3.Cross air channel, double folding process of the face side edges, which is equal to 5 times material thickness, ensure the high intensity and tightness.
4. All joints are airproofed by airproof glue, ensured that the heat exchanger core has excellent air tightness.
