Drilling in Medium Hard Formation Using 12 1/4" - 14 3/4" and 17 1/2"

Drilling in Medium Hard Formation Using 12 1/4" - 14 3/4" and 17 1/2" thumbnail-1
Drilling in Medium Hard Formation Using 12 1/4" - 14 3/4" and 17 1/2" photo-1
US$ 500 - 30,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SRF&Kingdream
Model Number:
various, TCI drill bit
Contact Supplier Request Quote Chat Now
Hejian Zhongcheng Drill Bit Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name SRF&Kingdream
Model Number various, TCI drill bit
Type Other, Center Drill Bit, Drill Bit
Material Tungsten Carbide
Use Other, Well Drilling, Well Drilling,gas,water and oil will drilling

Specifications

Specifications
1>Meet with API Spec7-1 &ISO 9001:2008
2>Good quality and after-sale service
3>30 years of experience.

9 7/8" 250.8mm kingdream TC/RR insert rock roller bit

Structural features

1.Cutting structure this type TCI tricone bits:

The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.

2.Gauge structure this type TCI tricone bits:

Multiple gaugeprotection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

3.Bearing structure of this type TCI tricone bits:

High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.

4.Seal and Lubrication of this type TCI tricone bits:

Premium O-ring, optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability .

5.Product Application this type TCI tricone bits:

It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.

Advantage:

1. High-strength, high flexibility, high temperature and high wear resistance.
2. High-precision metal seal.
3. Locking roller ball, to adapt to high-speed.
4. The use of high strength high toughness carbide teeth,
5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock. 6. Cone bit to adapt to the soft, medium and hard of various strata.
7. Reasonable price and long working life.



Application

Rock drill bit is adapt to range from 20 to 150 Mpa.

3-cone drill is now widely used in geological exploration, anti-solid hole, engineering grouting, and so on.

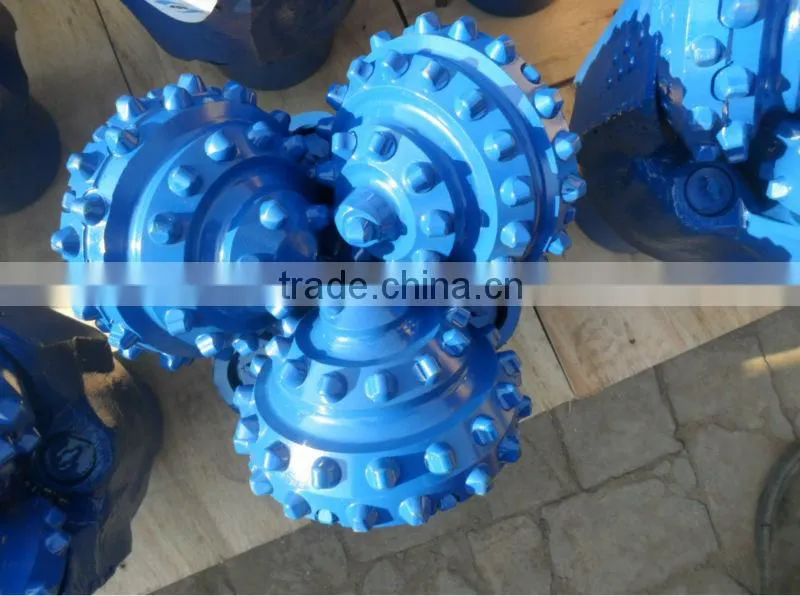

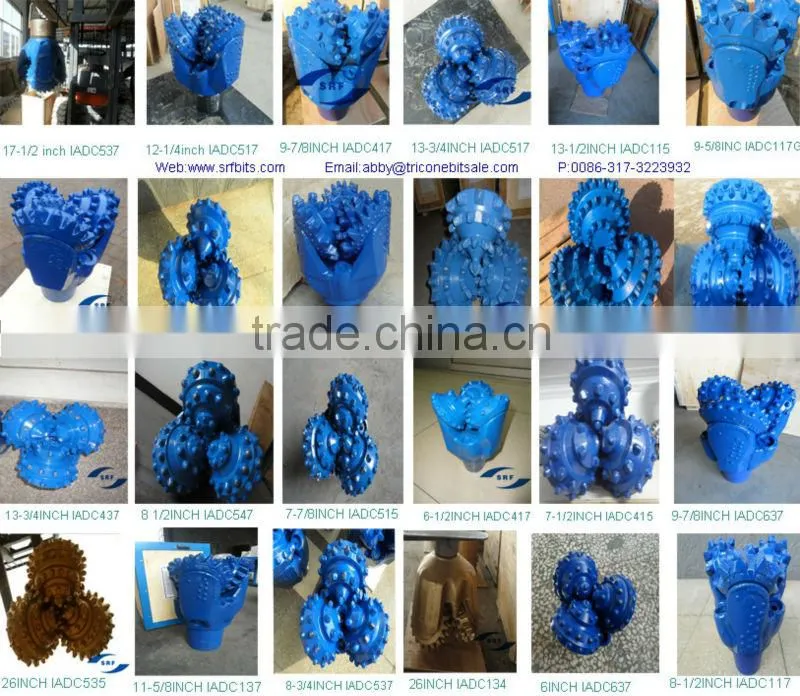

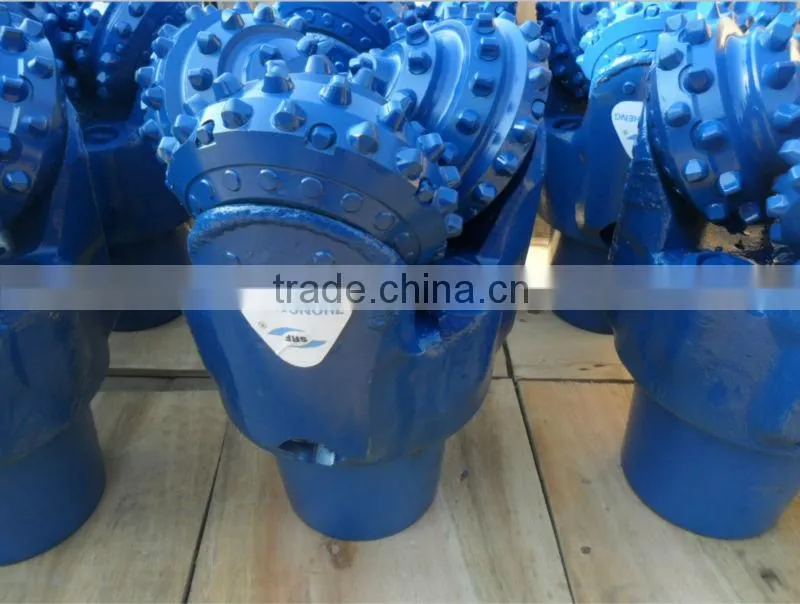

drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"

drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"

 drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"

 drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"

Recommended operating parameters



WOB 90 ~ 280(KN)



Ideal WOB range 150~220(KN)



Rotary speed 80 ~ 300 (rpm)



Ideal Rotary speed range 110~250(rpm)





How to complete the whole deal

Step:

1. Firstly decide the design, material and color

2. Decide the size in accordance with client's requirement and our recommendation

3. We will give the best offer.

4. Client's accept the offer and we send proforma invoice.

5. Client transfers 30%-50% deposit and production begins

6. After production, we will send ready products photo

7. After client's confirmation, we will arrange shipment, and send copy shipping documents like B/L, commercial invoice and packing list

8. Client transfer balance payment and we will send original documents by express or Telex Release



drilling in medium hard formation using 12 1/4" - 14 3/4" and 17 1/2"
