Beijer HITECH PWS6620S-N 5.7 Inch Hmi With Ethernet

Name: Beijer HITECH PWS6620S-N 5.7 Inch Hmi With Ethernet
Brand: HITECH
SKU: 116749545
Availability: InStock

US$ 1 - 400 MOQ: 1 Piece

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

HITECH

Model Number:

PWS6620S-N

Shenzhen Kwoco Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name HITECH

Model Number PWS6620S-N

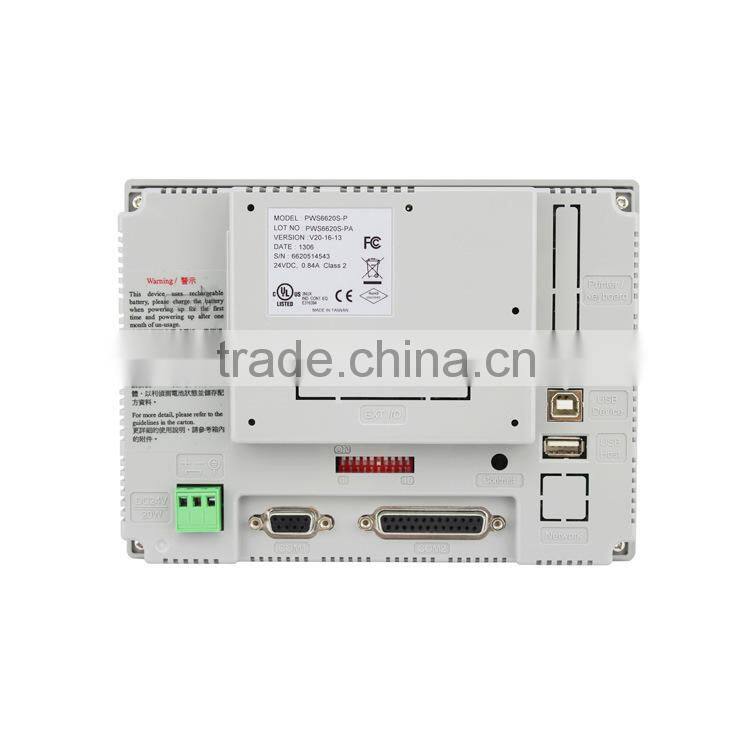

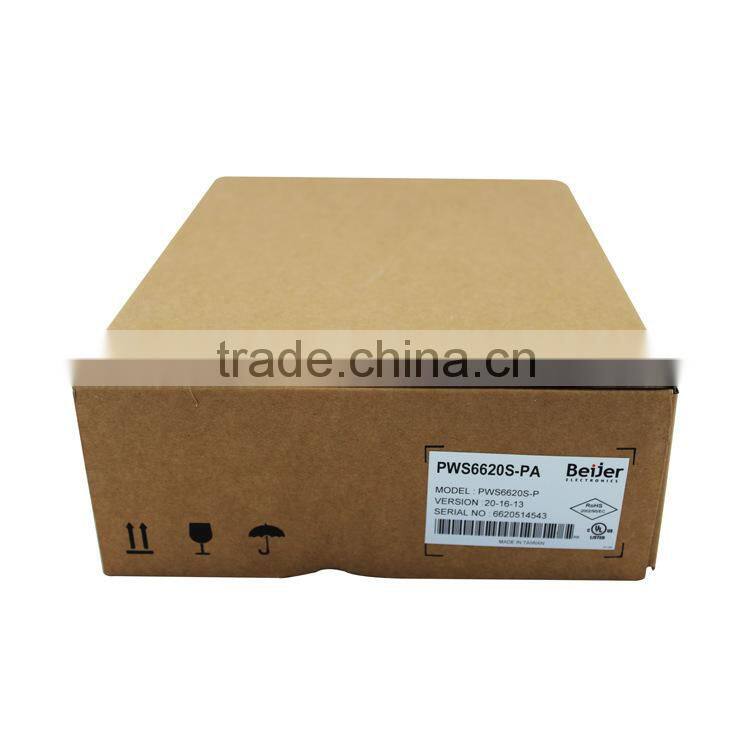

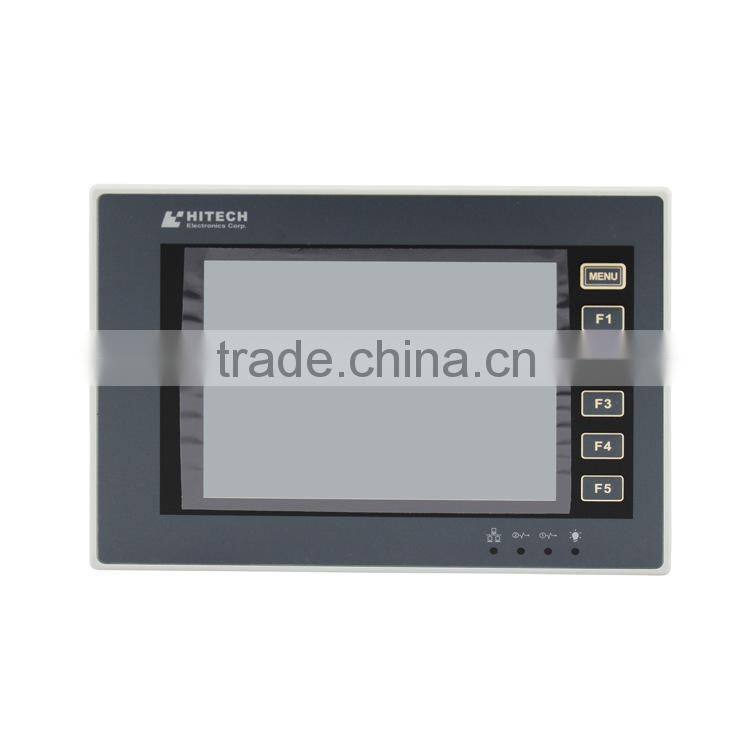

Detailed Images

Product Description

Item	PWS6620S-P	PWS6620S-N
Display Type	Mono STN LCD
Display Color	16 shades of blue
Display Size	5.7” (diagonal); display area is 117.2 X 88.4mm
Number of Pixels	320x240; Number of 8x8 characters displayable is 40x30.
Display Adjustment	Via touch panel & VR on the back
Back Light	CCFT; Lifetime 50,000 hours @25 ºC
Touch Screen	Analog
Keypad	1 “Menu” key and 5 user-defined Function keys (F1 ... F5)
Keypad Pressure & Lifetime	350±50gf operating force, Lifetime is over 1 million activations.
Input Power	24VDC±15% ; less than 20W
Flash ROM	4M bytes
RAM	512 K bytes
CPU	32 bits RISC
Battery Backed Memory	512 K bytes
RTC	Yes (w/Replaceable Lithium Battery) Notice: When using the machine for the first time, please remember to reset RTC.
Data/Recipe	512K bytes
COM1	9-pin female connector: RS232/RS485
COM2	25-pin female connector: RS232/RS422/RS485
Multi-functional Port	—
Ethernet	—	Yes
Front Panel Seal	IP65
Ambient Temperature	0~50ºC
Storage Temperature	-10~60ºC
Ambient Humidity	10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing
Vibration Endurance	0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions
Shock Endurance	10G, 11ms three times in each direction of X, Y, and Z axes
CE	EN61000-6-4,EN61000-6-2

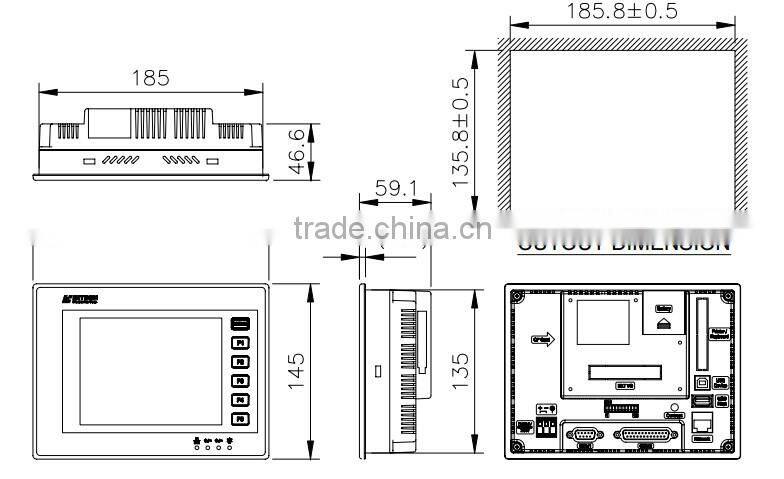

External Dimensions (mm)	195(W) x 145(H) x 59.1(D)
Cut-out Dimensions (mm)	185.8 x 135.8
Weight	0.81 Kg
Cooling	Natural cooling
