PFXGP4107G1D PROFACE Hmi GP4107G1D
US$ 1.00 - 1.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
proface
Model Number:
GP4107G1D
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN/ HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PFXGP4107W1D PROFACE Hmi GP4107W1DUS$ 1.00 - 1.00MOQ: 1 Piece -
Proface 3.4 Inch HMI GP4104G1D / PFXGP4104G1DUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGC4401WAD PROFACE Hmi GC-4401WUS$ 1.00 - 1.00MOQ: 1 Piece
-
Proface Touch Screen GP4106W1D/ PFXGP4106W1DUS$ 1.00 - 1.00MOQ: 1 Piece
-
PFXGC4501WAD PROFACE Hmi GC-4501WUS$ 1.00 - 1.00MOQ: 1 Piece
Place of Origin
Japan
Brand Name
proface
Model Number
GP4107G1D
Kwoco Automation Co.,ltd have good price on PLC+HMI+INVERTER+SERVO
The Advantages Of Brand: brand:Mitsubishi, Simatic Siemens, Panasonic, Delta, NAIS, Yaskawa, ABB, Omron, Mitsubishi, Proface, Weinview, Hitech,Yaskawa,Fuji;Sick, Keyence,Koyo, Ifm
NEW Original productS!!!
more information contact:
Functional Specification
| Display Type | STN Monochrome LCD |
|---|---|
| Display Size | 3.4" |
| Resolution | 200 x 80 pixels |
| Dot pitch | W0.4 x H0.4 mm [W0.02 x H0.02 in.] |
| Effective Display Area | 79.985 x 31.985 mm |
| Display Colors | Monochrome Green/Red/Orange (16 Levels) |
| Backlight | Green/Red LED (User nonreplaceable parts. Factory replacement required.)*1 |
| Brightness Control | 16 Levels (Adjusted with the touch panel) |
| Contrast Control | 8 Levels (Adjusted with the touch panel) |
| Backlight Service Life | Green: 50,000 hrs. or more, Red 10,000 hrs. or more (each in continuous operation at 25°C before backlight brightness decreases to 50%) |
| Language Fonts | Japanese, ASCII, Chinese (Simplified), Chinese (Traditional), Korean, Cyrillic, Thai*2 |
| Character Sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 80 pixel fonts, Image font: 8 to 72 pixel fonts |
| Font Sizes | Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times. |
| 8 x 16 dots | 25 char. x 5 rows |
| 16 x 16 dots | 12 char. x 5 rows |
| 32 x 32 dots | 6 char. x 2 rows |
| Application Memory | FLASH EPROM 2.2 MB*3 |
| Data Backup | 128KB*4 |
| Clock Accuracy | Uses the clock of an external device*5 |
| Touch Panel Type | Resistive Film (analog) |
| Touch Panel Resolution | 1,024 x 1,024 |
| Touch Panel Service Life | 1,000,000 times or more |
| Serial (COM1) | RS-485 (isolation), Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Odd or Even, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps (MPI), Connector: D-Sub9 (socket) |
| USB (TYPE-A) | Conforms to USB2.0 (Type-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Communication Distance: 5 m or less*6 |
| USB (mini-B) | Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m or less |
General Specification
| International Safety Standards | CE UL |
|---|---|
| Rated Input Voltage | DC 24V |
| Input Voltage Limits | DC 19.2 to 28.8V |
| Allowable Voltage Drop | 3 ms or less |
| Power Consumption | 3.4 W or less |
| In-Rush Current | 30 A or less |
| Voltage Endurance | AC 1,000V, 20 mA for 1 minute (between charging and FG terminals) |
| Insulation Resistance | DC 500 V, 10 MΩ or more (between charging and FG terminals) |
| Surrounding Air Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | -20 to 60 °C (-4 to 140 °F) |
| Ambient Humidity | 10 to 90 % RH (Wet bulb temperature: 39 °C or less - no condensation.) |
| Storage Humidity | 10 to 90 % RH (Wet bulb temperature: 39 °C or less - no condensation.) |
| Dust | 0.1 mg/m³ or less (non-conductive levels) |
| Pollution Degree | For use in Pollution Degree 2 environment |
| Atmosphere | Free of corrosive gases |
| Air Pressure (altitude range) | 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less) |
| Vibration Resistance | IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (100 min) |
| Concussion Resistance | IEC/EN61131-2 compliant, 147m/s² X,Y,Z directions for 3 times |
| Noise Immunity | Noise Voltage: 1,000Vp-p, Pulse Duration: 1µs, Rise Time: 1ns, (via noise simulator) |
| Noise Immunity (Fast Transient Burst Noise) | Power Line: 2 kV (IEC/EN61000-4-4), COM Port: 1 kV (IEC/EN61000-4-4) |
| Electrostatic Discharge Immunity | Contact Discharge Method: 6 kV/Air Discharge Method: 8 kV (IEC/EN61000-4-2 Level 3) |
| Grounding | Functional grounding: Grounding resistance of 100Ω, 2mm² or thicker wire, or your country's applicable standard. (Same for FG and SG terminals) |
| Structure | IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*7 |
| Installation Configuration | Embedded panel |
| Cooling Method | Natural air circulation |
| Weight Approx. | 0.2 kg [0.4 lb] or less (display unit only) |
| External Dimensions | W116.5 x H77.5 x D28 mm [W4.59 x H3.05 x D1.1 in.] |
| Panel Cut Dimensions | W 105.0mm [4.13in] x 66.0mm [2.60in], Panel thickness area: 1 to 5 mm [0.04 to 0.2 in.]*8 |

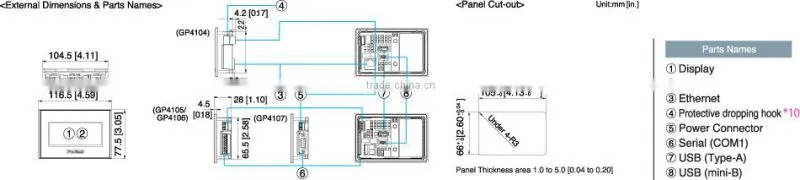

External Dimensions
