QI standard wireless transmitter receiver for samsung NOTE II

Specifications

Quick Details

• Place of Origin: Fujian, China (Mainland)
• Brand Name: SCUD
• Model Number: WR08
• Type: Emergency / Portable
• Use: Mobile Phone
• Input: DC5.0V
• Output: DC5.0V 1.5A (Max)
• Net Weight: 5g
• Dimension: 63mm*46mm*1mm

Packaging & Delivery

Specifications

Scud qi wireless transmitter receiver for Samsung Galaxy Note 2 N7100

Scud Qi wireless charger receiver for Note 2 Samsung Galaxy Note 2 N7100

Scud wireless charger receiver WR08 for Note 2 is a Qi mark products. With this tiny and thin gadget you can charge your Note 2 by wireless charger easily. You only have to paste this little gadget on the top of the battery, by connect the contactor on Note 2 right middle with the WR08 contactor, it will be finished for preinstallation. It is a sconds works.

About Qi and the Wireless Power Consortium

 Established in December 2008, the Wireless Power Consortium’s mission is to establish Qi as the global standard for wirelessly charging electronic products. The more than 140 members of WPC include industry leaders in mobile phones, consumer electronics, batteries, semiconductors, components, wireless power technology and infrastructure such as wireless operators, furniture and automotive parts companies. Qi products are available in the United States, Asia Pacific, and Europe.

SCUD is one of the WPC members

/member-list/details/18245/scud-fujian-electronics-co-ltd

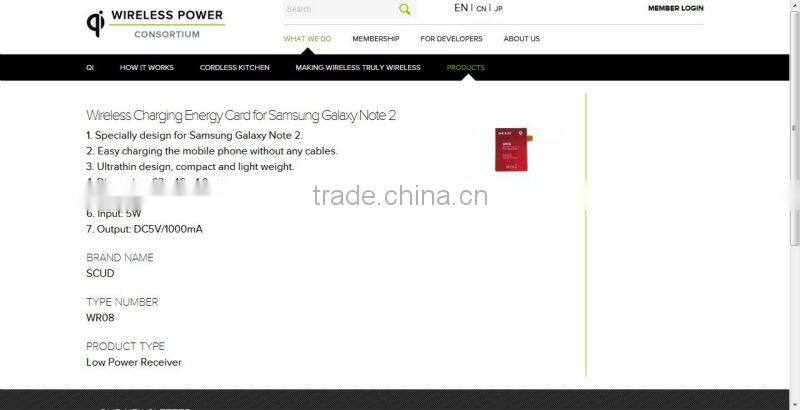

The following is the picture showed that WR08 have been filed in WPC website

How does WR08 works

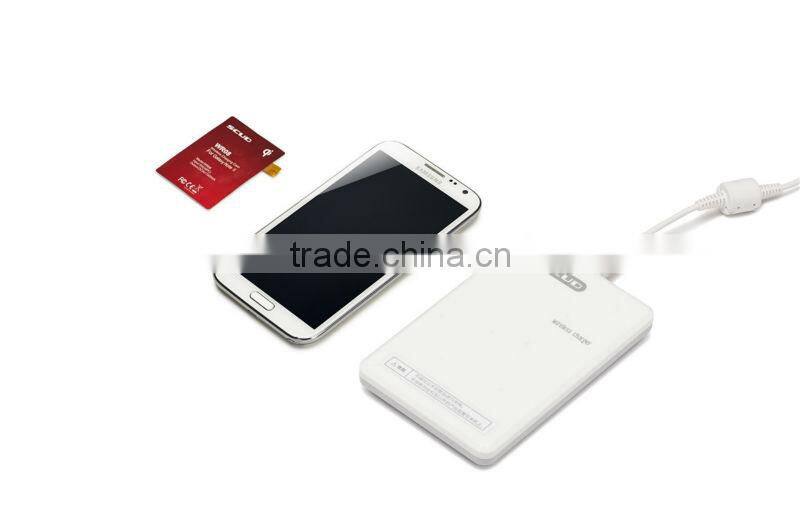

(1)  Firstly we choose WR08, Samsung Galaxy Note 2, Qi enabled wirelss charger Scud WS001 for take an example to show how to use WR08;

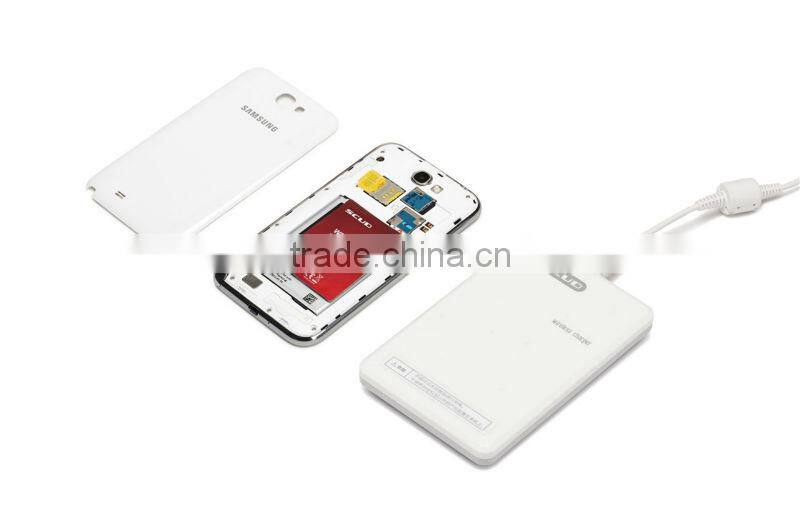

(2) Take the Note 2 back cover off;

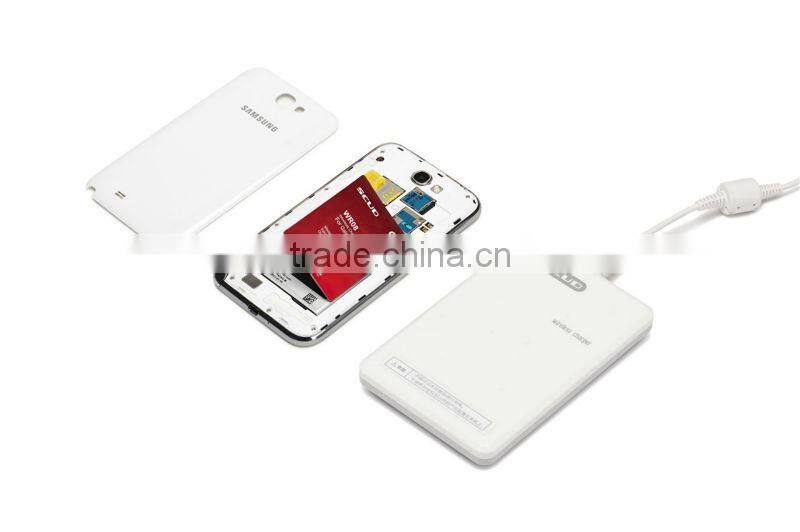

(3) Put the WR08 on top of the battery, connect the contactor of the Note 2 right middle with the contactor of the WR08;

(4) Take off the sticker label and make sure that WR08 will be connected firmly;

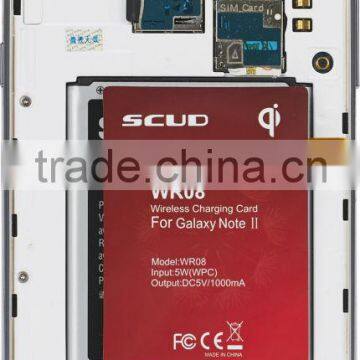

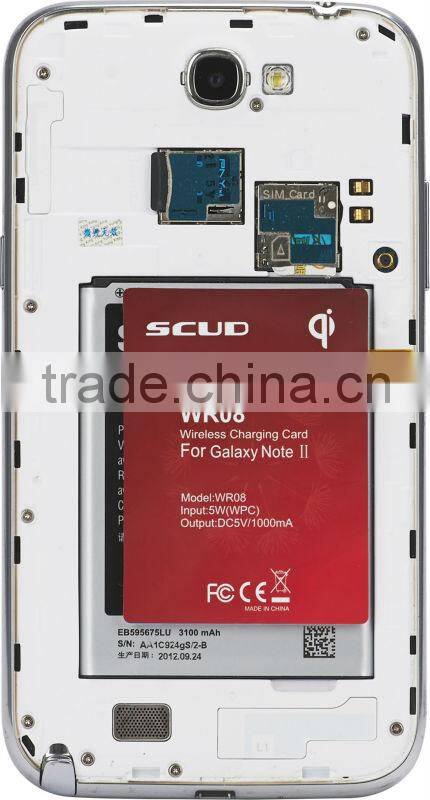

(5) You can see from the following picutre that, it is finished for the preinstallation of WR08;

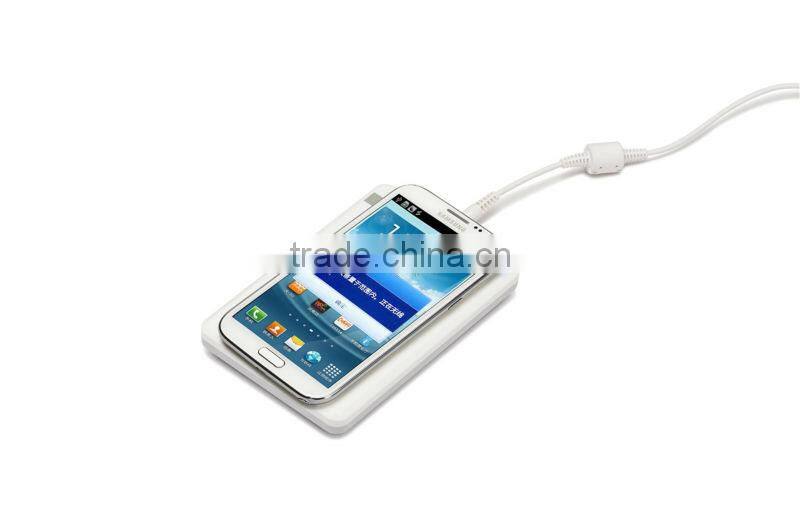

(6) Take the cover back to the cell phone, you can directely charging your Note 2 by wireless charger ( the wireless charger in the picture is WS001, Qi enabled wireless charger by Scud )

Technical Features For WR08

Input: DC5.0V
Output: DC5.0V 1.5A (Max)
Net Weight: 5g
Dimension: 63*46*1mm

Color: Red

Key Features for WR08

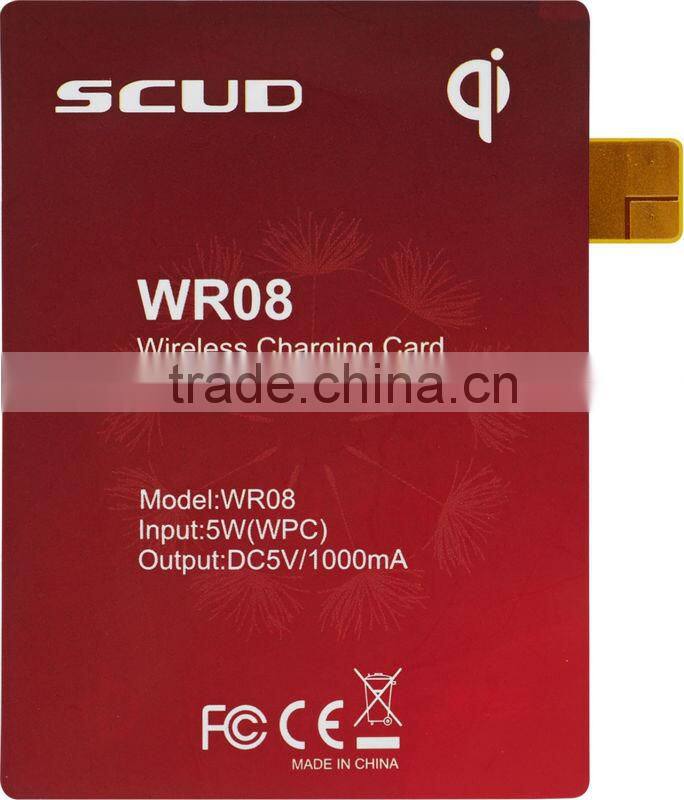

Pictures for WR08

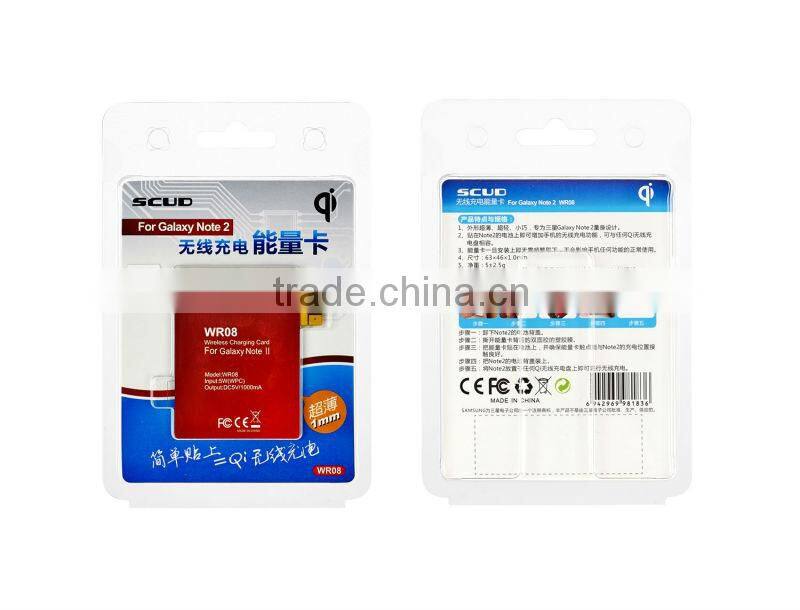

Accessory and packing for WR08
