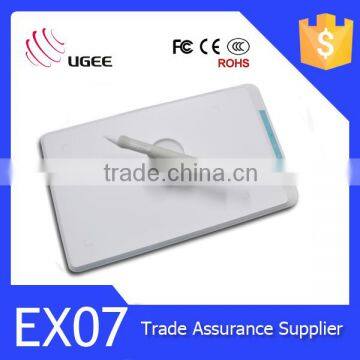

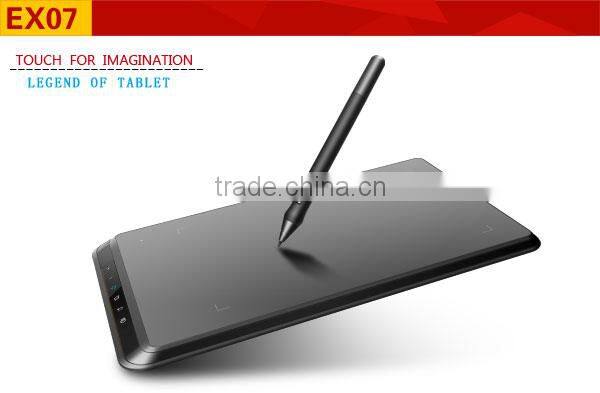

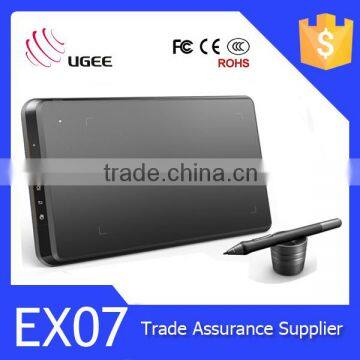

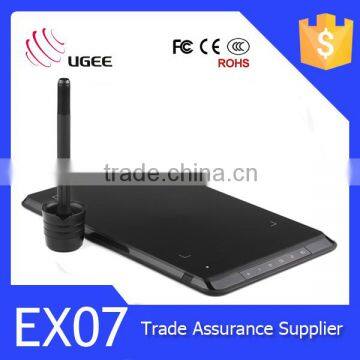

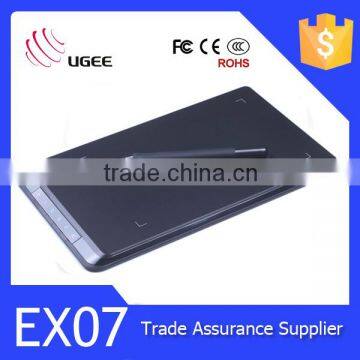

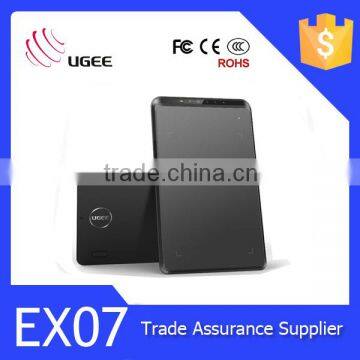

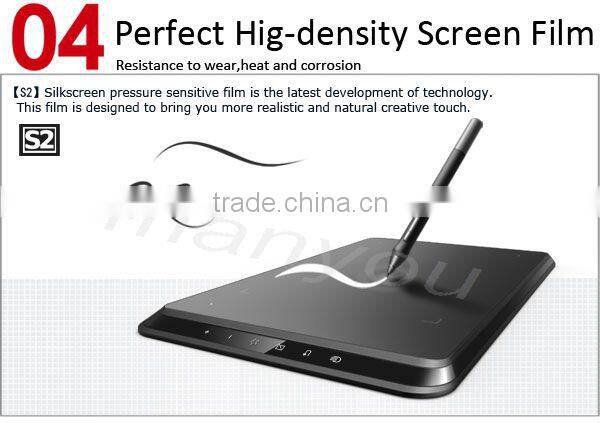

Ugee EX07 5080lpi drawing panel for artist
Parameters
Specification | |
Brand |
UGEE |
Mode |
EX07 |
Pressure sensitivity |
2048level |
Active Area |
8x5 inch |
Report Rate |
220 RPS |
Resolution |
5080 LPI |
Reading Height |
10mm |
Accuracy |
±0.01 inch |

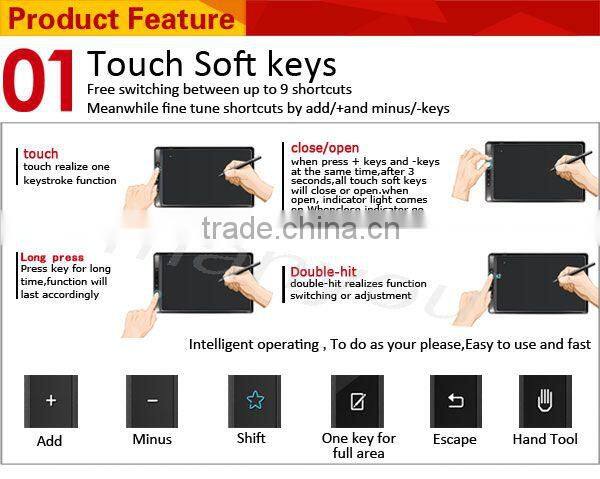

Hot Keys |
Yes |

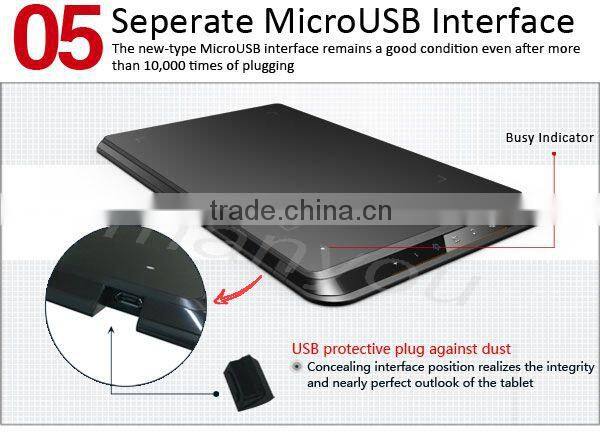

Interface Support |
USB |

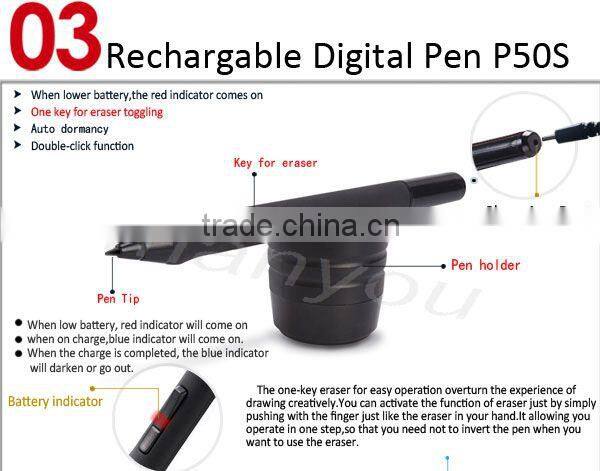

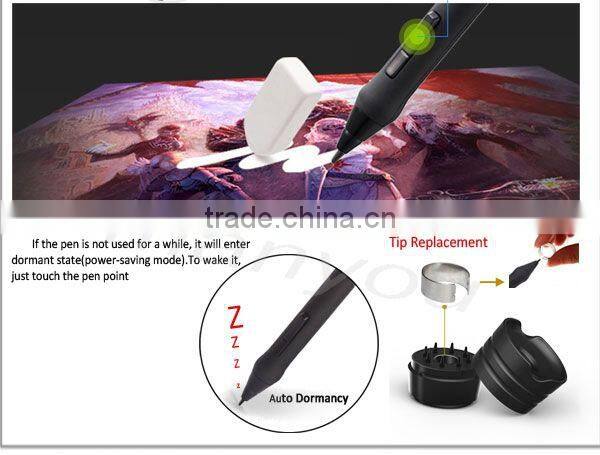

Pen |
P50S rechargable |
Pen Holder |
Yes |
Color |
Black |

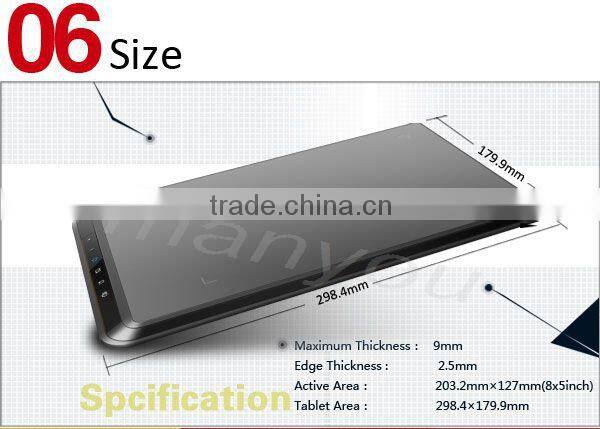

Dimension and Weight | |
Dimension Length |
298.4mm |
Dimension Width |
179.9mm |
Dimension Hight |
9mm |
Total Weight |
576g |
Accessories Included | |
Pen |
P50 rechargable |
Pen Holder |
Yes |
Installation CD |
Yes |
Replacment Tips |
8pcs |
Tip Remove Tool |
Yes |
USB Cable |
Yes (150cm) |
User English Manual |
Yes |
Battery |
No |

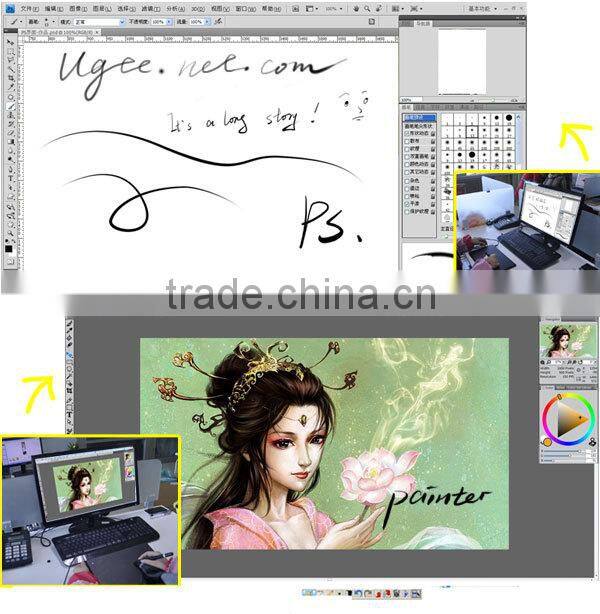

Applications
Packing Content
Graphic Tablet, Pen, Pen Tips, Pen Holder, CD Driver, USB Cable, User English Manual, Charging Line
Shippment
By DHL, By FedEx, By Air, By Ship, By UPS, By EMS, By Air Mail or choose your own forwarders
1. We can provide 24 hours online to answer your questions.
2. We have professional after-sale service waiting for supply help.
3. We will check the products itself and the package carefully before making shippment.
4. Ensure the refund without reason within 7 days.
5. The warranty period is 2 years and the lifelong software support.

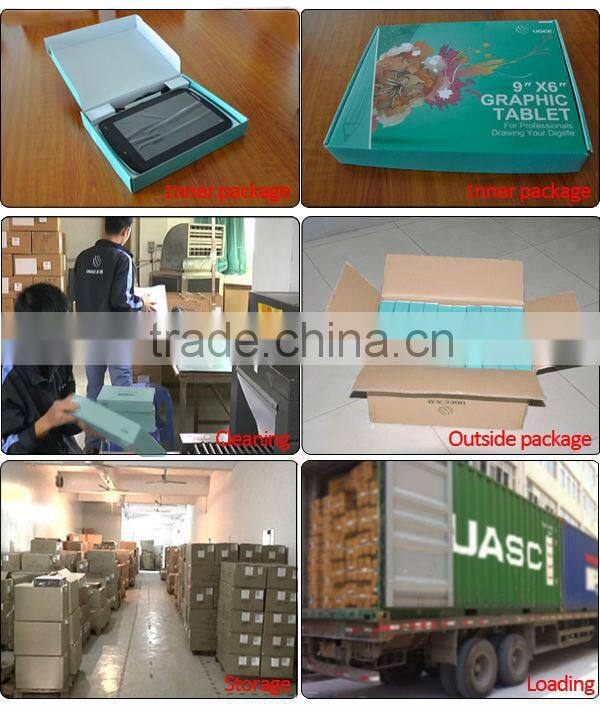

Factory Pictures

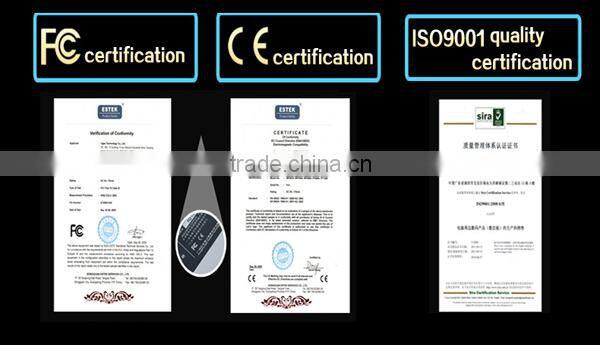

Certificates Approved
FAQ
Q. How can I get the update software?
A. You can download the new driver from our website---
1. uninstall your old driver:Click[Start][All Programs][TABLET][Uninstall]
2. Download the latest version of driver in the download section and save it into your hard disk
3. Unzip the file in a folder on your hard disk(with Windows built-in unzip utility or a program like Winzip for instance).
4. Double-click the Setup.exe in the foler where you unzippped the file.
Q. The tablet cannot work.How can I do?
A. Pls follow steps as showing below:
1. Pls pull off the tablet’s USB plug from the computer.
2. Remove the Tablet driver form the system.
3. Re-connect the Tablet’sUSB to the computer.
3.1 Check whether the tablet’s LED is blinking or not? If the LED unlighted, that means the hardware is fault.
3.2 Test your wireless digital Pen on tablet working area, if it can work as a mouse, which means the hardware is OK.If it doesn’t work, pls change the battery with a new one.
3.3 After changed a new battery for the pen, if it still not working, that means the hardware is fault.
4. You can download the latest version of driver directly from our website ---
5. After installing the new version of driver, the system will require you to restart your computer.
6. After restart your computer, on bottom right of the screen, you can find the tablet icon within there.
6.1 If you can’t find the tablet icon on the bottom right of the screen, it means the driver fail in startup.It might caused by an incompatible issue.
6.2 Check form [My computer]→[Properties]→[Hardware]→[Device Manager], if there is an exdamation mark occurs,it means the installed driver of tablet is incompatible with the windows stystem.If you have this problem, pls contact us for more service.
7. By clicking the tablet icon on the bottom right of the screen, you can test the pressure sensitivity to see whether the pen pressure function works or not.
