Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > RF Cable SMA Female to SO-239 Radio Saver Adapter Connetor

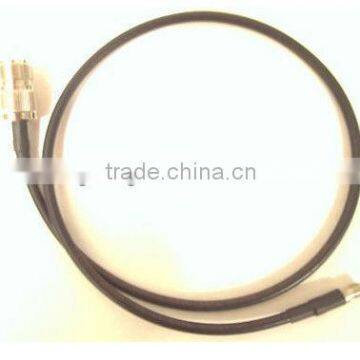

RF Cable SMA Female to SO-239 Radio Saver Adapter Connetor
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DM, DM
Model Number:
RF cable SMA female to SO-239 Radio Saver adapter connetor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cable Assembly MCX Female Test ConnectorNegotiableMOQ: 100 Pieces -
MCX Male Plug to SMA F, SMA M,RP-SMA Female, BNC F,BNC M,N F, Type N M, Type F F, UHF F, PAL TV Male ,TV Female RG316 CableUS$ 1.5 - 1.6MOQ: 100 Pieces
-
F Female to CRC9 Coaxial Connector Adapter Cable AntennaUS$ 5,000 - 10,000MOQ: 100 Pieces
-
N Plug to MMCX Plug RA Pigtail Coaxial Cable RG174US$ 5,000 - 1,000,000MOQ: 100 Pieces
-
rf Cable TNC Male Right Angle to TNC Female Right Angle Coaxial Connector AdapterNegotiableMOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
DM, DM
Model Number
RF cable SMA female to SO-239 Radio Saver adapter connetor
Type
Other, Adapter, RF cable SMA female to SO-239 Radio Saver adapter connetor
Application
Other, RF, RF
Gender
Other, Female, female
RF cable SMA female to SO-239 Radio Saver adapter connetor
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 1000V(r ms) | |||
| Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ | |
| With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | |||
| VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | ||
| With semi-rigid/flexible cable | ≤1.05+0.02F | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated or stainless steel passivated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Silicon rubber | |||||
| Crimp ferrules | Copper alloy , gold or nickel plated | |||||
