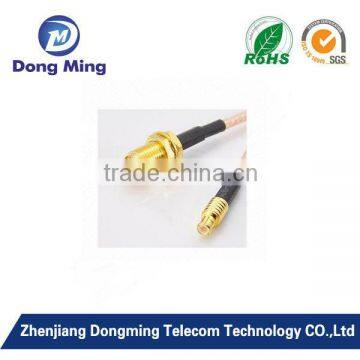

MCX Male to RP SMA Female RF Coaxial Cable Assembly

Name: MCX Male to RP SMA Female RF Coaxial Cable Assembly
Brand: DM, DM
SKU: 116726323
Availability: InStock

Zhenjiang Dongming Telecom Technology Co., Ltd.

US$ 5,000 - 100,000 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

DM, DM

Model Number:

MCX male to RP SMA female RF coaxial cable assembly

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name DM, DM

Model Number MCX male to RP SMA female RF coaxial cable assembly

Type Other, MCX, MCX male to RP SMA female RF coaxial cable assembly

Application Other, RF,auotomtive,audio,video,microwave, RF,Auomotive,Audio,Video,Microwave

Gender Other, male,female, male,female

MCX male to RP SMA female RF coaxial cable assembly

Key Performance
Temperature range		-65~+155	Insulation resistance	≥1000MΩ
Characteristic impedance		50Ω/75Ω	Dielectric Withstanding voltage	750V(r ms)
Frequency range		0~6GHz(50Ω)	VSWR	≤1.20(50Ω)
		0~1.5GHz(75Ω)		≤1.35(75Ω)
Voltage rating		335V(r ms)	Insertion loss	0.1dB at 1GHz
Contact resistance	Center conductor	≤5mΩ	Durability	500 Cycles
	Outer conductor	≤2.5mΩ
Material And Plating
Body		Brass , gold plated
Male center contacts		Brass , gold plated
Female center contacts		Beryllium copper ,gold plated
Insulators		PTFE
Gaskets		Cooper alloy,nickel or gold plated
Crimp ferrules		Beryllium copper ,gold plated
