Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > SMA Male to SO-239 Female RF Adapter Connetor
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DM, DM
Model Number:
SMA male to SO-239 female RF adapter connetor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UHF Male to BNC FemaleNegotiableMOQ: 100 Pieces -
BNC Male to RCA Male Coaxial Connector AdapterUS$ 5,000 - 1,000,000MOQ: 100 Pieces
-
RF Adapter UHF Female to UHF Mini Male Coaxial ConnectorNegotiableMOQ: 100 Pieces
-
SMB F (male Pin) Adapter Plug to F Jack 10mm(female Pin)NegotiableMOQ: 100 Pieces
-
N Female to N Female Coaxial Connector AdapterUS$ 5,000 - 100,000MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
DM, DM
Model Number
SMA male to SO-239 female RF adapter connetor
Type
Other, Adapter, SMA male to SO-239 female RF adapter connetor
Application
Other, RF, RF
Gender
Other, male /female, male/female

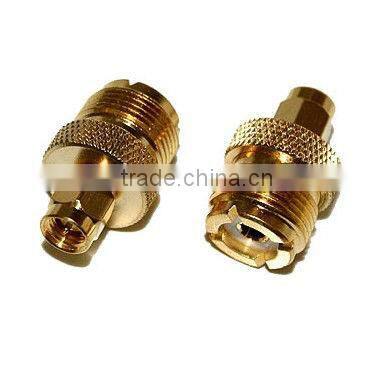

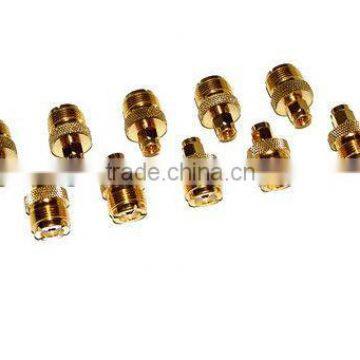

SMA male to SO-239 female RF adapter connetor
Series SMA are very popular thread coupling miniature coaxial connectors.Which have the excellent performances of high reliability,high mechanical strength,high durability,and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 1000V(r ms) | |||
| Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ | |
| With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | |||
| VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | ||
| With semi-rigid/flexible cable | ≤1.05+0.02F | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated or stainless steel passivated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Silicon rubber | |||||
| Crimp ferrules | Copper alloy , gold or nickel plated | |||||
