Bar soap making machine
Machine Configuration
No. |
Description |
Parameter |
1 |
Trio-muller
|
Power: 7.5kw Capacity:300kg/h Size: 1650*1350*1100mm |
2 |
Semi-finished product conveyor
|
Size: 4500*730*1650mm Voltage:380V,50Hz; Power:2.2kw Weight:100kg |
3 |
Double-screw vacuum plodder
|
Size:3750*900*2100mm; Power:24.5kw; Voltage:380V,50Hz; Inner stainless steel |
4 |
Vacuum pump
|
Size:500*300*400mm Power: 1.5kw
|
5 |
Pneumatic printing and cutting machine |
Power: 3kw Size: 800*300*1000mm |
6 |
Finished-products conveyor
|
Size:3000*500*1000mm Power:0.75kw; Voltage:380V.50Hz; Weight:100kg |
7 |
Plodder heater |
Power: 2.5kw |
8 |
Control box |

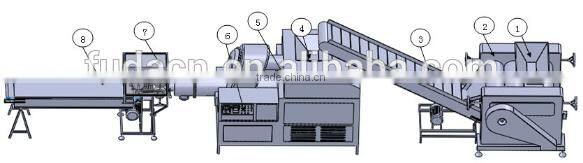

Flow Chart
1. Hopper of Trio-muller 2. Trio-muller 3. Semi-finished product conveyor 4.Hopper of Double-screw vacuum plodder 5. Double-screw vacuum plodder 6. Control box 7. Soap stamping and cutting machine 8. Finished product conveyor

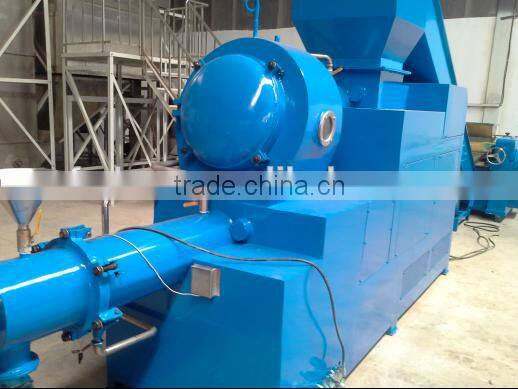

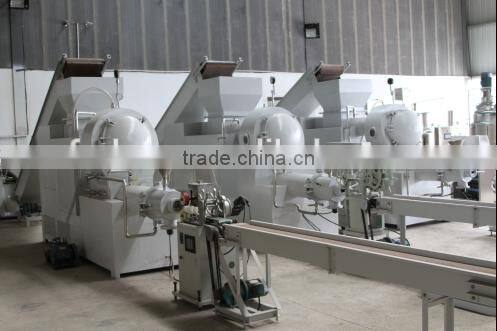

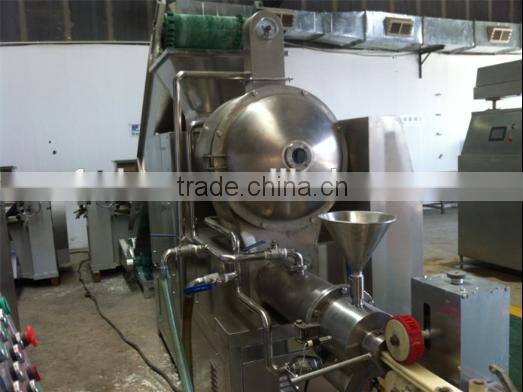

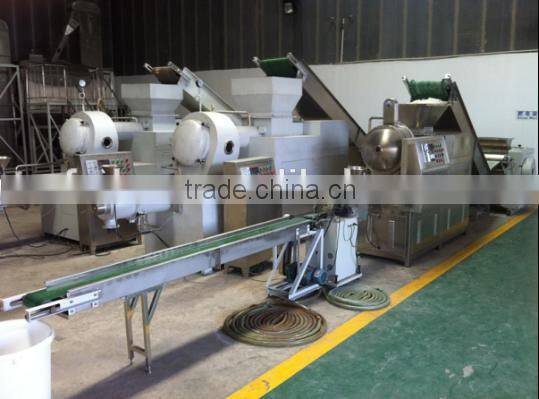

Machine Pictures
Package and Delivery
Packing:Standard export packing in wooden cases.
Delivery time: After receiving the advance payment within 10 days to complete.
Introduction of Company
Taking"Survive by quality and reputation, developing unconventionally" as the tenet, we mainly manufacture and sell washing powder machine, liquid detergent machine, soap machine, granule shaping machine, chemical drying machine,reverse osmosis water treatment device and so on. With setting up a standard chemical product inspection station, we integrate R&D, manufacture, sale, technology transfer into one entity. Our company has gained ISO International quality system certificate and CE Certificate. The products and technologies of washing powder machine and liquid detergent machine have gained more than 20 National Invention Patents, and also gained International new technological and scientific Gold Prize for twice. Our machines and technologies have been distributed to more than 20 provinces in China and has been exported to over 20 countries, like Vietnam, Kazakhstan, Malaysia, Egypt, Russia, Iran, Australia and so on.
Welcome to Your Visit and Inquiry!!
