PT-2710 (AC/DC,100KHz,60Ap-p) Current Clamp Sensor

Name: PT-2710 (AC/DC,100KHz,60Ap-p) Current Clamp Sensor
Brand: Pintech
SKU: 116715151
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Pintech

Model Number:

PT-2710

Guangzhou Dekem Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Pintech

Model Number PT-2710

Power Electronic

Usage Other, currnt testing

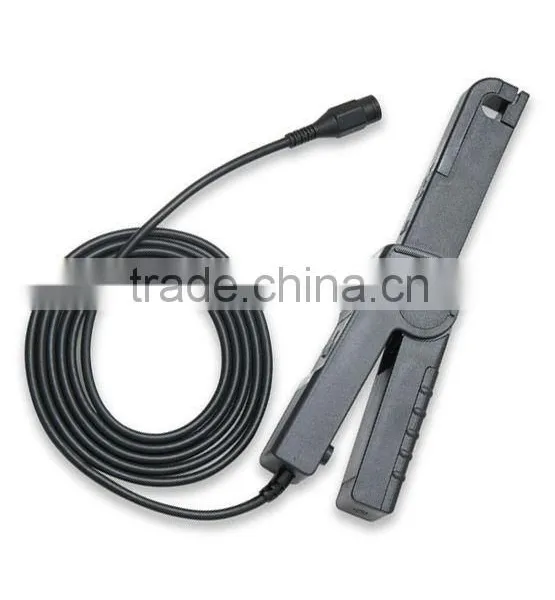

PT-2710 AC/DC current probe(current clamp)

Model Number	PT-2710
Range	5mV/A	50mV/A
Current range	0.4A~10A	1A~60A
Output signal error	2%±0.4A	2%±1A
Bandwidth(-3dB)	DC~100kHz
Phase shift	DC~65Hz:<1.5°			DC~65Hz:<1°
Load impedance	≥1MΩ and ≤100pF
Impedance	0.01Ω
Noise	2mVp-p
Switching rate	0.3V/μS		20mV/μs
Rise time	2.3μs
Measuring condition	23°C±5°C,20~75%RH,Sinusoidal frequency 48~65Hz,external magnetic field <40A/m,No load flow nearby,center testing sample, load impedance1MΩ
Operating voltage	Max.600Vrms
CMRR	Max.600Vrms
Battery	9V
Low battery indicator	with green LED light when >6.5V
Overload indicator	Red LED light indicates the over measuring current, change the range
Mechanical Specifications
Operating temperature	0~+50°C
Storage temperature	-3~+80°C
Temperature influence	Every 10°C,<0.2%
Operating relative humidity	+10°C~+30°C:85±5% relative humidity(non-condensing ) +40°C~+50°C:45±5%relative humidity(non-condensing )
Operating height	0~2000m
Max clam size	Diameter 10.3mm
Dimension	231X36X67mm
Weight	310g(not including battery)
Output	2 meters of coaxial cable, with insulation BNC connector jack at the end
