PT-2770 (AC/DC,20KHz,10A~1500Ap-p)DC Current Sensor

Name: PT-2770 (AC/DC,20KHz,10A~1500Ap-p)DC Current Sensor
Brand: pintech
SKU: 116713455
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

pintech

Model Number:

PT710-A

Guangzhou Dekem Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name pintech

Model Number PT710-A

Product Description

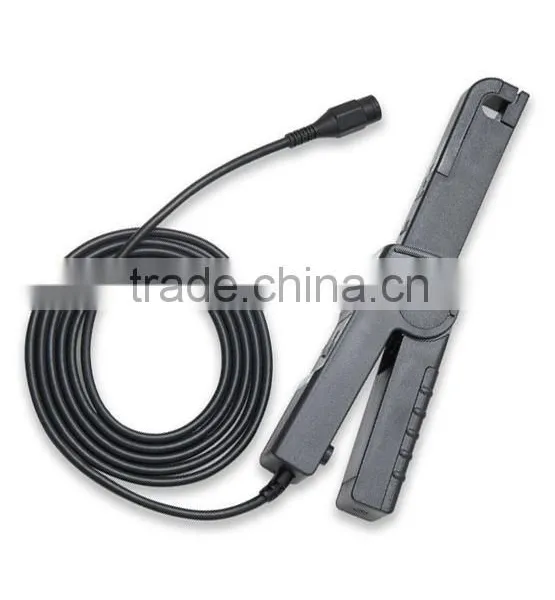

PT-2770 AC/DC current probe(Hall effect,1500A)

Product Introduction
Product Name:	PT-2770(20KHz,2A-1500Ap-p)current clamp
Short Description:	PT-2770 DC-20KHZ AC/DC current probe 10A-150Ap-p 150A-1500Ap-p

Model Number	PT-2770
Range	50mV/A				500mV/A
Current range	DC:0A~50A AC:10A~150Ap-p				DC:50A~500A AC:150A~1500Ap-p
Output signal error	3%±5mV				1500A:max.4%
Bandwidth(-3dB)	DC~20kHz
Phase shift	DC~65Hz<1.5°			DC~65Hz:<1°
Load impedance	≥1MΩ and ≤100pF
Impedance	0.01Ω
Noise	5mV
Switching rate	0.3V/μS		20mV/μs
Rise time	2.3μs
Measuring condition	23℃±5℃,20~75RH, Sinusoidal frequency 48~65Hz,external magnetic field <40A/m No load flow nearby,center testing sample, load impedance1MΩ
Operating voltage	Max.600Vrms
CMRR	Max.600Vrms
Battery	9V
Low battery indicator	with green LED light when >6.5V
Overload indicator	Red LED light indicates the over measuring current, change the range
Mechanical Specifications
Operating temperature		0~+50℃
Storage temperature		-3~+80℃
Temperature influence		Every 10℃,<0.2%
Operating relative humidity		+10℃~+30℃:85±5% relative humidity(non-condensing ) +40℃~+50℃:45±5%relative humidity(non-condensing )
Operating height		0~2000m
Max clam size		Diameter 10.3mm
Dimension		2313667mm
Weight		310g(not including battery)
Output		2 meters of coaxial cable, with insulation BNC connector jack at the end
